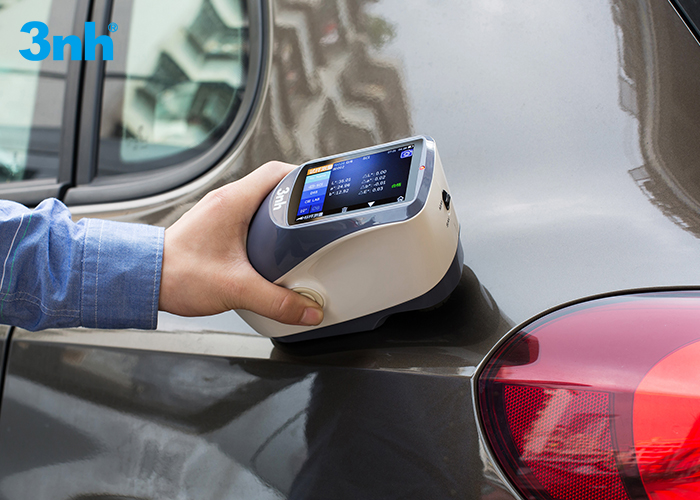

3NH Portable High-End Spectrophotometer YS3060

High accuracy / Dual aperture size / Test SCI & SCE in 1 time / Pass or Fail delta display Evaluation via software over Bluetooth or USB / UV and 18-color LED as light source

3NH-YS3060 is a handheld spectrophotometer(color meter) used for high-quality color measurement. Featuring a dual measuring aperture 8 mm and 4 mm, including SCI and SCE modes for industrial color measuring applications. The 3NH-YS3060 offers a long battery life, a 18-color lamp with UV light, and an easy-to-use portable design. The 3NH-YS3060 covers the full spectrum from 400 to 700 nm in 10 nm increments. The powerful battery allows up to 5000 daily measurements. The software supports both SCI and SCE spectral measurements at once. The unit equips a 3.5 inch TFT color touch screen and a 256 image element CMOS image array for superior usability and accuracy. Camera/illumination locating for small samples.

The high-quality processing of the spectrometer is very fast. The ability to choose aperture size and light source allows the user to discriminate between colors that may look the same. Six color space choices allow the user to choose the best space for their samples. The 256 image element double array CMOS imager allows measurement from 400 to 700 nm in 10 nm increments. The measured data can be transmitted to a computer via Bluetooth or USB. Professional analysis software is also included in the delivery contents that includes the USB cable.

Highlights

- Conforms with CIE No. 15, GB/T 3978, GB2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil;

- Spectrophotometer measures from 400 to 700 nm in 10 nm increments;

- Single and average measurements with ΔE, pass/fail display;

- High measuring accuracy and stability with 18 illumination choices and UV;

- Bluetooth 4.0 or USB cable for data transfer to included software;

- Reference memory of 2000 colors, storage for 20,000 samples;

- Includes white and black calibration standards;

- Long battery life;
- Ergonomic Design, user friendly.

Applications

Spectrophotometer (color meter) can easily implement accurate color transmission, also can be sued as a precision color testing equipment. 3nh-YS3060 series are wildly used in plastics, electronics, painting, ink, textiles, garment, Printing, and dyeing, automotive, medical,cosmetics and food industries, scientific research institutes, schools and laboratories.

Specification

Delivery Scope

1 x Spectrophotometer YS3060
1 x Li-Ion battery (Build in)
1 x Calibration standard (white and black)
1 x Charging adapter
1 x Dust cover
1 x USB cable
1 x Cleaning cloth
1 x User manual
1 x Aluminum carry case

Delivery Time

1~3 working days after payment received

Warranty

We warrant to you that any product purchased from us will, on delivery and for the following ONE ~ TWO years (depending on the product purchased), conform in all material respects with its description, be of satisfactory quality, and be reasonably fit for all the purposes for which products of that kind are commonly supplied.

Optional Accessories

Universal Test Set Replacement Sample Box, Ref. No.: 3NH-YS30-A-02

Quartz glass box for testing liquids, powders and other non-solids / Volume is 30 ml or 1.0 ounces

Universal Test Set / Ref. No.: 3NH-YS30-A-01 / For testing liquids, powders and other non-solids

Volume is 30 ml or 1.0 ounces / Includes 2 quartz sample boxes

Powder Test Box, Ref. No.: 3NH-YS30-A-03 For testing powders Volume is 30 ml or 1.0 ounces Includes 2 quartz sample boxes

Micro-printer / Ref. No.: 3NH-SP-A-01
