3NH Portable Vertical Spectrophotometer TS7600
High-quality spectrophotometer / Costom aperture size / Pass or Fail delta display
QC Managerment software over USB / UV and 18-color LED as light
source
3NH-TS7600 is a new designed vertical handheld
spectrophotometer(color meter) used for high-quality color
measurement. Featuring costom measuring aperture φ8MM flat Aperture / φ8MM Prong, you can test every sopt of your
product, and including SCI and SCE modes for industrial color measuring
applications. The 3NH-TS7600 offers a long battery life, a 18-color
lamp with UV light, and an easy-to-use portable design. The 3NH-TS7600 covers the full spectrum from 400 to 700 nm in 10 nm increments.
The powerful battery allows up to 6000 daily measurements. The
software supports both SCI and SCE spectral measurements at once.
The unit equips a 3.5" TFT LCD touch panel and a Silicon photodiode array (dual 40-element) for superior usability and accuracy. Camera / Cross line locating
for small samples.
The high-quality processing of the spectrometer is very fast. The
ability to choose aperture size and light source allows the user to
discriminate between colors that may look the same. 8 color space
choices allow the user to choose the best space for their samples.
The Silicon photodiode array (dual 40-element) allows measurement from 400 to 700 nm in 10 nm increments. The
measured data can be transmitted to a computer via Bluetooth or
USB. Professional analysis software is also included in the
delivery contents that includes the USB cable.
Highlights
- Long battery life
- USB cable for data transfer to included software
- Ergonomic Design, user friendly
- Reference memory of 1000 colors, storage for 20,000 samples
- Includes white and black calibration standards
- High measuring accuracy and stability with 18 illumination
choices and UV
- Single and average measurements with delta pass/fail display
- Spectrophotometer measures from 400 to 700 nm in 10 nm increments
- Conforms to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM
E1164,DIN5033 Teil7
Applications
Spectrophotometer (color meter) can easily implement accurate color
transmission, also can be sued as a precision color testing
equipment. 3NH-TS7700 series are wildly used in plastics, electronics, painting, ink,
textiles, garment, Printing, and dyeing, automotive,
medical,cosmetics and food industries, scientific research
institutes, schools and laboratories.
Specifications
| Model | TS7600 |
| Optical Geometry | Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing
angle) |
| SCI (specular component included)/SCE (specular component excluded)
; Include UV / excluded UV light source |
| Conforms to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM
E1164,DIN5033 Teil7 |
| Characteristic | Customized one aperture, It is used for precise color measurement
and quality control in plastic electronics, paint and ink, textile
and garment printing and dyeing, printing, ceramics and other
industries, and for fluorescent sample measurement. |
| Integrating Sphere Size | Φ40mm |
| Light Source | Combined full spectrum LED light source, UV light source |
| Spectrophotometric Mode | Flat Grating |
| Senso | Silicon photodiode array (double row 40 groups) |
| Wavelength Range | 400~700nm |
| Wavelength Interval | 10nm |
| Semiband Width | 10nm |
| Measured Reflectance Range | 0-200% |
| Measuring Aperture | Customized one aperture: MAV:Φ8mm/Φ10mm；SAV:Φ4mm/Φ5mm |
| Specular Component | SCI&SCE |
| Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,Munsell(C/2) |
| Color Difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00 |
| Other Colorimetric Index | WI(ASTM E313,CIE/ISO,AATCC,Hunter), |
| YI(ASTM D1925,ASTM 313), |
| Staining Fastness, Color Fastness, Color Strength, Opacity, |
| 8° Glossiness, |
| Observer Angle | 2°/10° |
| Illuminant | D65,A,C,D50,F2(CWF),F7(DLF),F10(TPL5),F11(TL84),F12(TL83/U30) |
| Displayed Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference
Values/Graph, PASS/FAIL Result, Color Offset |
| Measuring Time | About 1.5s (Measure SCI & SCE about 3.2s) |
| Repeatability | Spectral reflectance: MAV/SCI, Standard deviation within 0.1% (400
nm to 700 nm: within 0.2%) |
| Chromaticity value: MAV/SCI, within ΔE*ab 0.04 ( When a white
calibration plate is measured 30 times at 5 second intervals after
white calibration) |
| Inter-instrument Error | MAV/SCI, Within ΔE*ab 0.2
(Average for 12 BCRA Series II color tiles) |
| Measurement Mode | Single Measurement, Average Measurement(2-99times) |
| Locating Method | Camera Locating,stabilizer cross position |
| Dimension | L*W*H=129X76X217mm |
| Weight | Approx 600g |
| Battery | Li-ion battery, 6000 measurements within 8 hours |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Displayed Data | 3.5-inch TFT color LCD, Capacitive Touch Screen |
| Data Port | USB |
| Data Storage | Standard 1000 Pcs, Sample 20000 Pcs |
| Language | Simplified Chinese, English, traditional Chinese |
| Operating Environment | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m |
| Storage Environment | -20~50℃, 0~85%RH (no condensing) |
| Standard Accessory | Power Adapter, User Guide, PC Software(Download from office
website), USB cable, White and Black Calibration Cavity, Protective
Cover, Wrist strap, One aperture (8mm or 4mm) |
| Optional Accessory | Micro Printer, Powder Test Box |
| Notes | The specifications are subject to change without notice. |
**Specifications and design subject to change without notice.**

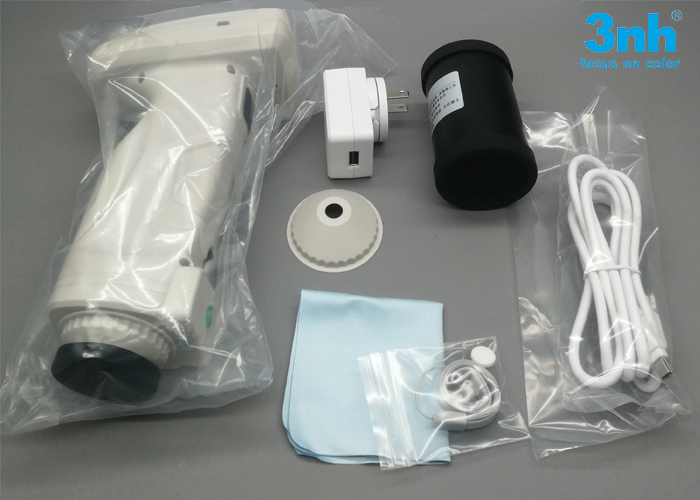

Delivery Scope
1 x Spectrophotometer TS7600
1 x Li-Ion battery (installed)
1 x Calibration standard (white and black)
1 x Charging adapter
1 x Protective cover
1 x USB cable
1 x Cleaning cloth
1x Strap
1x φ8MM Aperture
1x φ8MM Prong Aperture
1 x QC Managerment Software
1 x User manual
1 x Carry Bag
Delivery Time
1-2 days after payment received.
Warranty
We warrant to you that any Product purchased from us will, on
delivery and for the following 1 - 2 years (depending on the
Product purchased), conform in all material respects with its
description, be of satisfactory quality, and be reasonably fit for
all the purposes for which products of that kind are commonly
supplied.
Optional Accessories
Universal Test Set / Ref. No.: 3NH-YS30-A-01 / For testing liquids,
powders and other non-solids
Volume is 30 ml or 1.0 ounces / Includes 2 quartz sample boxes
Powder Test Box, Ref. No.: 3NH-YS30-A-03 For testing powders Volume
is 30 ml or 1.0 ounces Includes 2 quartz sample boxes
Micro-printer / Ref. No.: 3NH-SP-A-01
