3NH Handheld Grating Spectrophotometer YS3020
High-Accuracy / Customized aperture size / Pass or Fail delta display
Evaluation via software over Bluetooth or USB / UV and 18-color LED
as light Source

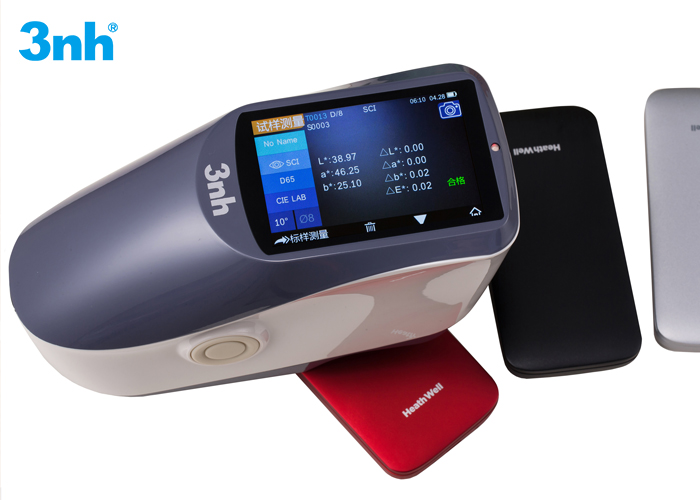

3NH-YS3020 is a handheld spectrophotometer (color meter)used for
high-quality color measurement. Customizied measuring aperture with
4 mm or 8mm or 1*3mm, and including SCI and SCE modes for
industrial color measuring applications, the 3NH-YS3020 offers a
long battery life, a 18-color lamp with UV light, and an
user-friendly portable design. The 3NH-YS3020 covers the full
spectrum from 400 to 700 nm in 10 nm increments. The powerful
battery allows up to 5000 daily measurements. The software supports
both SCI and SCE spectral measurements at once. The unit equips a
3.5 inch TFT LCD touch screen and a 256 image element CMOS image
array for superior usability and accuracy. Camera/illumination
locating for small samples.
The high-quality processing of the spectrometer is very fast. The
ability to choose aperture size and light source allows the user to
discriminate between colors that may look the same. Six color space
choices allow the user to choose the best space for their samples.
The 256 image element double array CMOS imager allows measurement
from 400 to 700 nm in 10 nm increments. The measured data can be
transmitted to a computer via Bluetooth or USB. Professional
analysis software is also included in the delivery contents that
includes the USB cable.
Highlights
- Conforms with CIE No.15,GB/T 3978, GB2893, GB/T 18833, ISO7724/1,
ASTM E1164, DIN5033 Teil
- Spectrophotometer measures from 400 to 700 nm in 10 nm increments
- High measuring accuracy and stability with 18 illumination
choices and UV
- Bluetooth 4.0 or USB cable for data transfer to included software
- Reference memory of 2000 colors, storage for 20,000 samples
- Single and average measurements with ΔE, pass/fail display
- Including white and black calibration plates
- Ergonomic design, user friendly
- Long battery life
Application
Spectrophotometer (color meter) can easily implement accurate color
transmission, also can be sued as a precision color testing
equipment. 3NH-YS3060 series are wildly used in plastics,
electronics, painting, ink, textiles, garment, Printing, and
dyeing, automotive, medical,cosmetics and food industries,
scientific research institutes, schools and laboratories
Specification
| Illumination/observation system | Reflect: di:8°,de:8°(diffused illumination,8-degree viewing angle) |
| Integrating sphere Size | Φ48mm |
| Light Source | Combined LED Light |
| Sensor | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength range | 400~700nm |
| Wavelength pitch | 10nm |
| Reflectance range | 0~200% |
| Measuring Aperture | 4mm/8mm/1*3mm |
| Color Space | CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB |
| Color difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00v,ΔE(Hunter) |
| Other Chromaticity Data | WI(ASTM E313, CIE/ISO, AATCC, Hunter), |
| YI(ASTM D1925, ASTM 313),TI(ASTM E313, CIE/ISO), |
| Metamerism Index MI,Staining Fastness,Color Fastness,Color
Strength, Opacity |
| Observer | 2°/10° |
| Illuminant | D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10,
F11, F12 |
| Display Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference
Values/Graph, PASS/FAIL Result, Color Offset |
| Measurement Time | 1.5s |
| Repeatability | Spectral Reflectance: standard deviation within 0.1%(400~700nm:
within 0.2%) |
| Colorimetric Value: Standard deviation within DeltaE*ab 0.04
(Measurement conditions: white calibration plate measured 30 times
at 5 seconds intervals after white calibration was performed.) |
| Inter Instrument Agreement | Within DeltaE*ab 0.2 (Average for 12 BCRA Series II color tiles) |
| Dimension | L*W*H=184*77*105mm |
| Weight | 600g |
| Battery | Li-ion battery. 5000 times within 8 hours. |
| Lamp Life | 5 years, more than 1.6 million measurements |
| Display Screen | TFT 3.5inch, Capacitive Touch Screen |
| Interface | USB/RS-232 |
| Data Memory | Standard 2000 Pcs, Sample 20000 Pcs |
| Operating Temperature | 0~40℃(32~104°F) |
| Storage temperature | -20~50℃(-4~122°F) |
| Standard Accessories | Power Adapter, Built-In Li-ion Battery, User Guide, PC Software,
White and Black Calibration Cavity, Dust Cover |
| Optional Accessories | Universal test set, Universal Test Set Replacement Sample Box , Powder Test Box, Micro Printer. |
| Notes | The specifications are subject to change without notice. |
Delivery Scope
1 x Spectrophotometer 3NH-YS3020
1 x LI-ion battery (Build in )
1 x Calibration standard (white and black)
1 x Charging adapter
1 x Dust cover
1 x USB cable
1 x Cleaning cloth
1 x User manual

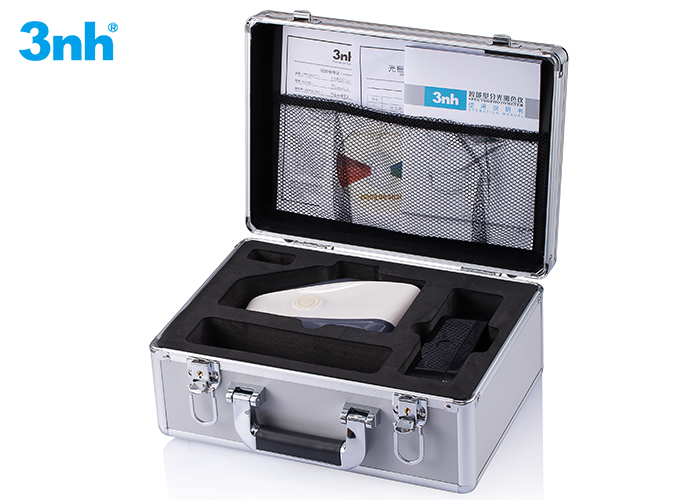

1 x aluminum carry case
Delivery Time
1-2 working days
Warranty
We warrant to you that any Product purchased from us will, on
delivery and for the following 1 - 2 years (depending on the
Product purchased), conform in all material respects with its
description, be of satisfactory quality, and be reasonably fit for
all the purposes for which products of that kind are commonly
supplied
Optional Accessories
Universal Test Set / Ref. No.: 3NH-YS30-A-01
For testing liquids, powders and other non-solids / Volume is 30 ml
or 1.0 ounces / Includes 2 quartz sample boxes
Universal Test Set Replacement Sample Box / Ref. No.: 3NH-YS30-A-02
Quartz glass box for testing liquids, powders and other non-solids
/ Volume is 30 ml or 1.0 ounces
Powder Test Box / Ref. No.: 3NH-YS30-A-03
For testing powders
Mini Printer
