3NH YS6002 Benchtop Spectrophotometer / Haze Meter
Liquid Film Glass Paint Matching Transmissive Haze Meter Pt-Co
Index And Gardner Index Meter
Liquid Film Glass Paint Matching Spectrophotometer YS6002 3nh
Transmissive Haze Meter Introduction
Liquid Film Glass Paint Matching Spectrophotometer YS6002 3nh
Transmissive Haze Meter is developed by 3nh independently with proprietary intellectua
property. This machine adopts transmittance optical geometry d/0
(diffused illumination, 0-degree viewing angle) which confirms to
CIE 15 standard. It can also realized the the optical geometry 0/0
(parallel illumination, 0-degree viewing angle).
Liquid Film Glass Paint Matching Spectrophotometer YS6002 3nh
Transmissive Haze Meter uses 360~780nm composite full spectrum LED light source (which is
closed to the spectrum of D65), and it can realize intervals 10nm
spectrum by precision concave grating and 256 Image Element CMOS
Sensor. Accordance with industry-standard, YS6002 will give the
accuracy result for the measurement of haze, transmittance,
chromaticity, color difference, WI, YI, Pt-Co Index and Gardner
index etc. It is wildly used in the field of glass processing,
plastic processing, film manufacturing, display screen processing
and packaging industry, liquid pharmaceutical analysis, laboratory
etc.
Liquid Film Glass Paint Matching Spectrophotometer YS6002 3nh
Transmissive Haze Meter Features
1. High configuration for the handware: 7 inch capacitive touch
screen; 25000 data storage ; with USD / Bluetooth data port.
2. With high optical configuration and resolution, 154mm
integrating sphere, concave grating, 256 Image Element CMOS Sensor,
dual light path;
3. Adopt 360~780nm composite full spectrum LED light source (which
is closed to the spectrum of D65), which is low power consumption
and long life time.
4. Easy realize the precision measurement for 3 kinds of light
sources A,C and D65 for haze (ASTM D1003/1044), transmittance,
Pt-Co Index and Gardner index.
5. Multiple measurement modes : quality control mode and sample
mode to meet more customers’ requirement;
6. Independent light source detector and built-in temperature
sensor will continuously monitor the change of light sources and
environment to ensure the measurement more reliable.
7. Observer angle 2/10, multiple light sources, multiple color
spaces, multiple chromaticity to meet different kinds of customers’
testing requirements.
8. Good man-machine interactive to ensure the measurement accuracy
and stable;
9. More powerful extended functions at the PC software.
Liquid Film Glass Paint Matching Spectrophotometer YS6002 3nh
Transmissive Haze Meter Technical Details
| Model | YS6002 |
| Transmittance:d/0 (diffused illumination, 0-degree viewing angle); |
| Optical Geometry | similar to CIE15 standard 0/0(parallel illumination, 0-degree
viewing angle); |
| Confirms to the standard of ASTM D1003/1044, CIE No.15, GB/T 3978,
GB |
| 2893, GB/T 18833, ASTM E308, DIN5033 Teil7 |
| wildly used in the field of glass processing, plastic processing,
film |
| Application | manufacturing, display screen processing and packaging industry,
liquid |
| pharmaceutical analysis, laboratory etc. |
| Intergrating Sphere Size | Φ154mm |
| Light Source | 360~780nm Combined LED Lamp |
| Spectral Separation | Concave-Grating |
| Device |
| Detector | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 360~780nm |
| Wavelength Pitch | 10nm |
| Half Bandwidth | 10nm |
| Reflectance Range | 0~200% |
| Measurement Aperture | Transmittance: Φ25.4mm |
| Color Spaces | CIE LAB,XYZ,Yxy,LCh,CIE LUV,Musell,s-RGB,HunterLab,βxy,DIN Lab99 |
| Color Difference | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter) |
| Formulas |
| Haze (ASTM D1003/1044),transmittance rate T, |
| Other Colorimetric Data | WI(ASTM E313,CIE/ISO,AATCC,Hunter), |
| YI(ASTM D1925,ASTM 313), |
| TI(ASTM E313,CIE/ISO), |
| Mt(Matamerism Index ), |
| Color Strength, Staining fastness,Color Strength, Opacity, |
| Pt-Co index and Gardner index |
| Observer Angle | 2°/10° |
| Illuminant | D65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12 |
| Display Data | Spectral/Values, Chromaticity Values, Color Difference
Values/Graph,Color |
| Diagram, Color Simulation, Pass/ Fall Result, Color Offset |
| Measurement Time | About 1.5s |
| Spectral transmittance: for test transmission reference white
within ΔE*ab |
| Repeatability | 0.05% (400~700nm: within 0.04%); |
| Chromaticity Data: Φ25.4mm,within ΔE*ab 0.03 (after do warm-up and |
| calibration, it is the average value to measure transmission
reference white |
| plate for 30 times at 5 second intervals) |
| Inter-instrument | Φ25.4mm,within ΔE*ab 0.15 (average value for 5 pcs standard
transmittance |
| Agreement | color plates measurement ) |
| Size | 370X300X200mm(L*W*H) |
| Weight | About 9.6kg |
| Power | DC 24V,3A Power Adapter |
| Illuminant Life Span | 5 years, more than 3,000,000 times measurement |
| Screen | 7-inch TFT Capacity Touch Screen Display |
| Interface | USB,Printing Port |
| Storage | Standard:5000; Sample:20000 |
| Language | Simplified Chinese, Traditional Chinese, English |
| Working Temperature | 0~40℃(32~104°F) |
| Storage Temperature | -20~50℃(-4~122°F) |

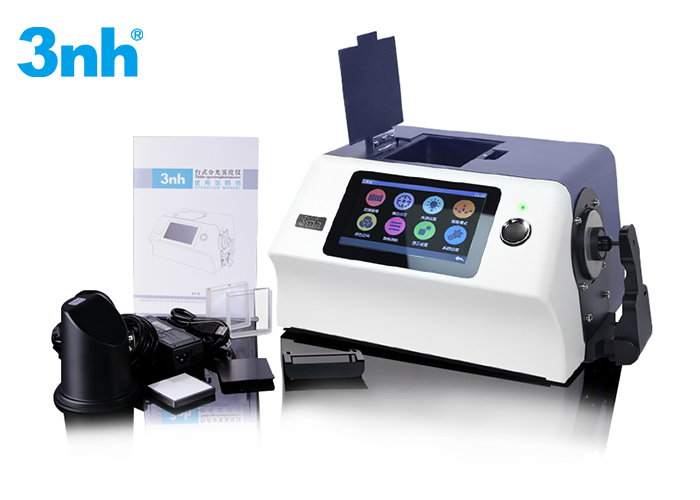

| Power Adapter, User Manual, QC software(please download from
website), |
| Standard Accessory | USB cable, reflectance white and black board, transmittance black
board, |
| 25.4mm aperture, transmissive test component |
| Optional Accessory | Miniature- printer |
| Note:The specifications are subject to change without notice. |
Liquid Film Glass Paint Matching Spectrophotometer YS6002 3nh

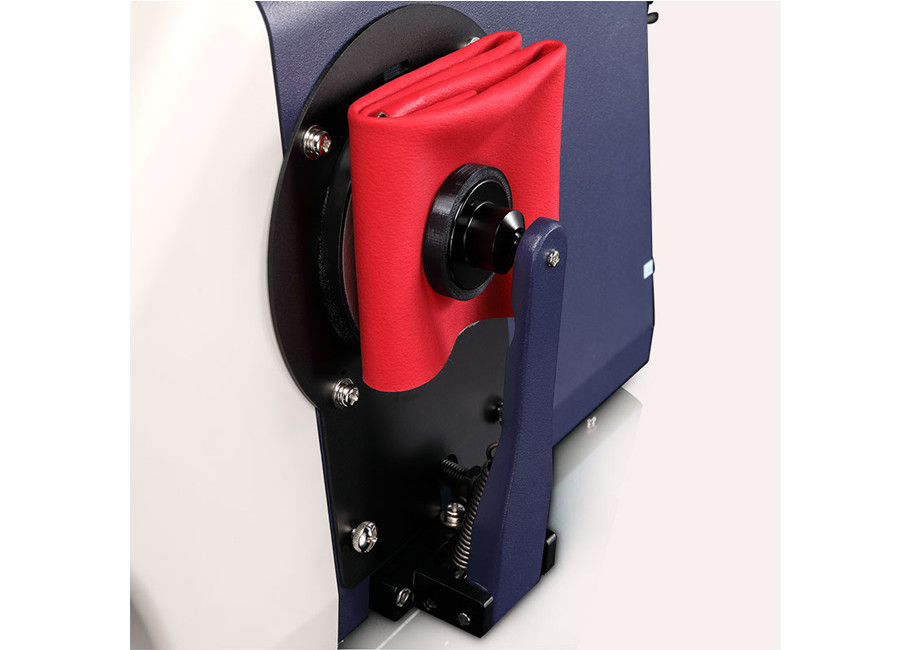

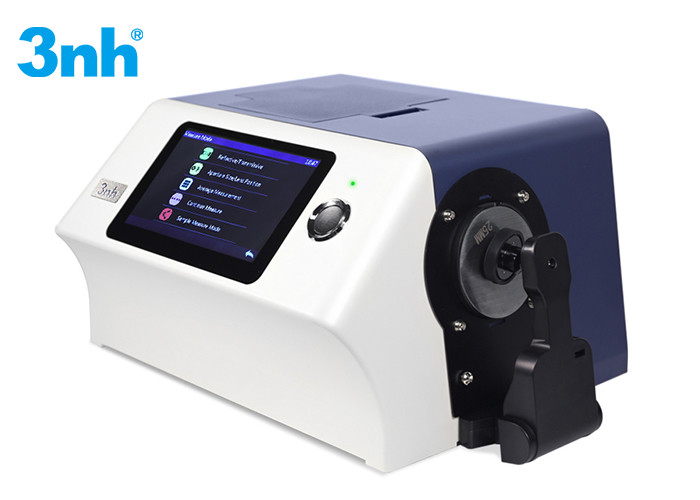

Transmissive Haze Meter Pictures
Liquid Film Glass Paint Matching Spectrophotometer YS6002 3nh
Transmissive Haze Meter Applicable Industries
Liquid Film Glass Paint Matching Spectrophotometer YS6002 3nh
Transmissive Haze Meter is widely used in the field of glass processing, plastic
processing, film manufacturing, display screen processing and
packaging industry, liquid pharmaceutical analysis, laboratory etc.
FAQ
1: Q: Is your company accept customization?
A: We accept OEM/ ODM. Any color and any logo is welcome if placed
at least 10pcs.
2: Q:Does your products have warranty?
A: YES, We offer 1 year warranty. Our policy: Is there any quality
problem, First, send the defective machine to us and you bear the
freight. Second, we send back to you free after fixed.
3: Q: After an order placed, when to deliver?
A: It depends on whether we are in stock or not. If we are,
generally we can arrange shipment in 1 days after payment. If not,
it will be decided by factory production.
4: Q: How to place an order?
A: a: send us an inquiry.
b: confirm your wanted products
c: confirm the price and freight and other details
d: finish the payment
e: we arrange the shipment
f: you got your products
