3nh New Product Color Matching Spectrophotometer TS7700 to Enhance
Traffic Sign Visibility
In order for the color rules to translate across languages and
countries, traffic sign manufacturers need to ensure color
measurement accuracy for every sign they install. Failure to
accurately match the color of the sign to the official standard set
by transportation departments could result in confusion for
drivers, and even potential road accidents. To prevent these issues
and ensure that transportation departments can always turn to you
for the most accurate, reliable traffic signs, you need to invest
in a Color Matching Spectrophotometer that is capable of measuring sign color with a great degree of
accuracy.
Brief introduction for Color Matching Spectrophotometer TS7700
TS7X series is a grating spectrophotometer that 3nh company has
spent 3 years to design and is developed by 3nh independent
intellectual property rights. The instrument adopts 1000 line
precision blazed grating as the spectroscopic element, the silicon
photocell array with large photosensitive area as the detector, the
full spectrum led with high life as the light source, and the
optical resolution is less than 10nm in the visible light range.
Under the condition of d/8 geometric optical illumination
recommended by CIE, TS7700 Color Matching Spectrophotometer can accurately measure the SCI and SCE reflectance data of samples
/ fluorescent samples, and also can accurately measure and express
various color difference formulas and color indexes in various
color spaces. With Color Matching Spectrophotometer TS7700, it can easily realize the accurate transmission of color
and can also be used as the detection equipment of accurate color
matching system.
Color Matching Spectrophotometer TS7700 is also widely used in the color quality control of various
products. TS7700 is equipped with high-end color management
software, which is connected to the computer to realize more
function expansion. The instrument has stable performance, accurate
color measurement and powerful function. It is widely used in
plastic electronics, paint and coating, textile printing and
dyeing, printing paper, automobile, medical treatment, cosmetics
and food industries, as well as scientific research institutions
and laboratories etc.
Main features of Color Matching Spectrophotometer TS7700
1. D / 8 geometric optical structure, conforming to CIE No.15, GB /
T 3978, GB 2893, GB / T 18833, ISO7724 / 1, ASTM E1164, DIN5033
Teil7;
2. Adopt combined LED light source with high life and low power
consumption, including UV / excluding UV;
3. Switchable 8mm & 4mm aperture( the flat/ tip measuring aperture
can be switched easily, which is suitable for more tested sample)
4. Dual optical path system, the optical resolution in the visible
range is less than 10nm, which can measure the SCI and SCE spectrum
of the sample at the same time;
5. Accurate spectrum and lab data, used for color matching and
accurate color transmission;
6. High hardware configuration: 3.5-inch TFT true color screen,
capacitive touch screen, 1000 line blazed grating, silicon
photocell array detector with large photosensitive area, etc;
7. USB / Bluetooth dual communication mode, wider adaptability;
8. Super dirt resistant and stable standard white calibration
board;
9. Large capacity storage space, which can store more than 30000
pieces of test data
10.2/10 standard observer's angle, multiple light source modes,
multiple surface color systems, meet various standards of
chromaticity indicators, and the needs of various customers for
color measurement;
11. Camera locating position and Stabilizer cross measurement
position;
12. PC software has powerful function expansion.
Specifications of Color Matching Spectrophotometer TS7700
| Model | TS7700 |
| Optical Geometry | Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing
angle) |
| SCI (specular component included)/SCE (specular component excluded)
; Include UV / excluded UV light source |
| Conforms to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM
E1164,DIN5033 Teil7 |
| Characteristic | Double apertures for accurate color analysis and transmission in
laboratory |
| It is used for precise color measurement and quality control in
plastic electronics, paint and ink, textile and garment printing
and dyeing, printing, ceramics and other industries, and for
fluorescent sample measurement. |
| Integrating Sphere Size | Φ40mm |
| Light Source | Combined full spectrum LED light source, UV light source |
| Spectrophotometric Mode | Flat Grating |
| Sensor | Silicon photodiode array (double row 40 groups) |
| Wavelength Range | 400~700nm |
| Wavelength Interval | 10nm |
| Semiband Width | 10nm |
| Measured Reflectance Range | 0-200% |
| Measuring Aperture | MAV:Φ8mm/Φ10mm；SAV:Φ4mm/Φ5mm |
| Specular Component | SCI&SCE |
| Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99
Munsell(C/2) |
| Color Difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter) |
| Other Colorimetric Index | WI(ASTM E313,CIE/ISO,AATCC,Hunter), |
| YI(ASTM D1925,ASTM 313), |
| Metamerism Index MI, |
| Staining Fastness, Color Fastness, Color Strength, Opacity, |
| 8° Glossiness,555 tone classification |
| Observer Angle | 2°/10° |
| Illuminant | D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30) |
| Displayed Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference
Values/Graph, PASS/FAIL Result, Color Offset |
| Measuring Time | About 1.5s (Measure SCI & SCE about 3.2s) |
| Repeatability | Spectral reflectance: MAV/SCI, Standard deviation within 0.08% (400
nm to 700 nm: within 0.18%) |
| Chromaticity value: MAV/SCI, within ΔE*ab 0.02 ( When a white
calibration plate is measured 30 times at 5 second intervals after
white calibration) |
| Inter-instrument Error | MAV/SCI, Within ΔE*ab 0.15
(Average for 12 BCRA Series II color tiles) |
| Measurement Mode | Single Measurement, Average Measurement(2-99times) |
| Locating Method | Camera Locating,stabilizer cross position |
| Dimension | L*W*H=129X76X217mm |
| Weight | Approx 600g |
| Battery | Li-ion battery, 6000 measurements within 8 hours |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Displayed Data | 3.5-inch TFT color LCD, Capacitive Touch Screen |
| Data Port | USB, Bluetooth 4.2 |
| Data Storage | Standard 1000 Pcs, Sample 30000 Pcs |
| Language | Simplified Chinese, English, traditional Chinese |
| Operating Environment | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m |
| Storage Environment | -20~50℃, 0~85%RH (no condensing) |
| Standard Accessory | Power Adapter, User Guide, PC Software(Download from office
website), USB cable, White and Black Calibration Cavity, Protective
Cover, Wrist strap, 8mm flat aperture, 8mm tip aperture, 4mm flat
aperture, 4mm tip aperture |
| Optional Accessory | Micro Printer, Powder Test Box |
| Notes | The specifications are subject to change without notice. |
Applications of Color Matching Spectrophotometer TS7700
3nh New Product Color Matching Spectrophotometer TS7700 Textiles
Illuminant Metamerism Detecting Instrument is used for precise color measurement and quality control in Traffic Sign, plastic electronics, paint and ink, textiles and garment printing
and dyeing, printing, ceramics and other industries, and for
fluorescent sample measurement.

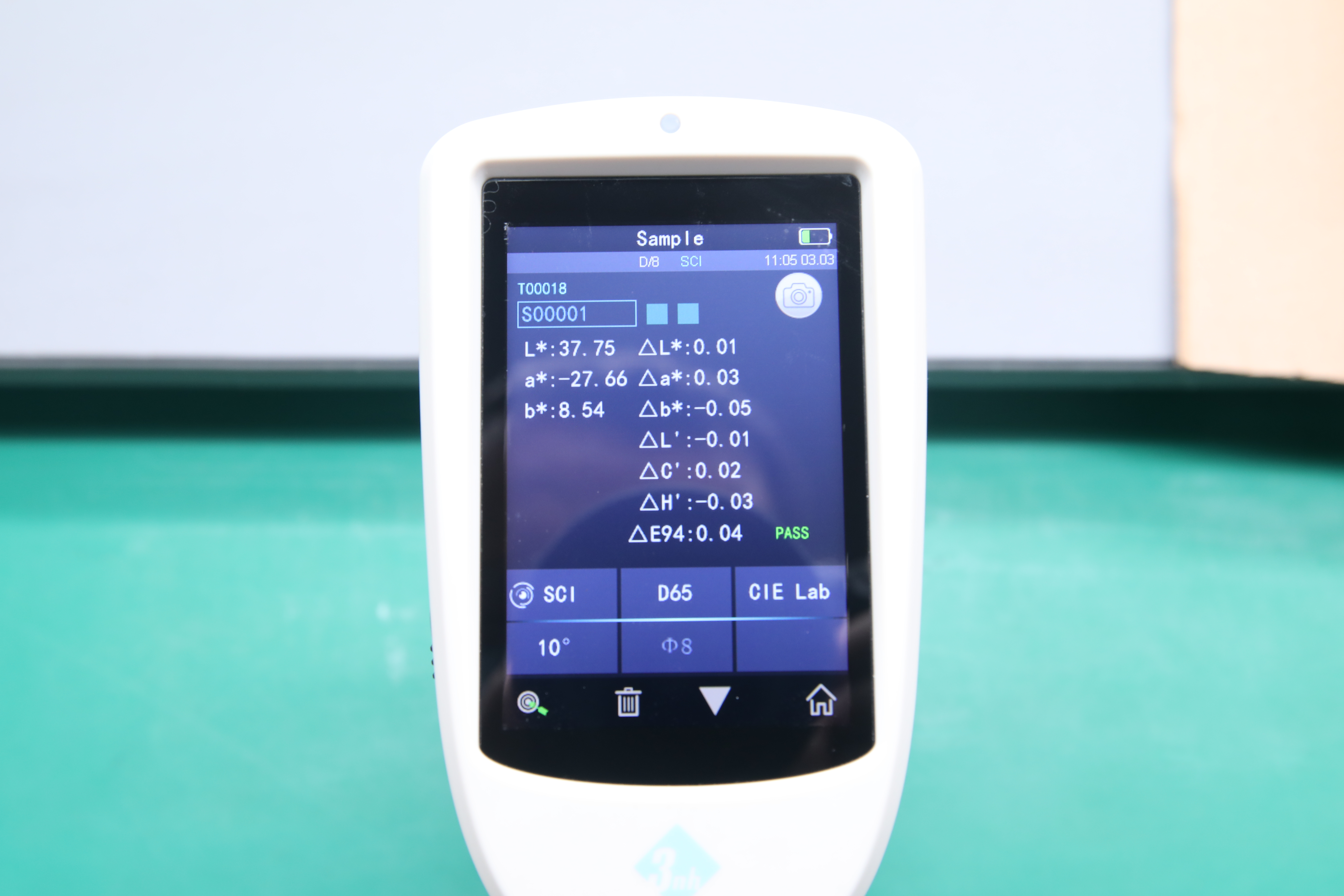

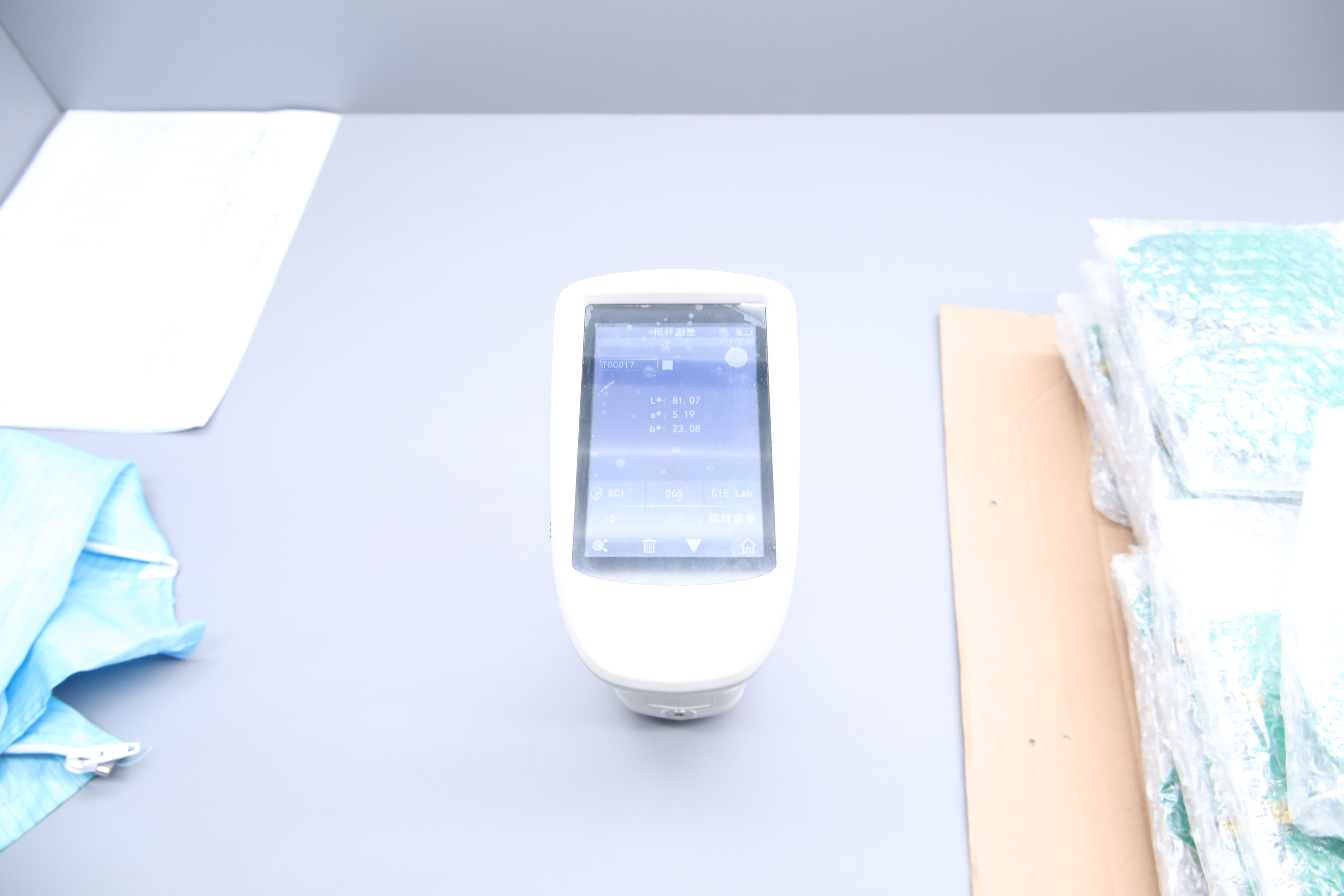

More Pictures for Color Matching Spectrophotometer TS7700
