1*3mm Aperture Handheld Colorimeter Spectrophotometer YS3020 used
in Plating, Automotive Interior Parts Color Matching
1*3mm Aperture Handheld Colorimeter Spectrophotometer YS3020 Brief
Description
Multi-illuminants, Customizable Aperture, SCI&SCE, Bluetooth
Comm, High Precision.
Comply with CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724/1,ASTM
E1164,DIN5033 Teil7, 1*3mm Aperture Handheld Colorimeter Spectrophotometer YS3020 features SCI/SCE, USB / bluetooth, customers can choose 8mm / 4mm /
1*3mm aperture, etc. It has high accuracy 0.04 based on white
calibration plate measured 30 times at 5 seconds intervals after
white calibration was performed.
Main Features of 1*3mm Aperture Handheld Colorimeter Spectrophotometer YS3020
A. Perfect combination of beautiful appearance and the human body
mechanics structural design;
B. D/8 geometrical optics, conforms with CIE No.15,GB/T
3978,GB2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil
C. Use long life and low power consumption combined LED light
source
D. Φ4mm/Φ8mm/1X3mm aperture
E. Measure sample spectra, accurate Lab data , can be used in color
matching and accurate color transmission;
F. High electronic hardware configuration: 3.5-inch TFT color
LCD,Capacitive Touch Screen, concave grating, 256 Iimage Element
Double Arrays CMOS Image Sensor;
G. USB/Bluetooth 2.1, dual mode, widely useful;
H. Super stain-resistant and stable standard white calibration
plate;
I. Large capacity storage space, over 20,000 measurement data;
J. Two standard observer angles, a variety of illuminant, a variety
of color indexes, conforms with a variety of standard colorimetric
data, meet a variety of customers' demand for color measurement;
K. Camera Locating Function, better position;
l. PC software has a powerful function extension.
Specification of 1*3mm Aperture Handheld Colorimeter Spectrophotometer YS3020
| Model Items | YS3020 |
| Optical Geometry | Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing
angle) |
| Integrating Sphere Size | 48mm |
| Light Source | Combined LED Light |
| Spectrophotometric Mode | Concave Grating |
| Sensor | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 400-700nm |
| Wavelength Interval | 10nm |
| Semiband Width | 10nm |
| Measured Reflectance Range | 0-200% |
| Measuring Aperture | Customized Aperture: 8mm/4mm/1×3mm |
| Specular Component | SCI&SCE |
| Color Space | CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB, s-RGB |
| Color Difference Formula | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter) |
| Other Colorimetric Index | WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313),TI(ASTM E313, CIE/ISO), Metamerism Index MI, Staining Fastness, Color Fastness, Color
Strength, Opacity |
| Observer Angle | 2°/10° |
| Illuminant | D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30) |
| Displayed Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference
Values/Graph, PASS/FAIL Result, Color Offset |
| Measuring Time | About 1.5s (About 2.6s for testing SCI and SCE simultaneously ) |
| Repeatability | MAV/SCI: ΔE*≤0.04 |
| Inter-instrument Error | MAV/SCI: ΔE*≤0.2 |
| Measurement Mode | Single Measurement, Average Measurement |
| Locating Method | Camera View Finder Locating |
| Battery | Li-ion battery. 5000 measurements within 8 hours |
| Dimension | L*W*H=184*77*105mm |
| Weight | 600g |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display | 3.5-inch TFT color LCD, Capacitive Touch Screen |
| Data Port | USB, Bluetooth 4.0 |
| Data Storage | Standard 1000 Pcs, Sample 20000 Pcs |
| Language | English, Chinese |
| Operating Environment | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m |
| Storage Environment | -20~50℃, 0~85%RH (no condensing) |
| Standard Accessory | Power Adapter, Built-In Li-ion Battery, User Guide, PC Software,
White and Black Calibration Cavity, Dust Cover |
| Optional Accessory | Micro Printer, Powder Test Box,Universal Test Component |
| Notes: The specifications are subject to change without notice. |
Application Industry
1*3mm Aperture Handheld Colorimeter Spectrophotometer YS3020 can easily achieve color transferring , and be used as a precision
instrument for color matching system. It's widely used in plastics,
electronics, painting, ink, textile and garment, printing and
dyeing, printing paper, automotive, medical, cosmetics and food
industries, scientific research institutes, schools and
laboratories.

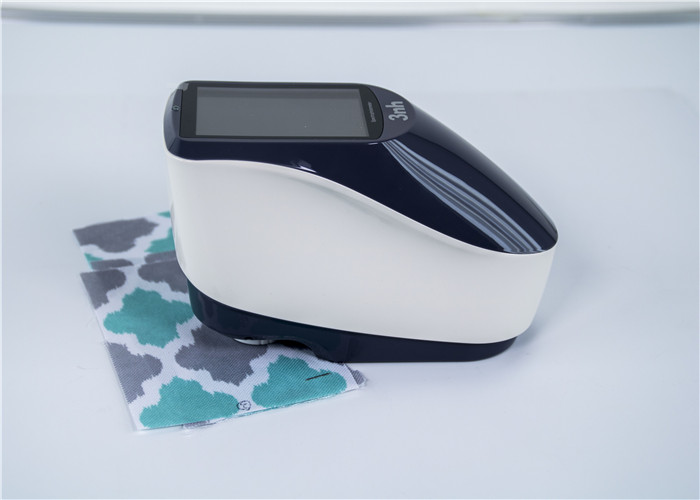

1*3mm Aperture Handheld Colorimeter Spectrophotometer YS3020 Images
Warranty
All color spectrophotometer and colorimeters have one year warranty
from the purchase date. If it has something wrong during warranty,
you can send it back to us. The buyer pays for the returning
shipping cost and we will pay for the sending shipping cost.
