3nh Color Measurement Equipment TS7600 for Linen, Cotton, Terry,
Synthetics, and Other Towel Cloths Color Consistency
For towel manufacturers, the importance of towels in everyday life
is overwhelmingly good news. Towels are big business. Demand for
towels is consistent; as a staple item, towels are purchased at a
relatively stable rate. The downside, if it can be called that, is
that to compete, towel manufacturers must produce enormous amounts
of towels for very large customers. Whether their towels are sold
via big-box retail stores such as Target or Walmart, online via
Amazon or through national and regional distributors to smaller
stores, towel manufacturers must be able to produce huge amounts of
identical towels. As such, strict quality control measures are
essential throughout the manufacturing process. When it comes to
color, spectrophotometers play a central part in ensuring
consistency.
Brief introduction for 3nh Color Measurement Equipment TS7600
3nh Color Measurement Equipment TS7600 is a grating spectrophotometer that 3nh company has spent 3 years
to design and is developed by 3nh independent intellectual property
rights. The instrument adopts 1000 line precision blazed grating as
the spectroscopic element, the silicon photocell array with large
photosensitive area as the detector, the full spectrum led with
high life as the light source, and the optical resolution is less
than 10nm in the visible light range.
Under the condition of d/8 geometric optical illumination
recommended by CIE, 3nh Color Measurement Equipment TS7600 can accurately measure the SCI and SCE reflectance data of samples
/ fluorescent samples, and also can accurately measure and express
various color difference formulas and color indexes in various
color spaces. With 3nh Color Measurement Equipment TS7600, it can easily realize the accurate transmission of color and can
also be used as the detection equipment of accurate color matching
system.
3nh Color Measurement Equipment TS7600 is also widely used in the color quality control of various
products. TS7600 is equipped with high-end color management
software, which is connected to the computer to realize more
function expansion. The instrument has stable performance, accurate
color measurement and powerful function. It is widely used in
plastic electronics, paint and coating, textile printing and
dyeing, printing paper, automobile, medical treatment, cosmetics
and food industries, as well as scientific research institutions
and laboratories etc.
Main features of 3nh Color Measurement Equipment TS7600
1. D / 8 geometric optical structure, conforming to CIE No.15, GB /
T 3978, GB 2893, GB / T 18833, iso7724 / 1, ASTM e1164, din5033
teil7;
2. Adopt combined LED light source with high life and low power
consumption, excluding UV;
3. Customized one 8mm or 4mm aperture ( the flat/ tip measuring
aperture can be switched easily, which is suitable for more tested
sample)
4. Dual optical path system, the optical resolution in the visible
range is less than 10nm, which can measure the SCI and SCE spectrum
of the sample at the same time;
5. Accurate spectrum and lab data, used for color matching and
accurate color transmission;
6. High hardware configuration: 3.5-inch TFT true color screen,
capacitive touch screen, 1000 line blazed grating, silicon
photocell array detector with large photosensitive area, etc;
7. USB interface,convenient for expansion of various functions;
8. Super dirt resistant and stable standard white calibration
board;
9. Large capacity storage space, which can store more than 30000
pieces of test data
10. 2/10 standard observer's angle, multiple light source modes,
multiple surface color systems, meet various standards of
chromaticity indicators, and the needs of various customers for
color measurement;
11. Camera locating position and Stabilizer cross measurement
position;
12. PC software has powerful function expansion;
Specifications of 3nh Color Measurement Equipment TS7600
| Model | TS7600 |
| Optical Geometry | Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing
angle) |
| SCI (specular component included)/SCE (specular component excluded)
;exclude UV light source |
| Conforms to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM
E1164,DIN5033 Teil7 |
| Characteristic | Customized one aperture, It is used for precise color measurement
and quality control in plastic electronics, paint and ink, textile
and garment printing and dyeing, printing, ceramics and other
industries, and for fluorescent sample measurement. |
| Integrating Sphere Size | Φ40mm |
| Light Source | Combined full spectrum LED light source |
| Spectrophotometric Mode | Flat Grating |
| Sensor | Silicon photodiode array (double row 40 groups) |
| Wavelength Range | 400~700nm |
| Wavelength Interval | 10nm |
| Semiband Width | 10nm |
| Measured Reflectance Range | 0-200% |
| Measuring Aperture | Customized one aperture: MAV:Φ8mm/Φ10mm；SAV:Φ4mm/Φ5mm |
| Specular Component | SCI&SCE |
| Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,Munsell(C/2) |
| Color Difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00 |
| Other Colorimetric Index | WI(ASTM E313,CIE/ISO,AATCC,Hunter), |
| YI(ASTM D1925,ASTM 313), |
| Staining Fastness, Color Fastness, Color Strength, Opacity, |
| 8° Glossiness, |
| Observer Angle | 2°/10° |
| Illuminant | D65,A,C,D50,F2(CWF),F7(DLF),F10(TPL5),F11(TL84),F12(TL83/U30) |
| Displayed Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference
Values/Graph, PASS/FAIL Result, Color Offset |
| Measuring Time | About 1.5s (Measure SCI & SCE about 3.2s) |
| Repeatability | Spectral reflectance: MAV/SCI, Standard deviation within 0.1% (400
nm to 700 nm: within 0.2%) |
| Chromaticity value: MAV/SCI, within ΔE*ab 0.04 ( When a white
calibration plate is measured 30 times at 5 second intervals after
white calibration) |
| Inter-instrument Error | MAV/SCI, Within ΔE*ab 0.2
(Average for 12 BCRA Series II color tiles) |
| Measurement Mode | Single Measurement, Average Measurement(2-99times) |
| Locating Method | Camera Locating,stabilizer cross position |
| Dimension | L*W*H=129X76X217mm |
| Weight | Approx 600g |
| Battery | Li-ion battery, 6000 measurements within 8 hours |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Displayed Data | 3.5-inch TFT color LCD, Capacitive Touch Screen |
| Data Port | USB |
| Data Storage | Standard 1000 Pcs, Sample 20000 Pcs |
| Language | Simplified Chinese, English, traditional Chinese |
| Operating Environment | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m |
| Storage Environment | -20~50℃, 0~85%RH (no condensing) |
| Standard Accessory | Power Adapter, User Guide, PC Software(Download from office
website), USB cable, White and Black Calibration Cavity, Protective
Cover, Wrist strap, One aperture (8mm or 4mm) |
| Optional Accessory | Micro Printer, Powder Test Box |
| Notes | The specifications are subject to change without notice. |
Applications of 3nh Color Measurement Equipment TS7600
3nh Color Measurement Equipment TS7600 is used for precise color measurement and quality control in
plastic electronics, paint and ink, textiles and garment printing
and dyeing, printing, ceramics and other industries, and for
fluorescent sample measurement.

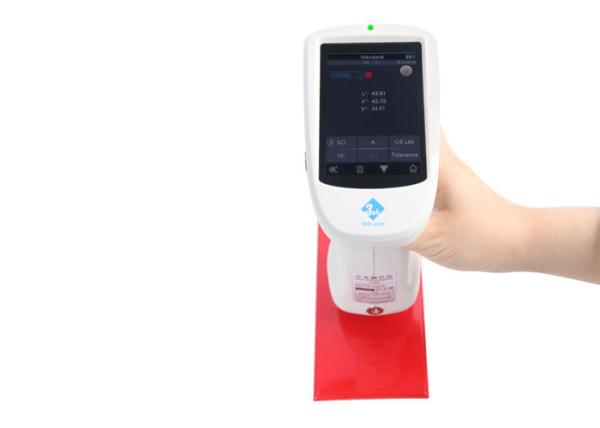

More Pictures for 3nh Color Measurement Equipment TS7600
