3nh Handheld Colorimeter Portable Spectrophotometer NS810 used in
Plating, Automotive Interior Parts Color Matching

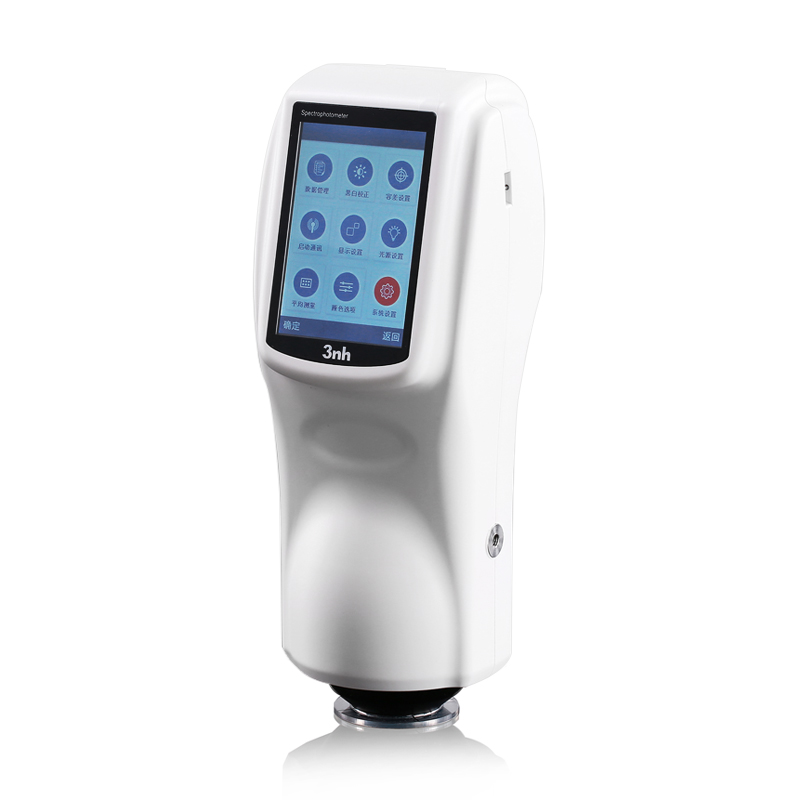

Product Description of 3nh Handheld Colorimeter Portable Spectrophotometer NS810
3nh Handheld Colorimeter Portable Spectrophotometer NS810 is developed by 3nh with independent intellectual property rights.
It features with stable performance, precise measurement and
powerful functions in the leading position of the same industry.
It can measure reflectance spectrum and other color index
precisely. 3nh Handheld Colorimeter Portable Spectrophotometer NS810 not only can help to perform color matching and color management
studies, but also can control product quality management
accurately. The instrument is equipped with high-end color
management software which can connect PC to achieve more extension
functions.
Advantages of 3nh Handheld Colorimeter Portable Spectrophotometer NS810
1. Aesthetic design perfectly combined with ergonomics structure.
2. 45/0 geometrical optics structure, comply with CIE, ISO, ASTM,
DIN standard.
3. 3.5 inch large capacitive touch screen.
4. Two standard observer perspectives, multiple light sources
modes, a variety of color systems.
5. The repeatability ΔE*ab is within 0.04, the errors between each
instrument ΔE* ab is less than 0.2.
6. Large capacity storage, can save more than 10000 data.
7. PC software with powerful extension functions.
8. High hardware configuration with a number of innovative
technologies.
9. Oversized integrating sphere, more effective homogenization ray
of lights and precise measurement.
10. 15° oblique angle screen, more in line with the human eye
observation.
Application for 3nh Handheld Colorimeter Portable Spectrophotometer NS810
3nh Handheld Colorimeter Portable Spectrophotometer NS810 is widely used in Tobacco,Tobacco Leaf Screening, Coating, Plastic, Ink, Textile,
Food, Printing, Packaging, Paper, Medicine, Automobile, Medical,
Metal, Cosmetics, Ceramics, Paint, Marble, Aluminum, Leather,
Hardware, Wood Products, Building Decoration Materials, Coating
Cloth, Other Non-Metallic Materials, Plating, Automotive Interior
Parts, Toys, Printing and Dyeing, Pigments, Chemicals, Footwear,
Spraying, Shoe Materials, Furniture, Electrical
Appliances,Scientific Research Institutions, Laboratories, Etc.

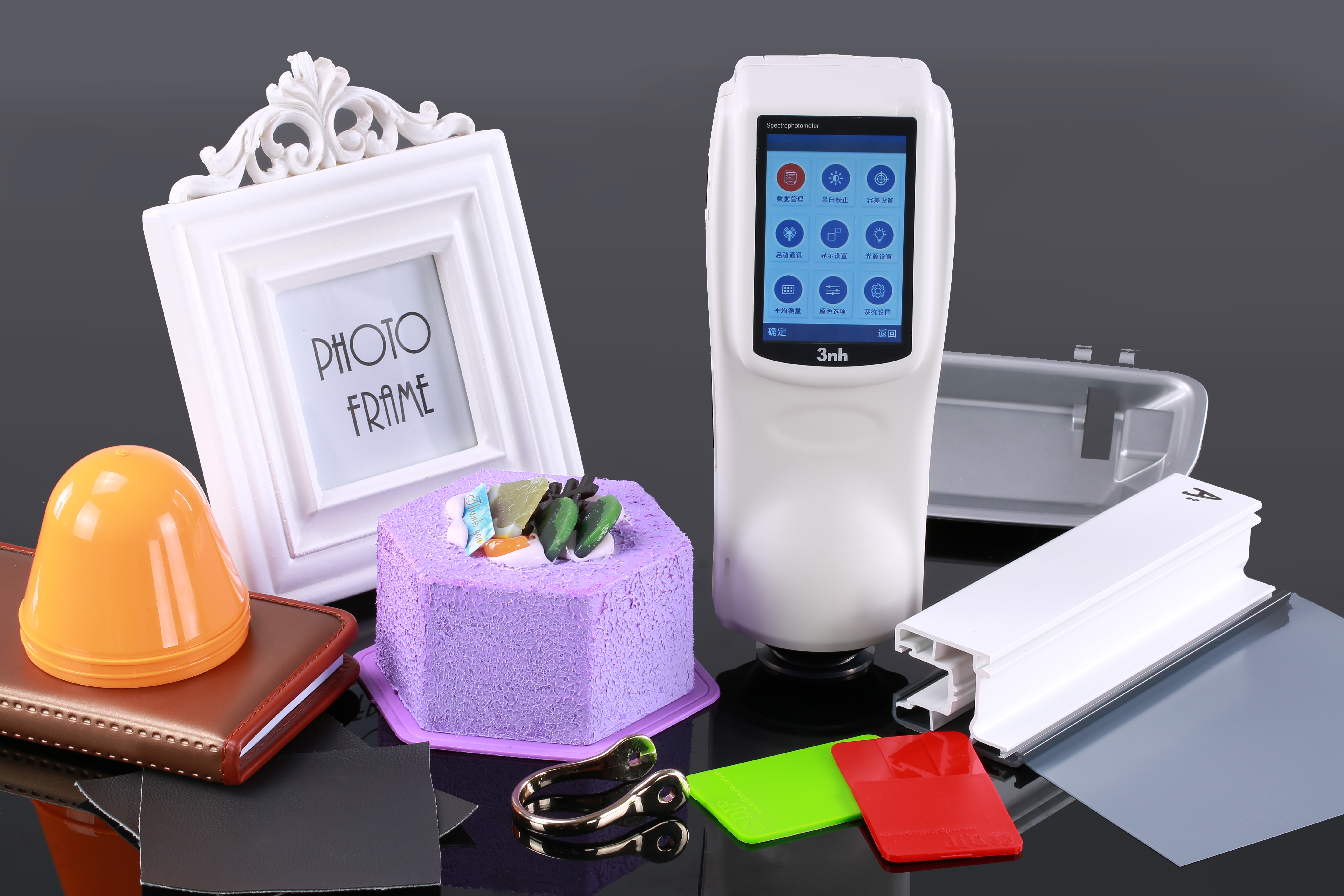

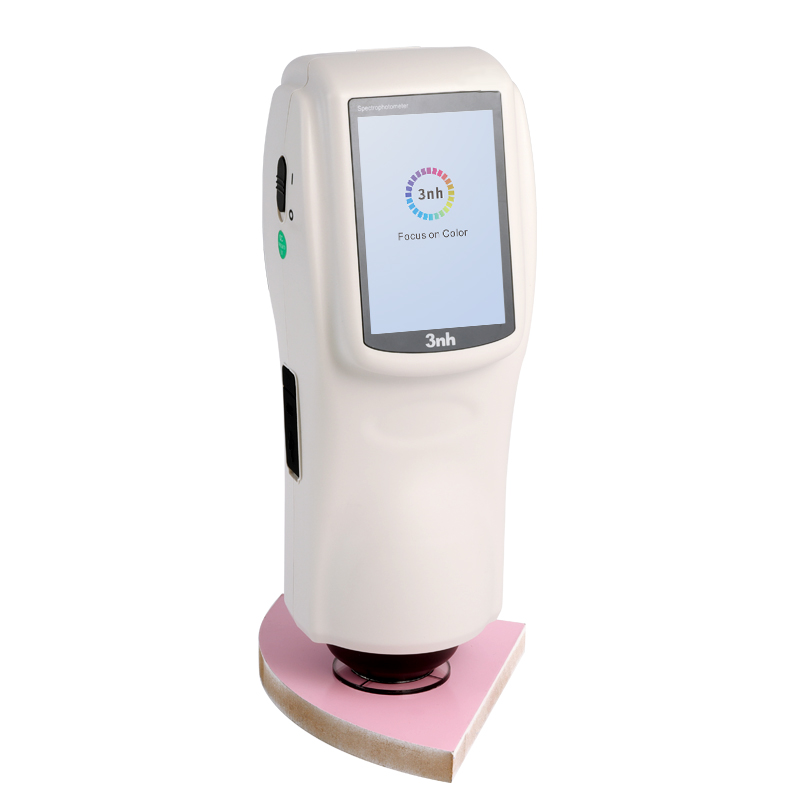

More pictures for 3nh Handheld Colorimeter Portable Spectrophotometer NS810
Specifications for 3nh Handheld Colorimeter Portable Spectrophotometer NS810
| Model | NS810 Color Spectrophotometer |
| Illumination/observation system | d/8 (diffused illumination, 8-degree viewing angle) Comply with CIE
No.15, GB/T 3978. |
| Integrating sphere Size | Φ58mm |
| Light Source | combined LED sources |
| Sensor | Silicon photodiodearray |
| Wavelength range | 400~700nm |
| Reflectance range | 0~200% |
| Measuring Aperture | Φ8mm |
| Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV |
| Color difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*cmc(l:c),CIE2000ΔE*00,ΔE(h) |
| Other Chromaticity Data | WI(ASTM E313,CIE/ISO,AATCC,Hunter), |
| YI(ASTM D1925,ASTM 313), |
| TI(ASTM E313,CIE/ISO), |
| Metamerism Index (Mt) |
| Colour Stain, Color Fastness |
| Opacity |
| Observer | 2°/10° |
| Illuminant | D65,A,C,D50,D55,D75,F2,F6,F7,F8,F10,F11,F12 |
| Display Data | Spectral Value/Graph, Colorimetric Value, Color Difference
Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation |
| Repeatability | Spectral Reflectance: standard deviation within 0.1%(400~700nm:
within 0.2%) |
| Colorimetric Value: Standard deviation within DeltaE*ab 0.04
(Measurement conditions: white calibration plate measured 30 times
at 5 seconds intervals after white calibration was performed.) |
| Data Memory | 1000 Standards, 15000 Samples |
| Standard Accessory | Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM
(containing management software), Data Line, White and Black
Calibration Cavity, Protective Cover and Wrist Strap |
| Optional Accessory | Micro Printer, Powder Test Box |
Certification for our 3nh Handheld Colorimeter Portable Spectrophotometer NS810
Warranty
All color spectrophotometer and colorimeters have one year warranty
from the purchase date. If it has something wrong during warranty,
you can send it back to us. The buyer pays for the returning
shipping cost and we will pay for the sending shipping cost.
