    Portable Colorimeter NR145 High Precision Vertical Design PC Connected Digital Display User Friendly

    Ask Lasest Price
    Brand Name : 3NH
    Model Number : NR145
    Certification : CE / ROHS / TUV / FCC / ISO9001:2015
    Price : USD480~550 / SET
    Payment Terms : T/T, L/C, Paypal, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 1000pcs per month
    Delivery Time : 1-3 working days
    • Product Details
    • Company Profile

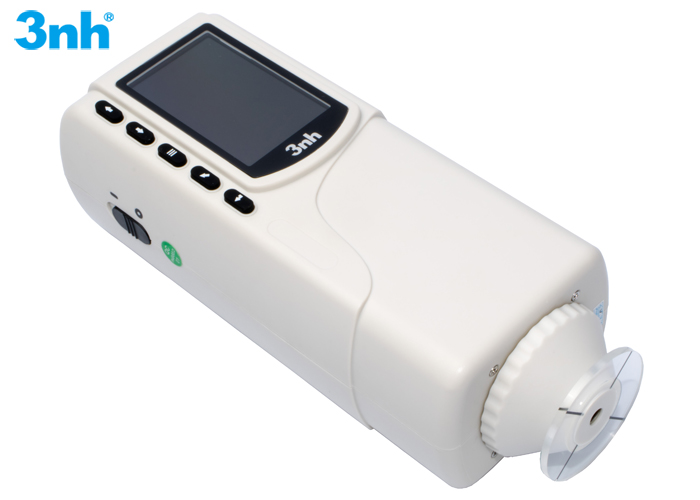

    Portable Colorimeter NR145 High Precision Vertical Design PC Connected Digital Display User Friendly

    3NH-NR145 Colorimeter for quality control / digital software included
    black-and-white contrast calibratable / measuring modes for various parameters / Li-ion battery

    The Colorimeter proves to be a true multitasking device. A light-source illuminates an object, which then absorbs part of that light and reflects another one. That reflected light can be then detected by a sensor in order to determine the reflected wavelengths and calculate its colour. Colorimeters are often applied in areas of quality control in industrial sectors. Colorimeter of the 3NH-NR145 is applied especially in industries where the characteristics of colours play a big role.


    Whether it is painting industries or for the production of plastic bags, the colorimeter 3NH-NR145 is an ideal product for quality management and assures highest reliability, whenever it is important to assure a certain standard in optic quality. The colorimeter supports an ergonomic design and features a user-friendly menu navigation. The colorimeter 3NH-NR145 has a measuring aperture of 8 mm. The supported color spaces of the colorimeter 3NH-NR145 are CIE L*a*b*C*h, CIE L*a*b, and CIE XYZ.


    The colorimeter is designed for application in professional industries. Another advantage of the colorimeter of the 3NH-NR145 is that it supports a vertical justification. This means that the whole device does not need to be placed on the object to analyse, but only the part with the sensor in it. The industrial perspective of it is that this method allows the measuring of damp objects, textiles and even food. The colorimeter 3NH-NR145 is therefore ideally applied for measurements of e.g. meat, bananas or tomatoes. With the software "CQCS3" that is included in the pack, the measured data can be read out on a computer or laptop for a digital overview.


    Highlights

    - High Cost-Effective

    - High repeatability accuracy:ΔE ≤ 0.08

    - Illuminating Locating & Cross Locating

    - Rechargeable Li-ion battery
    - Built in white calibration date, no need to claibrate every time
    - Continuous performance

    - Measures various colors
    - Application on different surfaces
    - Simplified user-interface, easy to use
    - Software in the pack


    Applications

    3NH-NR145 series are wildly used in the measuring of damp objects, textiles and even food(e.g. meat, bananas or tomatoes), and it’s an ideal product for quality management and assures highest reliability in dental technology, painting industries or for the production of plastic bags,plastics, electronics, ink, gament, dyeing, automotive, scientific research, schools and laboratories.


    Specifications

    Illuminating/Viewing Geometry45°/0°
    Measuring ApertureΦ8mm
    DetectorSilicon photoelectric diode
    Locating MethodIllumination Locating & Cross Locating
    Repetitive ErrorStandard deviation within ΔE*ab 0.08 Average of 30 measurements of standard white plate
    Inter-Instruments ErrorΔE*ab ≤ 0.50
    Color SpaceCIE L*a*b, CIE L*C*h*; CIE L*a*b; CIE XYZ
    Color Difference FormulaΔ E*ab;Δ L*a*b*; Δ E*C*h*
    Light Sources TypeD65
    Light Source DeviceLED Blue Light Excitation
    Light Source Life5 years, More than 1.6 million measurements
    SensorSilicon Photoelectric Diode Array
    Measuring Time1.5s
    Data Storage100pcs standards 20000pcs samples
    Touch-ScreenNon
    Operating Temperature0~40℃ (32℉~104℉)
    Storage Temperature-20℃~50℃ (-4℉~122℉)
    Humidity0~85%, No condensation
    PC SoftwareCQCS3
    Weight450g
    Dimension205*68*80mm
    BatteryLarge Capacity Li-ion Battery
    Standard AccessoriesAC-DC Adapter, Li-ion Battery, Operating Instruction, CD-ROM(containing color management software), USB Cable, White Calibration Plate, Φ8mm Measuring Aperture,Wrist band
    Optional AccessoriesMicro-Printer, Powder Test Box
    CertificatesCE & RoHS & TUV & FCC & ISO9001

    Delivery Scope

    1 x Colorimeter 3NH-NR145
    1 x USB cable
    1 x Li-ion Battery
    1 x AC-DC adapter

    1 x Φ8mm Measuring Aperture
    1 x Wrist band
    1 x Standard calibration plate white
    1 x CD-ROM with PC software
    1 x Instruction manual


    Delivery Time

    1-2 working days after payment received.


    Warranty

    We warrant to you that any Product purchased from us will, on delivery and for the following 1 year, conform in all material respects with its description, be of satisfactory quality, and be reasonably fit for all the purposes for which products of that kind are commonly supplied.


    Optional Accessories


    3NH High-end Spectrophotometer YS3060 Portable color meter Dual aperture Pass or Fail delta display

    Powder Test Box, Ref. No.: 3NH-YS30-A-03

    For testing powders Volume is 30 ml or 1.0 ounces Includes

    3NH High-end Spectrophotometer YS3060 Portable color meter Dual aperture Pass or Fail delta display

    Micro-printer / Ref. No.: 3NH-SP-A-01


    More Pics



    The L*a*b color space

    Colorimeter NR145 and NR20XE: Color Spaces

    Here you can see the color space L*a*b. This color space covers all colors that are visible with the naked eye. L=100 stands for white and L=0 for black. "a+" and "a-" or "b+" and "b-" stands for the color contrasts red, green, yellow and blue.

    The Colorimeter 3NH-NR145 can be applied in various industrial fields and thus allows a precise and simple application to assure a consistent quality of the products.
