3nh 45/0 Advanced Spectrodensitometer YD5050 High Accuracy
Spectrophotometer for Optical Density and Dot Enlargement
Product Introduction
3nh 45/0 Advanced Spectrodensitometer YD5050 High Accuracy
Spectrophotometer for Optical Density and Dot Enlargement is a new product developed by 3nh. It's with 45/0(45 ring-shaped
illumination, 0 degree viewing angle) structure, comply to standard
ISO 5-4,CIE No.15. It is suitable for using in ink printing, in
Film Processing, Textile Printing and Dyeing, Plastic Electronics
and Other Industries for Color Measurement and Quality
control;especially suitable for the measurement and quality control
of optical density and dot enlargement in ink printing.
Under the 45/0 geometric optical illumination and the testing
conditions of M0, M1, M2, M3 stipulated by ISO 13655 standard, 3nh 45/0 Advanced Spectrodensitometer YD5050 High Accuracy
Spectrophotometer for Optical Density and Dot Enlargement can accurately measure the reflectance data of samples. Under
multiple color spaces, it can accurately measure various printing
density indexes, color difference formulas and color indexes, and
can meet the user's regular testing of various parameters.
3nh 45/0 Advanced Spectrodensitometer YD5050 High Accuracy
Spectrophotometer for Optical Density and Dot Enlargement is the industry benchmark for measuring color in print and
packaging.From densitometers to highly advanced spectrophotometers,
for use with paper, film or other substrates, the 3nh 45/0 Advanced Spectrodensitometer YD5050 High Accuracy
Spectrophotometer for Optical Density and Dot Enlargement is one of the most accurate and consistent color measurement
instruments on the market. With easy-to-use features, everyone in
your organization will be able to access the color data they need
quickly and easily.
Main Advantages
1.45/0 geometrical optics structure, comply with CIE, the testing
conditions of M0, M1, M2, M3 stipulated by ISO 13655 standard, it
can accurately measure various printing density , overprint rate
and other printing parameters.
2. Accurately measure reflectance spectrum, CMYK density and Lab
value of the sample;
3. High-configuration electronic hardware: 3.5-inch TFT true-color
screen, capacitive touch screen, concave grating, 256-pixel
dual-array CMOS image sensor, etc.；
4. Perfect combination of the beautiful appearance and the
ergonomic structure design;
5. Switchable apertures: Φ2/4/8mm, adapt to more samples;
6. Large-capacity storage space, over 20,000 test data
7. Combined LED light sources with long life and low power
consumption, including UV light;
8. USB/Blue2.1 dual communication mode is widely used;
9. Especially suitable for process control and quality control of
printing plants;
10. PC software has powerful function expansion.
Technical Specifications
| Model | YD5050 |
| Measurement Geometry | 45/0(45 ring-shaped illumination, 0 degree viewing angle); ISO
5-4,CIE No.15 |
| Features | high accuracy spectrophotometer densitometer, apply in ink
printing, in Film Processing, Textile Printing and Dyeing, Plastic
Electronics and Other Industries for Color Measurement and Quality
Control;especially suitable for the measurement and quality control
of optical density and dot enlargement in ink printing;able to
customize single aperture Φ2mm,Φ4mm,Φ8mm. |
| Light Source | Combined LED Light, UV Light |
| Spectral separation device | Concave Grating |
| Detector | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 400~700nm |
| Wavelength Pitch | 10nm |
| Half Bandwidth | 10nm |
| Measurement Conditions | Compliance with ISO 13655 measurement conditions; |
| M0 (CIE Light Soure A) |
| M1 (CIE Light Soure D50) |
| M2 (Excluding UV light source) |
| M3 (M2+Polarized light filter) |
| Density Standards | ISO Status A, E, I, T |
| Density index | Density value, density difference, dot area, dot enlargement,
overprint, printing characteristics, printing contrast, tone error
and gray scale, density scanning |
| Measurement aperture | Customized one aperture:Φ2mm,Φ4mm,Φ8mm optional |
| Color Spaces | CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB |
| Color Difference Formula | ΔE*ab,ΔE*94,ΔE*00,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE(Hunter) |
| Other Colorimetric Index | WI(ASTM E313,CIE/ISO,AATCC,Hunter), |
| YI(ASTM D1925,ASTM 313), |
| MI (Metamerism Index),Opacity, |
| Observer Angle | 2°/10° |
| Illuminants | A,C,D50,D55,D65,D75,F2(CWF),F7(DLP),F11(TL84),F12(TL83/U30),F1,F3,F4,F5,F6,F8,F9,F10(TPL5) |
| Measurement Time | About 1.5s |
| Repeatability | Density: Within 0.01 D |
| Chromaticity value:within ΔE*ab 0.03 ( When a white calibration plate is measured 30 times at 5 second
intervals after white calibration) Except M3 |
| Inter-instrument Error | Within ΔE*ab 0.18 (Average for 12 BCRA Series II color tiles) Except M3 |
| Measurement mode | Single Measurement, Average Measurement(2-99) |
| Size(L*W*H) | 184*77*105mm |
| Weight | About 600g |
| Power source | Li-ion battery. 5000 measurements within 8 hours |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display | 3.5-inch TFT color LCD, Capacitive Touch Screen |
| Interface | USB, Bluetooth 4.0 |
| Data memory | 20000 pcs |
| Language | Simplified Chinese, English, Traditional Chinese |
| Working Environment | Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude:
less than 2000 m |
| Storage Environment | Temperature: -20~50℃; Humidity: 0~85% (No Condensation) |
| Standard Accessory | Power Adapter, USB Cable, Built-in li-ion battery, User Manual,
software(download from the website),White and Black Calibration
Board, Protective Cover,Polarization filter box,Locating Plate |
| Optional Accessory | Micro Printer |
| Notes: The specifications are subject to change without notice. |

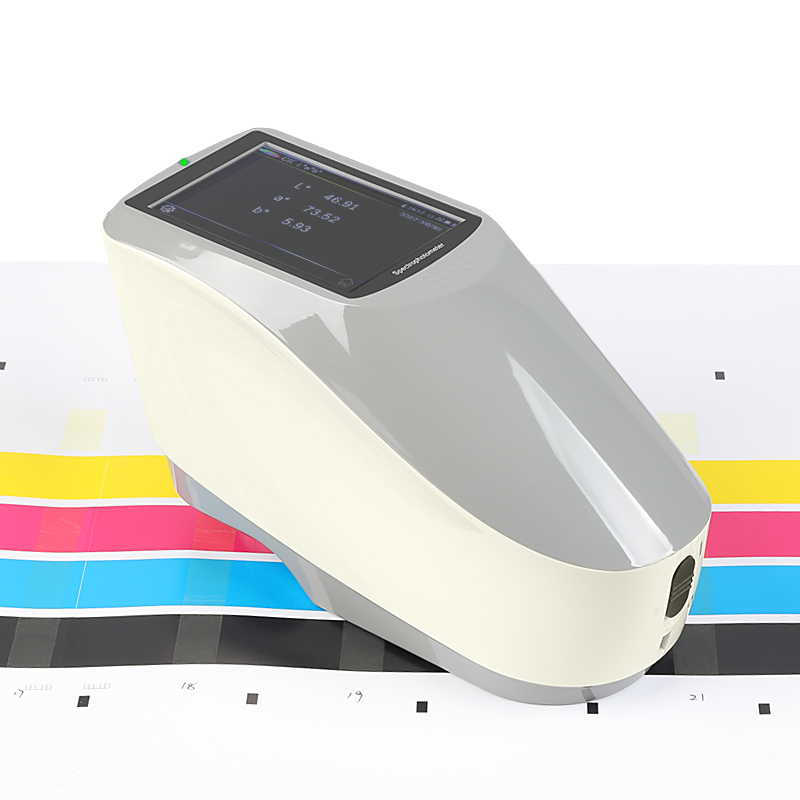

Product Pictures
Applicable Industries
3nh 45/0 Advanced Spectrodensitometer YD5050 High Accuracy
Spectrophotometer for Optical Density and Dot Enlargement is widely used in ink printing, Film Processing, Textile Printing
and Dyeing, Plastic Electronics and Other Industries for Color
Measurement and Quality Control; especially suitable for the
measurement and quality control of optical density and dot
enlargement in ink printing.
