Cosmetic Foundation Shades Color Matching Spectrophotometer NS820 D/8° 4mm Aperture Liquid Spectrophotometer

    Buy cheap Cosmetic Foundation Shades Color Matching Spectrophotometer NS820 D/8° 4mm Aperture Liquid Spectrophotometer from wholesalers

    Buy cheap Cosmetic Foundation Shades Color Matching Spectrophotometer NS820 D/8° 4mm Aperture Liquid Spectrophotometer from wholesalers
    • Buy cheap Cosmetic Foundation Shades Color Matching Spectrophotometer NS820 D/8° 4mm Aperture Liquid Spectrophotometer from wholesalers
    • Buy cheap Cosmetic Foundation Shades Color Matching Spectrophotometer NS820 D/8° 4mm Aperture Liquid Spectrophotometer from wholesalers
    • Buy cheap Cosmetic Foundation Shades Color Matching Spectrophotometer NS820 D/8° 4mm Aperture Liquid Spectrophotometer from wholesalers
    • Buy cheap Cosmetic Foundation Shades Color Matching Spectrophotometer NS820 D/8° 4mm Aperture Liquid Spectrophotometer from wholesalers

    Cosmetic Foundation Shades Color Matching Spectrophotometer NS820 D/8° 4mm Aperture Liquid Spectrophotometer

    Ask Lasest Price
    Brand Name : 3nh
    Model Number : NS820
    Certification : CE / FCC/ ROHS / TUV / ISO9001:2015
    Price : Negotiable
    Payment Terms : T/T, Paypal, Western Union
    Supply Ability : 5000pcs per month
    Delivery Time : 1 working day
    • Product Details
    • Company Profile

    Cosmetic Foundation Shades Color Matching Spectrophotometer NS820 D/8° 4mm Aperture Liquid Spectrophotometer

    Cosmetic Foundation Shades Color Matching Spectrophotometer NS820 D/8° 4mm Aperture Liquid Spectrophotometer
    Brief Introduction

    3nh Cosmetic Foundation Shades Color Matching Spectrophotometer NS820 D/8° 4mm Aperture Liquid Spectrophotometer is equipped with SQC8 software, which is also comply with CIE No. 15,GB/ 3978. It not only can measure Lab value and deltaE value accurately, but also can display spectral reflectance curve which can realize color matching function and calculate the real parameters of various color formulas.

    Product Description

    Product Features


    1. Elegant appearance combines ergonomic design;
    2. D/8°(diffuse uniform illumination 8reception in accordance with standard CIE No. 15, GB/T3978;
    3. 3.5" ultra-large touch-screen makes the operation interface quite friendly;

    4. 15 oblique angle screen, in line with the human eye observation.
    5. Oversized integrating sphere, more effective homogenization ray of lights.

    6. Two kinds of standard observer angles, multiple light source, color spaces and color difference formulas, which is fit for all kinds of color measurement requests;

    7. Repeatibility delta E*ab within 0.04,inter- instrument error delta E*ab within 0.2, super stable;

    8. Large capacity storage, more than 15000 data;

    9. PC software with powerful extension functions;

    10. High hardware configuration with a number of innovative technologies.


    Technical Specification



    Model NumberNS820
    Illuminating/Viewing GeometryD/8° (Diffused illumination, 8 degree viewing angle),
    Conform to the Standard CIE No.15, GB/T 3978.
    Measuring ApertureΦ4mm
    Integrating Sphere DiameterΦ58mm
    Repetitive ErrorSpectral Reflectance: Standard deviation within 0.1%(400~700nm: within 0.2%)
    Colorimetric Value: Standard deviation ΔE*ab≤0.04 (Measurement Conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration performed.)
    Inter-Instruments ErrorΔE*ab≤0.2 (Average value of the measurement results of the 12 tint plates of BCRA series Ⅱ)
    Wavelength Range400~700nm
    Wavelength Pitch10nm
    Reflectance Range0~200%
    Color SpaceCIE LAB, XYZ, Yxy, LCh, CIE LUV, LAB & WI & YI
    Color Difference FormulaΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*cmc(l:c), CIE2000ΔE*00, ΔE(h)
    Display DataSpectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation, Color Index Setting(ΔE*94, ΔE*cmc, ΔE2000), Tolerance Prompt, Reverse Prompt
    Other Chromaticity DataWI(ASTM E313, CIE/ISO, AATCC, Hunter),
    YI(ASTM D1925, ASTM 313),
    TI(ASTM E313, CIE/ISO),
    Metamerism Index (Mt),
    Color Strength, Color Stain, Color Fastness
    Observer Angle2°/10°
    Light Sources TypeD65, A, C, D50, D55, D75, F1, F2(CWF), F3, F4, F5, F6, F7(DLF), F8, F9, F10(TPL5), F11(TL84), F12(TL83/U30)
    Light Source DeviceCombined LED Light
    Light Source Life5 years, More than 1.6 million measurements
    SensorSilicon Photoelectric Diode Array
    Measuring Time1.5s
    Data Storage1000 Standards, 15000 Samples
    Data PortUSB&RS232
    Display SizeTFT 3.5"
    Touch-ScreenYes
    Operating Temperature0~40℃(32~104℉)
    Storage Temperature-20~50℃(-4~122℉)
    PC SoftwareSQC8
    Weight600g
    Dimension90*77*230mm
    BatteryLarge Capacity Li-ion Battery
    Standard AccessoryPower Adapter, Li-ion Battery, Operating Instruction, CD-ROM(containing color management software), Data Cable, White and Black Calibration Cavity, Protective Cover and Wrist Strap.
    Optional AccessoryUniversal Test Components, Micro Printer, Powder Test Box
    CertificatesCE & RoHS & TUV & FCC & ISO9001

    Product Application


    Nowadays, color management instruments, like spectrophotometers, colorimeters, have been widely applied to industries like coating, plastic, ink, textile, food, printing, packaging, paper, medicine, automobile, medical, metal, cosmetics, ceramics, paint, marble, aluminum, leather, hardware, wood products, building decoration materials, coating cloth, other non-metallic materials, plating, automotive interior parts, toys, printing and dyeing, pigments, chemicals, footwear, scientific research institutions, laboratories, etc.

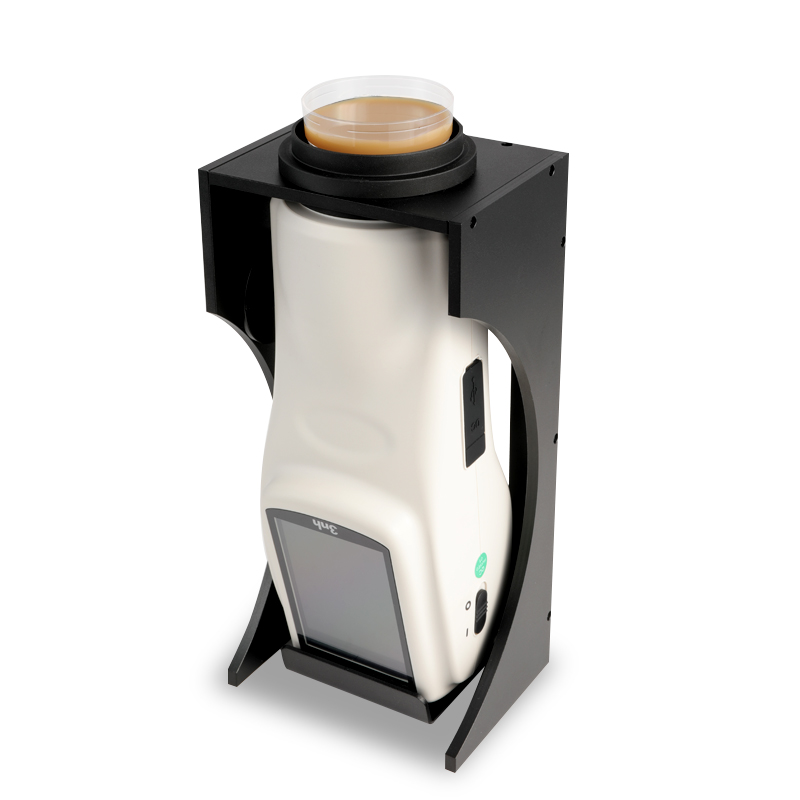

    Cosmetic Foundation Shades Color Matching Spectrophotometer NS820 D/8° 4mm Aperture Liquid Spectrophotometer


    Product Images


    Packing & Delivery
    Packaging
    Size
    47(L)*27(W)*38(D)
    Weight
    10 KG
    Packaging Details
    The normal package is box packing.
