    Handy Colorimeter NH310 High Accurate CM-10Plus For Leather Fabric Furniture Metal Plastic

    Ask Lasest Price
    Brand Name : 3NH
    Model Number : NH310
    Certification : CE / ROHS / TUV / ISO9001:2015
    Price : Negotiable
    Payment Terms : T/T, Paypal,, Western Union, L/C, D/A, D/P
    Supply Ability : 5000pcs per month
    Delivery Time : 1 ~2 working days
    • Product Details
    • Company Profile

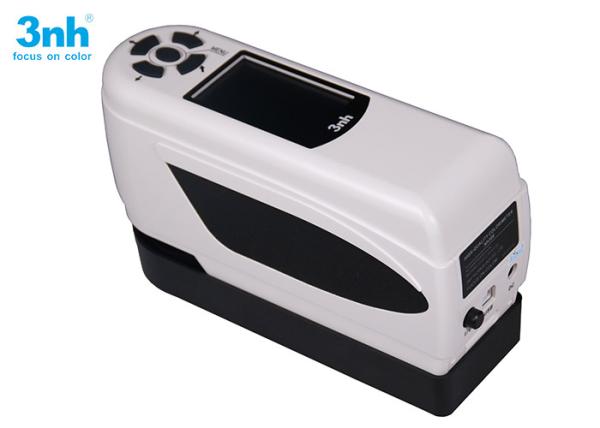

    Handy Colorimeter NH310 High Accurate CM-10Plus For Leather Fabric Furniture Metal Plastic

    Portable Colorimeter 3NH-NH310

    High Accurate Measuring Instrument for Leather Fabric Metal Plastic Furniture

    Rechargeable battery / Automatic black and white calibration / PC software included


    3NH-NH310 is a portable colorimeter used to measure different spectral parameters. This user-friendly, ergonomically designed colorimeter automatically performs a white and black calibration when powered on. Suitable for manufacturing quality control and assurance as well as product research and development, the colorimeter offers impressive measuring accuracy and comes manufacturer calibrated. An optional ISO calibration certificate can be acquired as an accessory for an additional fee. Useful for determining color difference, chromaticity index, color sample database management, and color difference cumulative analysis. Integrated camera/illumination locating for small samples.

    When using the color meter, different color spaces can be selected (CIE L*a*b, CIE XYZ, CIE RGB, CIE L*u*v, CIE L*C*H + Yellowness + Whiteness + Color Fastness). The color meter also offers two different measuring apertures (Ø 4 mm and Ø 8 mm) for different applications. In addition to the individual color space coordinates, deviations between readings are displayed. For example, after taking a measurement with the 3NH-NH310, a reading can be saved and used as a standard reference value against which other readings can be compared. Up to 100 reference values and up to 20,000 samples can be stored to the internal memory of the colorimeter. The measured data can be transferred to a PC via USB and analyzed using the included PC-compatible software


    Highlight
    - Rechargeable Li-ion battery
    - Automatic white and black calibration
    - Determines degree of whiteness and yellowness
    - Different measurement modes for different colors
    - Includes PC using software for detailed color analysis
    - Offers two different measuring apertures (Ø 4 mm and Ø 8 mm)
    - Yellowness and Whiteness color fastness
    - 3 light source options(D65,D50,A)
    - 8 mm extended aperture option for concave surfaces
    - Camera/illumination locating for small samples


    Applications

    Colorimeter can easily implement accurate color transmission, also usded for manufacturing quality control, product research and development in Painting, lacquer, ink, coating, leather, paper, printing, plastics, electronics, furnitures, wood, decorating, ceramics, tiles, metals, hardware, marble, electroplating, package, food, cosmetics, pharmacy, cloth, garments, textiles and traffic signage, etc.


    Specification

    Illuminating/Viewing Geometry8°/D (8° illumination, diffused viewing angle)
    Measuring ApertureΦ8mm&Φ4mm
    Integrating SphereNon
    Locating MethodCamera Viewfinder Locating & Illumination Locating
    Repetitive ErrorStandard deviation ΔE*ab≤0.06 (Measurement Conditions: White calibration plate measured 30 times at 5 seconds intervals after white calibration performed.)
    Inter-Instruments ErrorΔE*ab≤0.4
    Wavelength PitchNon
    Reflectance RangeNon
    Color SpaceCIE L*a*b, CIE XYZ, CIE RGB, CIE L*u*v, CIE L*C*H
    Color Difference FormulaΔE*ab, ΔL*ab, ΔE*C*H, ΔECIE94, ΔEHunter
    Display DataColorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation
    Other Chromaticity DataWhiteness&Yellowness, Color Fastness
    Observer Angle10°
    Light Sources TypeD65, A, D50
    Light Source DeviceLED Blue Light Excitation
    Light Source Life5 years, More than 1.6 million measurements
    SensorSilicon Photoelectric Diode Array
    Measuring Time1.5s
    Data Storage100 Standards, 20000 Samples
    Data PortUSB
    Display SizeTFT 2.8"
    Touch-ScreenNon
    Operating Temperature0~40℃ (32℉~104℉)
    Storage Temperature-20℃~50℃ (-4℉~122℉)
    Humidity0~85%, No condensation
    PC SoftwareCQCS3
    Weight500g
    Dimension205*70*100mm
    BatteryLarge Capacity Li-ion Battery
    Standard AccessoriesPower Adapter, Li-ion Battery, Operating Instruction, CD-ROM(containing color management software), USB Cable, White Calibration Plate, Φ8mm and Φ4mm Measuring Aperture
    Optional AccessoriesExtended Aperture(Φ8mm), Universal Test set, Micro-Printer, Powder Test Box
    CertificatesCE & RoHS & TUV & FCC & ISO9001

    Delivery Scope

    1 x colorimeter 3NH-NH310
    2 x apertures (Ø 4 mm and Ø 8 mm)
    1 x rechargeable battery
    1 x AC power adapter
    1 x calibration tester
    1 x PC software
    1 x user manual
    1 x aluminium carrying case


    Delivery Time

    1~2 working days after payment received


    Warranty

    We warrant to you that any Product purchased from us will, on delivery and for the following 1 - 2 years (depending on the Product purchased), conform in all material respects with its description, be of satisfactory quality, and be reasonably fit for all the purposes for which products of that kind are commonly supplied.


    Optional Accessories

    Extended Aperture(Φ8mm) / Ref. No.: 3NH-NH3-A-01

    For concave or arc surface using

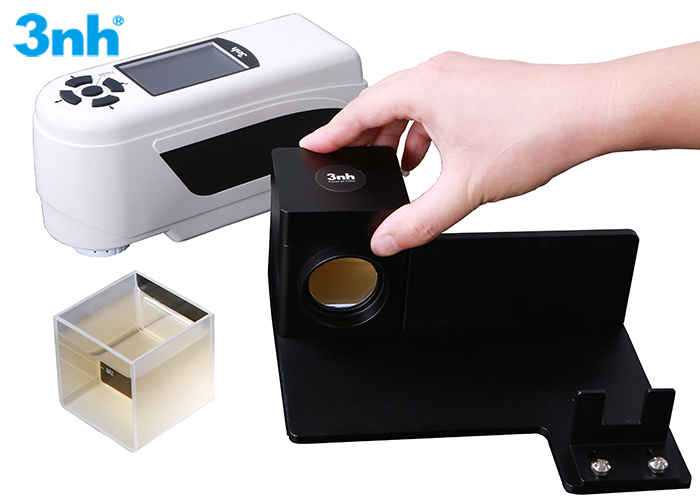

    Universal Test Set / Ref. No.: 3NH-NH3-A-02

    For testing liquids, powders and other non-solids / Volume is 125 ml or 4.2 ounces / Includes 2 quartz sample boxes

    Powder Test Box Ref. No.: 3NH-YS30-A-03

    For testing powders Volume is 30 ml or 1.0 ounces


    3NH Spectorphotometer YS3010 Full Spectrum Handheld Color Meter For Painting Plastic Metal Furniture

    Micro-printer / Ref. No.: 3NH-SP-A-01


    More Pictures

    Handy Colorimeter NH310 High Accurate CM-10Plus For Leather Fabric Furniture Metal Plastic


    About 3NH

    Shenzhen Threenh Technology Co., Ltd. is a high-tech enterprise. We research, develop, produce and market photoelectric detection products in photoelectric detection technology field and color management field.After years of intensice research, 3nh has launched NS series spectrophotometer and NH, NR series colorimeter, ISO12233 resolution test chart, optical image test solution and specific standard illuminant which are widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, optical image test industries and the field of scientific research, school and laboratory. Our products are exported around the world. We can provide customization service which has been well received by customers.


    3NH cherishes talents, focuses on talents. Company brings together many of high-level, high educated professionals. Among them, undergraduate academic staffs of the total number of company accounted for more than 80%; postgraduate staffs of the total number of company accounted for 30%. It involves the fields of photometry, electronic circuit, embedded system, photoelectric detection, mechanical structure design, optical design, application software, lighting technology electronic commerce and internet. 3nh team has strong capability to design, develop and produce on its own. The company has a large number of innovation patents, core technologies and intellectual property rights of 3nh products.


    3NH adheres to “people-oriented, customer first, technological innovation, sustainable development” business philosophy to meet customer demand continuously, to create value for customers and to achieve win-win situation and common development.


    --------------------------------------------------------------------------------
