    D/8 Structure System Liquid Spectrophotometer NS810 For Light Soy Sauce Vinegar

    Ask Lasest Price
    Brand Name : 3nh
    Model Number : NS810
    Certification : CE / ROHS / TUV / FCC / ISO9001:2015
    Price : Negotiable
    Payment Terms : T/T, Paypal, Western Union
    Supply Ability : 5000pcs per month
    Delivery Time : 1 working day
    • Product Details
    • Company Profile

    D/8 Structure System Liquid Spectrophotometer NS810 For Light Soy Sauce Vinegar

    Liquid Spectrophotometer NS810 for light soy sauce vinegar white wine sweet sauce bean paste cardamom tomato sauce​


    People with kids would probably agree that ketchup is the secret ingredient to improving the diets of young children. With it, you can convince almost any picky toddler to try new foods. But this love isn’t limited to the juvenile palate—just look at diners, restaurants, and fast food establishments across the country. From specially formulated bottled products to mass produced foil-lined packets, ketchup has embedded itself in American cuisine.


    But with high demand for the condiment comes a volume of production that requires rigorous quality control. The competitive nature of the market has made it imperative for manufacturers to choose the best color monitoring systems to ensure that their fresh tomatoes translate into high-quality ketchup products. With advanced Liquid Spectrophotometer nd tomato color classification image analysis, you can develop a highly efficient system for condiment production, ensuring both quality and consistency.


    Description



    Liquid Spectrophotometer NS810 is developed by 3nh with independent intellectual property rights. It features with stable performance, precise measurement and powerful functions in the leading position of the same industry.


    In the R&D process, 3nh scientists and engineers measured various color samples from dark to light, white to black, and other standard color boards provided by ISO (International Standardization Organization). The parameters of test results are integrating with international standards.


    3nh also analyzed the parameters from Japan, American and Germany spectrophotometers. The differences of L*ab absolute value between them are within ±1.5. Compared the L*ab value between NS810 and Japan spectrophotometer, when measuring any color objects, the biggest L*ab difference is within ±1.0. This is a breakthrough of 3nh high technology which realizes to be fully compatible with international market.


    Specifications



    ModelNS810
    Illumination/observation systemd/8 (diffused illumination, 8-degree viewing angle) Conforms to CIE No.15, GB/T 3978.
    Integrating sphere SizeΦ58mm
    Light SourceCombined LED sources
    SensorSilicon photodiode array
    Wavelength range400~700nm
    Wavelength pitch10nm
    Reflectance range0~200%
    Measuring ApertureΦ8mm
    Color SpaceCIE LAB, XYZ, Yxy, LCh, CIE LUV,LAB&WI&YI
    Color difference FormulaΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*cmc(l:c),CIE2000ΔE*00,ΔE(h)
    Other Chromaticity Data

    WI(ASTM E313,CIE/ISO,AATCC, Hunter),

    YI(ASTM D1925,ASTM 313),

    Metamerism Index (Mt), Color Strength

    Color Stain, Color Fastness

    Observer2°/10°
    IlluminantD65,D50,A,C,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12
    Display DataSpectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation, color index setting(ΔE*94, ΔE*cmc, ΔE2000), tolerance prompt, reverse prompt, time setting, language setting, restore factory setting
    Measurement Time1.5s
    RepeatabilitySpectral Reflectance: standard deviation within 0.1%(400~700nm: within 0.2%)
    Colorimetric Value: Standard deviation within DeltaE*ab 0.04 (Measurement conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.)
    Inter Instrument AgreementWithin DeltaE*ab 0.2 (Average for 12 BCRA Series II color tiles)
    DimensionL*W*H=90*77*230mm
    Weight600g
    BatteryLi-ion battery. 2800 times within 8 hours.
    Lamp Life5 years, more than 1.6 million measurements
    Display ScreenTFT 3.5inch, Capacitive Touch Screen
    InterfaceUSB/RS-232
    Data Memory1000 Standards, 15000 Samples
    Operating Temperature0~40℃(32~104°F)
    Storage temperature-20~50℃(-4~122°F)
    Standard AccessoryPower Adapter, Li-ion Battery, Operating Instruction, CD-ROM (containing management software), Data Line, White and Black Calibration Cavity, Protective Cover and Wrist Strap
    Optional AccessoryUniversal Test Components, Micro Printer, Powder Test Box
    NotesThe specifications are subject to change without notice.

    Advantages



    1. Provide complete reflectance rate and input LAB value manually
    2. NS810: D/8 structure(diffuse illumination 8°viewing )
    3. 3.5 inch large capacitive touch screen, fully functional touch control.
    4. 2°/10°degree observe, multiple lights, many color systems.
    5. The repeatability AE*ab is within 0.04, errors is less than 0.2.
    6. Large capacity storage, more than 15000 data.
    7. PC software with powerful extension functions.
    8. 15.oblique angle screen, in line with the human eye observation.
    9. Oversized integrating sphere, more effective homogenization ray of lights.
    10.High hardware configuration with a number of innovative technologies.


    Applications



    NS810 Liquid Spectrophotometer is widely used in plastic, electronic, painting, coating, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories. It can measure reflectance spectrum and other color index precisely. NS810 spectrophotometer not only can help to perform color matching and color management studies, but also can control product quality management accurately. The instrument is equipped with high-end color management software which can connect PC to achieve more extension functions.

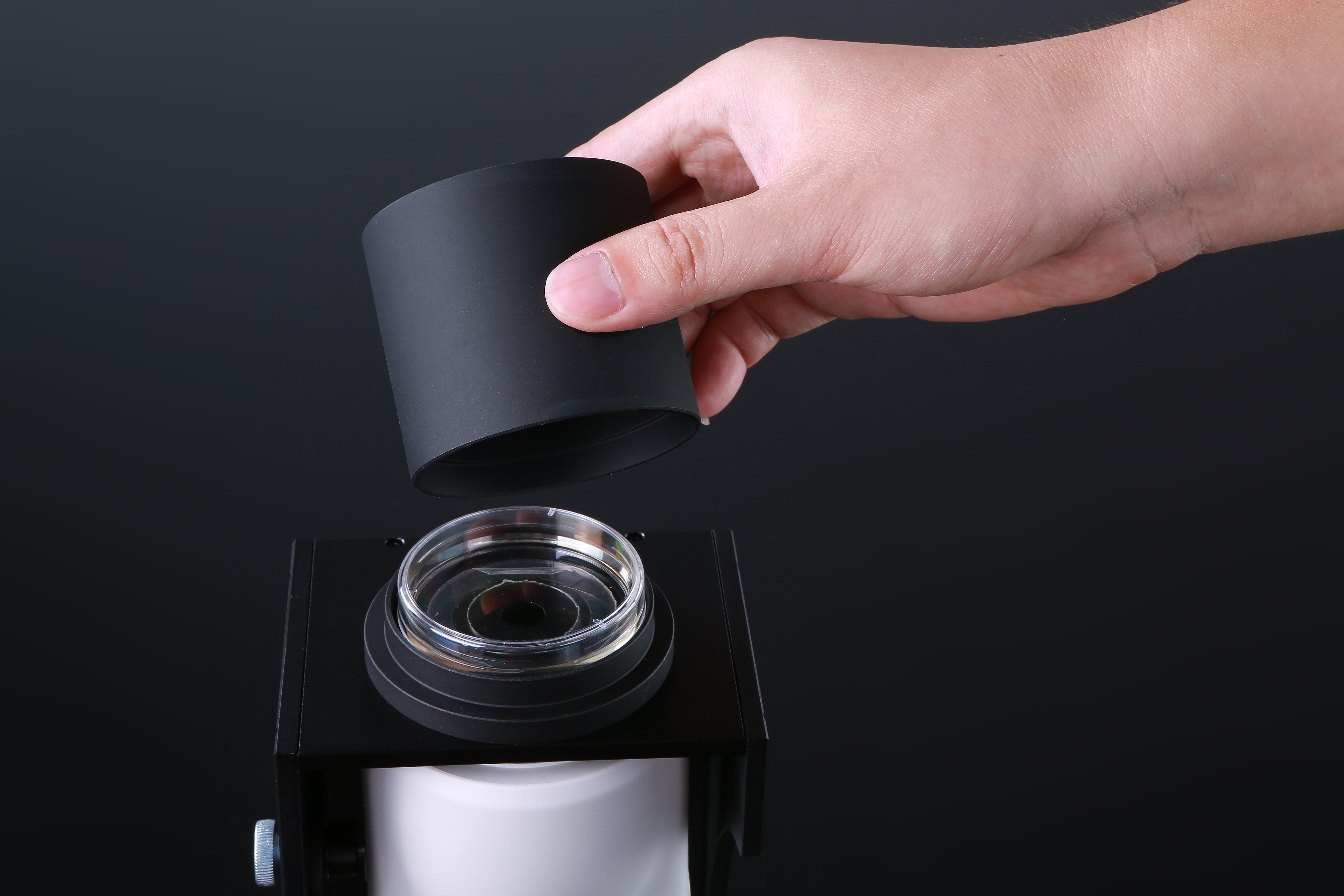

    Product Pictures
