NH300 computer color difference meter 3nh high quality portable
Laboratory Colorimeter with color matching software
In a broad range of industries, obtaining accurate color data and
maintaining color consistency of liquid products is essential. This
is particularly true when color has a significant impact on both
the functionality and appeal of a liquid, which is why
spectrophotometric color measurement is an integral part of quality
control protocols for virtually endless array of products. However,
the spectrophotometer is not the only factor to consider when
establishing analytical methods; you must also consider the
suitability of spectrophotometric accessories.
Brief Introduction
NH300 high-quality portable Laboratory Colorimeter is researched and developed by 3nh, it has adopted multi-channel
color sensors of international brands, more stable IC platform as
well as efficient and accurate algorithms to provide users with
accurate and fast color management and application. NH300 is also
designed with ergonomics and humanized operation and it has applied
for a number of patents. NH300 is a multifunctional Laboratory Colorimeter with high quality and competitive price. 3nh insists on
independent research whose technology innovation is unique in color
management field. NH300 is the most convenient colorimeter for
users.
Main Features
1. Leading Humanity Design and Convenient Operation
Auto White and Black Calibration at Startup
Structure Design in line with Ergonomics
Easy-to-use Operation Interface
2. Stable Measurement Performance
The average fluctuation of △E is less than 0.07, actually more in
0.03~0.06.
Portable structure design which is more conductive to keeping the
instrument stable when using.
3. Convenient and Fast Locating
Illumination locating is a fast, simple and convenient locating
function which is the original function by 3nh.
4. PC Software—Realize More Function Expansion
3nh has the intellectual property of PC software. The corresponding
software serial number and password protection are configured in
3nh colorimeter.
Be able to perform color difference analysis, color difference
cumulative analysis, chromaticity index, color sample database
management, simulating object color, etc.
5. Advanced Power Management Design
3nh is the first enterprise using high capacity Li-ion battery in
colorimeter.
3nh Li-ion battery can be repeatedly charged which will save cost.
Meanwhile, it can measure more than 3000 times on one charge to
ensure the stability of long time measurement.

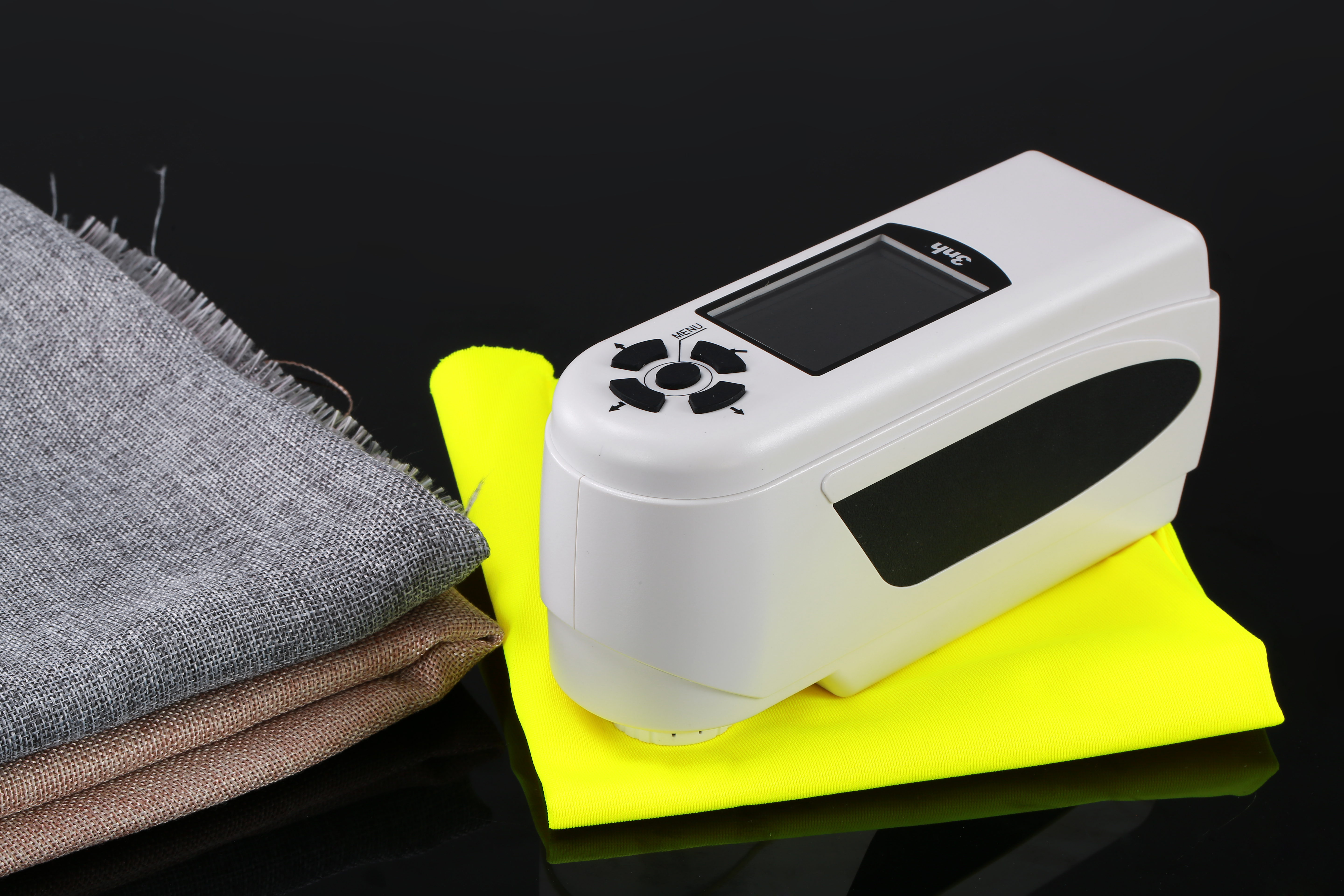

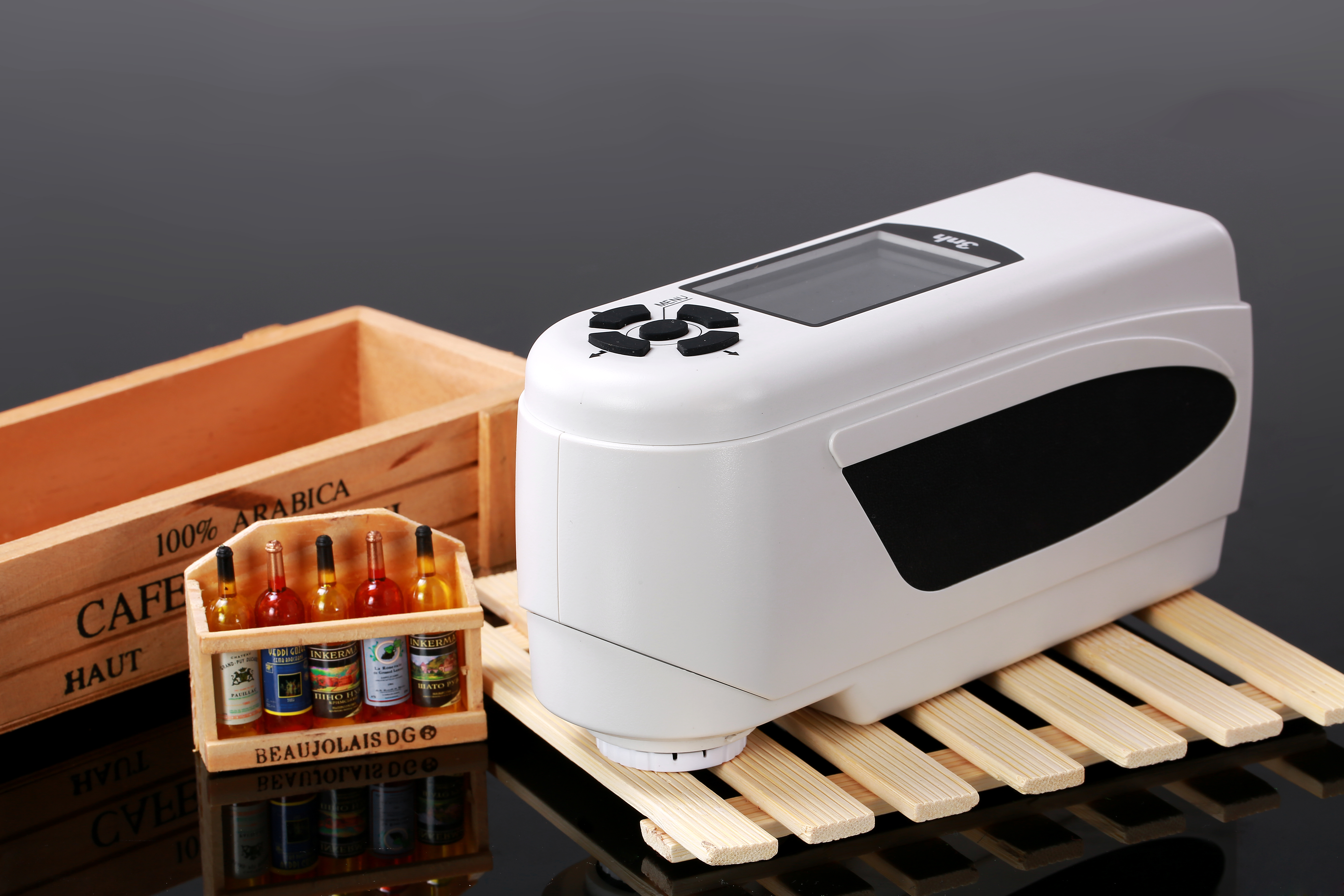

More Pictures
Specifications
| Model Number | NH300 |
| Illuminating/Viewing Geometry | 8°/D (8° illumination, diffused viewing angle) |
| Measuring Aperture | Φ8mm |
| Integrating Sphere | Non |
| Locating Method | Illumination Locating |
| Repetitive Error | Standard deviation ΔE*ab≤0.07 (Measurement Conditions: White
calibration plate measured 30 times at 5 seconds intervals after
white calibration performed.) |
| Inter-Instruments Error | ΔE*ab≤0.4 |
| Wavelength Range | Non |
| Wavelength Pitch | Non |
| Reflectance Range | Non |
| Color Space | CIE L*a*b*C*H*, CIE L*a*b |
| Color Difference Formula | ΔE*ab, ΔL*a*b, ΔE*C*H |
| Display Data | Colorimetric Value, PASS/FAIL Result |
| Other Chromaticity Data | Non |
| Observer Angle | 10° |
| Light Sources Type | D65 |
| Light Source Device | LED Blue Light Excitation |
| Light Source Life | 5 years, More than 1.6 million measurements |
| Sensor | Silicon Photoelectric Diode Array |
| Measuring Time | 1.5s |
| Data Storage | 100 Standards, 20000 Samples |
| Data Port | USB |
| Display Size | TFT 2.8" |
| Touch-Screen | Non |
| Operating Temperature | 0~40℃ (32℉~104℉) |
| Storage Temperature | -20℃~50℃ (-4℉~122℉) |
| Humidity | 0~85%, No condensation |
| PC Software | CQCS3 |
| Weight | 500g |
| Dimension | 205*70*100mm |
| Battery | Large Capacity Li-ion Battery |
| Standard Accessory | Power Adapter, Li-ion Battery, Operating Instruction,
CD-ROM(containing color management software), USB Cable, White
Calibration Plate, Φ8mm Measuring Aperture |
| Optional Accessory | Universal Test Components, Micro-Printer, Powder Test Box |
| Certificates | CE & RoHS & TUV & FCC & ISO9001 |
Applicable Industries
3nh handheld Laboratory Colorimeter can easily achieve color transferring , and be used as a precision
instrument for color matching system. It's widely used in plastics,
electronics, painting, ink, textile and garment, printing and
dyeing, printing paper, automotive, medical, cosmetics and food
industries, scientific research institutes, schools and
laboratories.
