Delta E*ab Laboratory Colorimeter NR60CP with 8mm & 4mm aperture,
for testing paint metal plastic color value
At my new quality assurance job, one of our product quality checks
is to measure the color of our product and to ensure that we are
producing our product that is within a preset acceptable color
range. We use an instrument, a spectrophotometer, that reports
Hunter L, a, b; XYZ, and L*a*b scales. I’ve always thought that
color was measured in terms of RGB, like the way computer monitors
and TV screens describe color. I’ve even created custom colors for
fonts on my computer by manually adjusting the RGB quantities. Can
someone explain why we would measure color using Hunter L, a, b;
XYZ, and L*a*b instead of RGB?
Product Description
NR60CP cost-effective Laboratory Colorimeter is researched and developed by 3nh independently, it has the advantages of high accuracy, powerful function and precise
measurement which are warmly welcomed by paint metal plastic
customers.Color Measurement Is So Easy.
Laboratory Colorimeter NR60CP Characteristics
1. Switchable 8mm and 4mm measuring apertures, easy to measure
concave surface.
2. Higher measurement stability and accuracy, Delta E ab<0.03.
3. More color spaces, various color indexes, extensive
applicability.
4. Double locating: illuminating locating and cross locating
5. Configured with high-capacity rechargeable Li-ion battery
6. Built-in white plate parameters and physical white calibration
board, easy to operate;
7. New integrating sphere optical path design, more stable
measurement;
8. Measurement data can pass national metrology authentication.
Applications
Laboratory Colorimeter NR60CP can easily achieve color transferring , and be used as a precision
instrument for color matching system. It's widely used in plastics,
electronics, painting, ink, textile and garment, printing and
dyeing, printing paper, automotive, medical, cosmetics and food
industries, scientific research institutes, schools and
laboratories.

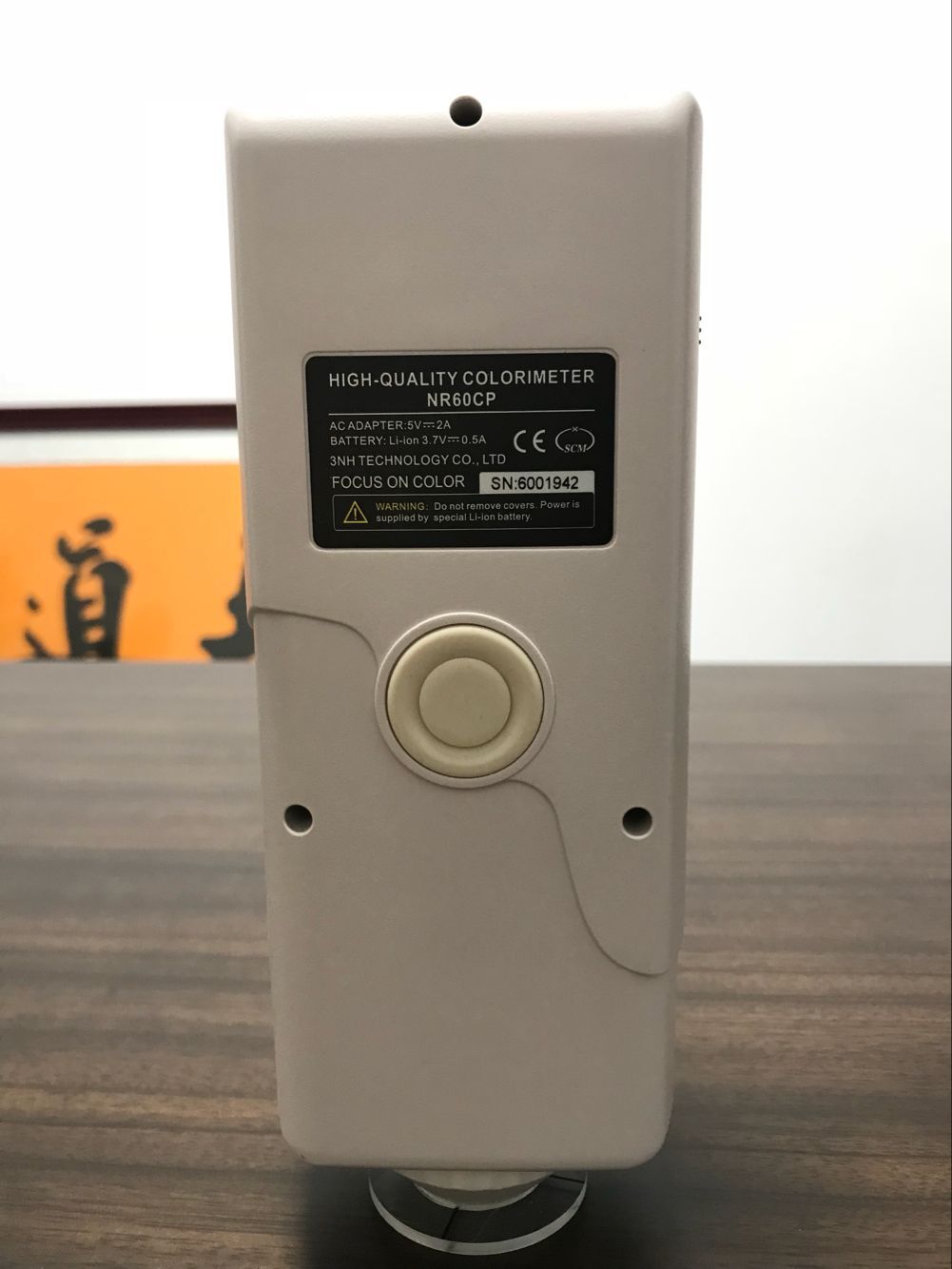

More pictures for Laboratory Colorimeter NR60CP
Specifications for Laboratory Colorimeter NR60CP
| Model | NR60CP |
| Illuminating/Viewing Geometry | 8° / d; CI E No. 15,GB/ T 3978 |
| Light Source | LED sources |
| Sensor | Silicon photodiode array |
| Measuring Aperture | Φ8mm large area end-face; Φ4mm small area concave-convex end-face |
| Color Space | CI E L AB,XYZ,LCh,CI E RGB,CI E LUV |
| Other Chromaticity Data | WI ( E313,CI E, AATCC,Hunt er ),YI ( D1925, 313),Color Fastness,
Staining Fastness, J PC79,BFD( 1. 5: 1),FMCI I |
| Observer | CI E 10° |
| Illuminant | D65,A,C,D50,F2,F6,F7,F8,F10,F11,F12 |
| Display Data | Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result,
Color Offset, |
| Measurement Time | 0. 4s |
| Repeatability | ΔE* ab 0. 03(Average of 30 measurement of standard white plate
within 5s) |
| Errors between each instrument | within Delta E*ab 0.2 |
| Dimension | (L*W*H)205*67*80mm |
| Weight | 500g |
| Battery | rechargeable lithium-ion battery 3. 7V @ 3200mAh |
| Lamp Life | 5 years, more than 1.6 million measurements |
| Display Screen | TFT 2.8 inch(16: 9) |
| Interface | USB/RS-232 |
| Data Memory | 100 Standards, 20000 Samples |
| Operating Temperature | 0~40℃(32~104°F) |
| Storage temperature | -20~50℃(-4~122°F) |
| Optional Accessory | miniature thermal printer, powder test box |
FAQ
1: Q: Is your company accept customization?
A: We accept OEM/ ODM. Any color and any logo is welcome if placed
at least 10pcs.
2: Q:Does your products have warranty?
A: YES, We offer 1 year warranty. Our policy: Is there any quality
problem, First, send the defective machine to us and you bear the
freight. Second, we send back to you free after fixed.
3: Q: After an order placed, when to deliver?
A: It depends on whether we are in stock or not. If we are,
generally we can arrange shipment in 1 days after payment. If not,
it will be decided by factory production.
4: Q: How to place an order?
A: a: send us an inquiry.
b: confirm your wanted products
c: confirm the price and freight and other details
d: finish the payment
e: we arrange the shipment
f: you got your products
Warranty
All color spectrophotometer and colorimeters have one year warranty
from the purchase date. If it has something wrong during warranty,
you can send it back to us. The buyer pays for the returning
shipping cost and we will pay for the sending shipping cost.
