3NH High Precision Gloss Meter HG268 20° 60° 85° Degree Surface
Tester
1.Description
A gloss meter is a tester for determining surface gloss. Thereby,
with the gloss meter, spectral reflections of a light beam that
hits the surface, are measured. The touch screen allows for easy
navigation.
The gloss meter is applied especially in areas where it is
important that the surfaces have the same structure, and thus have
the same surface characteristics. This often happens in quality
control. Thus, the gloss meter is a measuring instrument which can
be used in many different companies.
2. Highlights
1. 20, 60 and 85° in one: from high to low gloss - have the
specified angle on hand
2. One button for all angles measurement at the same location
3. Display 5 sets of measurement data, good for comparison
4. Measuring mode: basic measurement, statistical measurement,
continuous measurement, QC measurement (only for GQC6 software).
5. Continuous mode to check uniformity over large areas
6. Connect to PC, more extend functions
7. Input gloss value manually
8. Large touch screen operation, easy to use
9. Beauty appearance, good man-machine communication interface
10. Powerful functions to meet many different requirements
11. Large storage to save over 5000 data
12. Built-in lithium ion rechargeable battery.
3. Applications
Paint,Paper,ink,Plastic,film,Bamboo,flooring,Stainless
steel,Aluminum oxidation,Stone,Ceramic tile,Leatherwear...

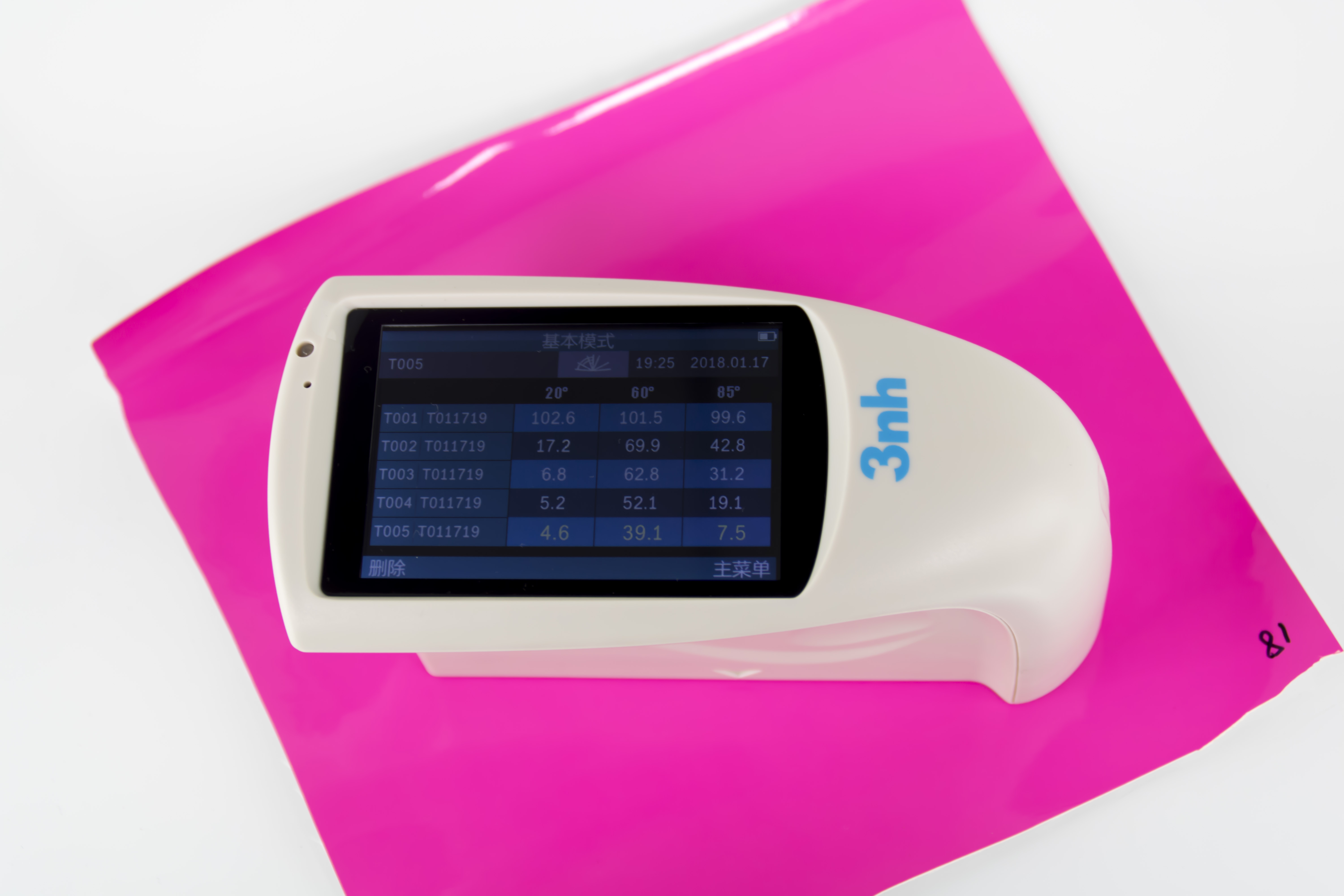

4. More pictures
5. Specifications
| HG268 Tri-angle Gloss Meter |
|
| Model: | HG268 |
| Measuring Angle | 20°/60°/85° |
| Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457 |
| Measuring Area (mm) | 20°: 10x10 60°: 9x15 85°: 5x36 |
| Measuring Range | 20°:0~1000GU 60°:0~1000GU 85°:0~160GU |
| Division Value | 0.1GU |
| Measurement Range | 0-10GU 10-100GU 100-1000GU |
| Repeatability | ± 0.1GU ± 0.2GU ± 0.2%GU |
| Reproducibility | ± 0.2GU ± 0.5GU ± 0.5%GU |
| Measurement Standard | Conform with JJG696 first class glossmeter working requirement |
| Chromaticity Corresponding | Corresponding with CIE 1931(2°) under CIE C light source |
| Errors | ±1.5 , ± 1.5% |
| Measuring Time | 0.1s |
| Dimension | L*W*H : 160mm*75mm*90mm |
| Weight | 350g |
| Language | Chinese/English |
| Battery | 3200mAh Li-ion Battery ,>10000 times(within 8 hours) |
| Display | TFT 3.5 inch |
| Interface | USB/RS-232 |
| Storage | Basic mode: 1000 |
| Software | GQC6 Quality Control Software with QC report printing functions and
more extended functions. |
| Operation Temperature | 0~40℃(32~104°F) |
| Storage Temperature | -20~50℃(-4~122°F) |
| Humidity | <85% relative humidity, no condensation |
| Standard Accessories | Power Adapter, USB cable, User Manual, GQC6 software CD (except
HG60S), Calibration Plate |
| Optional Accessories | Miniature Printer |
| Note | The specifications are subject to change without notice. |
6. Certificates
Packaging & Shipping
Material : Nylon box with carton box
Meas: 29*19*10CM
Weight:1KG
Lead Time: Within 1 working day after payment received.
How to choose gloss meter angle ?
How to choose gloss meter angle ? For early contact with the gloss
meter reader is a more confused proposition, it comes out a lot
when searching on the Internet. There is single-angle gloss meter,
three-angle gloss meter, a 45-degree gloss meter, a 60-degree gloss
meter, so which gloss meter is suitable for us to use it?
In general, gloss meter has 20 °, 45 °, 60 °, 75 °and 85
°specifications. Then how to choose gloss meter angles ? If our
customers required us what angle gloss meter to measure the gloss
data then we need choose according to the customer's request.
If the customer didn’t specify what angle, it can choose 60
°general version gloss meter, 20 °angle meter is generally used in
the gloss products higher than 70Gu, 85 °angle is generally used in
gloss products less than 10 °, 45 °And 75 °angles used less, 45
°gloss meter is mainly used for the surface gloss measurement of
plastic film, 75 °gloss meter is mainly used for enamel surface
gloss measurement.
| Gloss Range | 60° Value | Notes |
| High Gloss | >70 GU | If measurement exceeds 70 GU, change test setup to 20° |
| Medium Gloss | 10 - 70 GU | If measurement during 10- 70 GU, change test setup to 60° |
| Low Gloss | <10 GU | If measurement is less than 10 GU, change test setup to 85° |
Warranty
All color spectrophotometer and colorimeters have one year warranty
from the purchase date. If it has something wrong during warranty,
you can send it back to us. The buyer pays for the returning
shipping cost and we will pay for the sending shipping cost.
