Spain Precise Integrating Sphere Spectrophotometer NH310 with
DeltaE * ab 0.06 Colour Stain Fastness
What is a Spectrophotometer?
Spectrophotometers are color measurement devices used to capture
and evaluate color. As part of a color control program, brand
owners and designers use them to specify and communicate color, and
manufacturers use them to monitor color accuracy throughout
production.
Spectrophotometers can measure just about anything, including
liquids, plastics, paper, metal and fabrics, and help ensure that
color remains consistent from conception to delivery
The spectral reflectance curve provided by a spectrophotometer is
commonly known as the color’s “fingerprint”.
Product Introduction
Integrating Sphere Spectrophotometer NH310 is a mainstream brand colorimeter introduced by 3nh which
has synthesized the advantages of ten more traditional imported
colorimetersand has experienced ten thousands tests and applied
many innovative technologies. Accurate, Stable, Exquisite and
Affordable!
Main Features
1. Leading Humanity Design and Convenient Operation
Auto White and Black Calibration at Startup
Structure Design in line with Ergonomics
Easy-to-use Operation Interface
2. Stable Measurement Performance
The average fluctuation of △E is less than 0.06, actually more in
0.03~0.06.
Portable structure design which is more conductive to keeping the
instrument stable when using.
3. Flexible and Accurate Locating
Camera locating can solve the problem of locating a small area. The
minimum width of locating is 4mm.
Illumination locating is a fast, simple and convenient locating
function which is the original function by 3nh.
4. More Measurement Modes
Three measuring apertures for more circumstances.
Five color spaces for more color schemes selection.
Three light sources for more circumstances.
5. PC Software—Realize More Function Expansion
3nh has the intellectual property of PC software. The corresponding
software serial number and password protection are configured in
3nh colorimeter.
Be able to perform color difference analysis, color difference
cumulative analysis, chromaticity index, color sample database
management, simulating object color, etc.
6. Advanced Power Management Design
3nh is the first enterprise using high capacity Li-ion battery in
colorimeter.
3nh Li-ion battery can be repeatedly charged which will save cost.
Meanwhile, it can measure more than
3000 times on one charge to ensure the stability of long time
measurement.

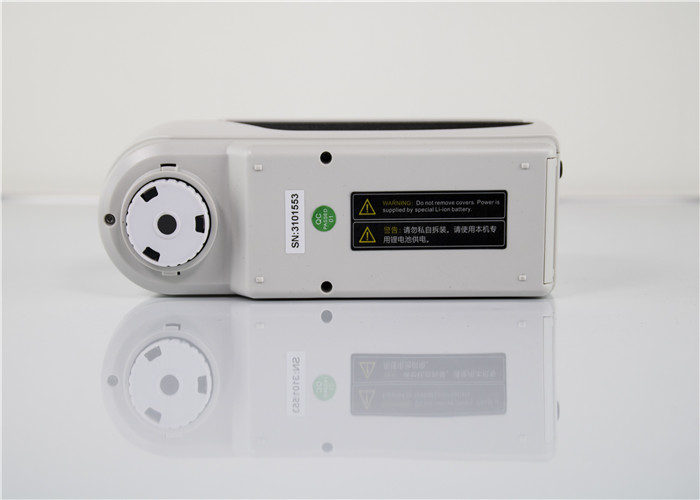

Images
Specifications
| Model Number | NH310 |
| Illuminating/Viewing Geometry | 8°/D (8° illumination, diffused viewing angle) |
| Measuring Aperture | Φ8mm&4mm |
| Integrating Sphere | Non |
| Locating Method | Camera Viewfinder Locating & Illumination Locating |
| Repetitive Error | Standard deviation ΔE*ab≤0.06 (Measurement Conditions: White
calibration plate measured 30 times at 5 seconds intervals after
white calibration performed.) |
| Inter-Instruments Error | ΔE*ab≤0.4 |
| Wavelength Pitch | Non |
| Reflectance Range | Non |
| Color Space | CIE L*a*b, CIE XYZ, CIE RGB, CIEL*u*v, CIE*C*H, |
| Color Difference Formula | ΔE*ab, ΔL*ab, ΔE*C*H, ΔECIE94, ΔEHunter |
| Display Data | Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result,
Color Offset, Color Simulation |
| Other Chromaticity Data | Whiteness&Yellowness, Color Fastness |
| Observer Angle | 10° |
| Light Sources Type | D65, A, D50 |
| Light Source Device | LED Blue Light Excitation |
| Light Source Life | 5 years, More than 1.6 million measurements |
| Sensor | Silicon Photoelectric Diode Array |
| Measuring Time | 1.5s |
| Data Storage | 100 Standards, 20000 Samples |
| Data Port | USB |
| Display Size | TFT 2.8" |
| Touch-Screen | Non |
| Operating Temperature | 0~40℃ (32℉~104℉) |
| Storage Temperature | -20℃~50℃ (-4℉~122℉) |
| Humidity | 0~85%, No condensation |
| PC Software | CQCS3 |
| Weight | 500g |
| Dimension | 205*70*100mm |
| Battery | Large Capacity Li-ion Battery |
| Standard Accessory | Power Adapter, Li-ion Battery, Operating Instruction,
CD-ROM(containing color management software), USB Cable, White
Calibration Plate, Φ8mm and Φ4mm Measuring Aperture |
| Optional Accessory | Extended Aperture(Φ8mm), Universal Test Components, Micro-Printer,
Powder Test Box |
| Certificates | CE & RoHS & TUV & FCC & ISO9001 |
Applicable Industries
Integrating Sphere Spectrophotometer NH310 is widely used in plastic, electronic, painting, coating, ink,
textile, garment, printing and dyeing, food, medical, cosmetic,
industries, scientific research institutes, schools and
laboratories. It can measure reflectance spectrum and other color
index precisely. Integrating Sphere Spectrophotometer NH310 not only can help to perform color matching and color management
studies, but also can control product quality management
accurately. The instrument is equipped with high-end color
management software which can connect PC to achieve more extension
functions.
FAQ
1: Q: Is your company accept customization?
A: We accept OEM/ ODM. Any color and any logo is welcome if placed
at least 10pcs.
2: Q:Does your products have warranty?
A: YES, We offer 1 year warranty. Our policy: Is there any quality
problem, First, send the defective machine to us and you bear the
freight. Second, we send back to you free after fixed.
3: Q: After an order placed, when to deliver?
A: It depends on whether we are in stock or not. If we are,
generally we can arrange shipment in 1 days after payment. If not,
it will be decided by factory production.
4: Q: How to place an order?
A: a: send us an inquiry.
b: confirm your wanted products
c: confirm the price and freight and other details
d: finish the payment
e: we arrange the shipment
f: you got your products
