TILO SpectriWave Lighting System TC120-4 fill light system studio lens color viewer

Introduction

TILO SpectriWave Lighting System TC120-4 is the latest upgrade product of Shenzhen TILO Standard Light Source Co., Ltd.

Provide professional lighting environment for the camera lens evaluation system.

The operation is simple and convenient, and the light source can be freely switched, the brightness of each light source can be freely adjusted, the dimming is smooth and there is no stroboscopic light, and the usage times and time of each light source are displayed. The inner wall of the light box is equipped with a high-efficiency reflector, and the exterior is equipped with a high light-transmitting diffusing plate, which has high light utilization rate and uniformity.

Product Specifications

Light box dimensions (without bracket, see Figure 1): 1302mm*803mm*100mm

Luminous surface size (see Figure 1): 1187mm*688mm

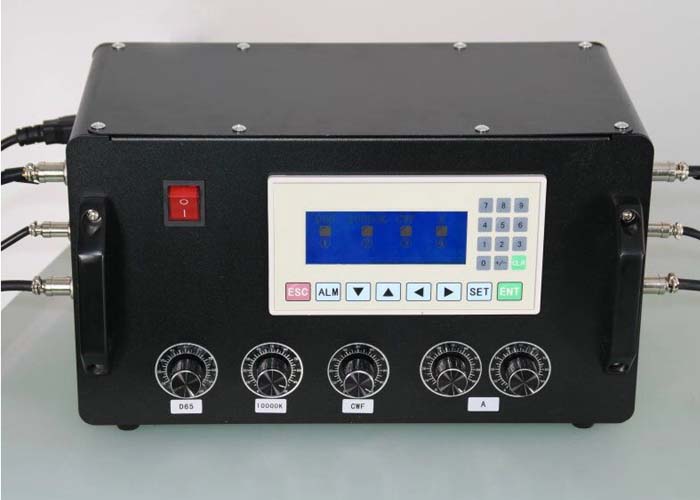

Control box dimensions (see Figure 2): 370mm * 210.5mm * 227mm

Operating environment: temperature 0-40 °C, relative humidity 80% or less (non-condensing).

Input power: AC220V, 50/60Hz, maximum power consumption 800W.

Net weight (double light box + bracket + control box): 55Kg.

Instructions

Turn on the power. Be sure to connect the power supply that meets the requirements of this product before turning on the power.

Rotate the adjustable switch to adjust the brightness according to the required requirements. The light source becomes brighter in the clockwise direction and darker in the counterclockwise direction.

After the lamp is turned on, it needs to be warmed up for 10 minutes to be used after the light color is stable.

Precautions

1. Pay attention to the proper power supply and check the power label on the back of the light box before use.

2. Place a minimum distance of 20 cm between each light box or between the light box and the wall. Make sure that the light box is kept at a safe distance from flammable and combustible materials.

3. The light box can no longer be used in an environmentally hazardous space.

4. Be careful not to place the light box in a location near wet water and water pipes and fire sprinklers. Keep the surrounding environment dry.

5. Use a clean, lint-free white cloth with water or water containing a small amount of neutral detergent to remove stains from the surface of the light box.Do not wipe with chemical solvents and scratch with hard objects.

6. When performing maintenance on the light box and replacing the light source, turn off the main power.

Packing List
