Delta E*Ab 0.04 Portable Color Matching Colorimeter YS3020 Liquid
Powder Coating Spectrophotometer
Reflectance spectrophotometers are ideal instruments for measuring
the color of all types of loose powders, regardless of their end
use. Using a 45°/0° geometry, these spectrophotometers mimic the
way the human eye sees color, only better. Without vulnerability to
social, biological, or environmental interferences,
spectrophotometric instruments are able to objectively analyze
samples for the highest level of accuracy and repeatability. As
such, they serve a critical role in the development and production
of loose powders across industries, from cosmetics to
pharmaceuticals. However, there are a number of special
considerations for loose powder color measurement that must be kept
in mind during the analytical process.
Specification
| Model | YS3020 spectrophotometer |
| Illumination/observation system | Reflect: di:8°,de:8°(diffused illumination,8-degree viewing angle) |
| Integrating sphere Size | Φ48mm |
| Light Source | Combined LED Light |
| Sensor | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength range | 400~700nm |
| Wavelength pitch | 10nm |
| Reflectance range | 0~200% |
| Measuring Aperture | 4mm/8mm/1*3mm |
| Color Space | CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB |
| Color difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00v,ΔE(Hunter) |
| Other Chromaticity Data | WI(ASTM E313, CIE/ISO, AATCC, Hunter), |
| YI(ASTM D1925, ASTM 313),TI(ASTM E313, CIE/ISO), |
| Metamerism Index MI,Staining Fastness,Color Fastness,Color
Strength, Opacity |
| Observer | 2°/10° |
| Illuminant | D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10,
F11, F12 |
| Display Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference
Values/Graph, PASS/FAIL Result, Color Offset |
| Measurement Time | 1.5s |
| Repeatability | Spectral Reflectance: standard deviation within 0.1%(400~700nm:
within 0.2%) |
| Colorimetric Value: Standard deviation within DeltaE*ab 0.04
(Measurement conditions: white calibration plate measured 30 times
at 5 seconds intervals after white calibration was performed.) |
| Inter Instrument Agreement | Within DeltaE*ab 0.2 (Average for 12 BCRA Series II color tiles) |
| Dimension | L*W*H=184*77*105mm |
| Weight | 600g |
| Battery | Li-ion battery. 5000 times within 8 hours. |
| Lamp Life | 5 years, more than 1.6 million measurements |
| Display Screen | TFT 3.5inch, Capacitive Touch Screen |
| Interface | USB/RS-232 |
| Data Memory | Standard 2000 Pcs, Sample 20000 Pcs |
| Operating Temperature | 0~40℃(32~104°F) |
| Storage temperature | -20~50℃(-4~122°F) |
| Standard Accessory | Power Adapter, Built-In Li-ion Battery, User Guide, PC Software,
White and Black Calibration Cavity, Dust Cover |
| Optional Accessory | Micro Printer, Powder Test Box |
| Notes | The specifications are subject to change without notice. |
Introduction
YS30 Series grating Color Matching Spectrophotometer adopts bluetooth and USB dual modes for wider use, and with SCI &
SCE measurement data, it is compatible with many famous brands.
8mm, 4mm or customized aperture is optional. Special UV light makes
YS3060 easy to measure sample with UV and high accuracy and
extended function PC software let it be good partner for colorist
and color quality control management.
YS3060 UV Grating Spectrophotometer
Full Illuminants + UV, 8mm&4mm Apertures, SCI&SCE,
Bluetooth Comm, High Precision.
YS3020 Grating Spectrophotometer
Multi-illuminants, Customizable Aperture, SCI&SCE, Bluetooth
Comm, High Precision.
YS3010 Grating Spectrophotometer
4 Illuminants, 8mm Aperture, SCI&SCE, Good Precision.
Comply with CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724/1,ASTM
E1164,DIN5033 Teil7, YS3010 color spectrophotometer features only
8mm single aperture. Both SCI and SCE mode makes it widely use in
many applications. It has high accuracy 0.06 based on white
calibration plate measured 30 times at 5 seconds intervals after
white calibration was performed.

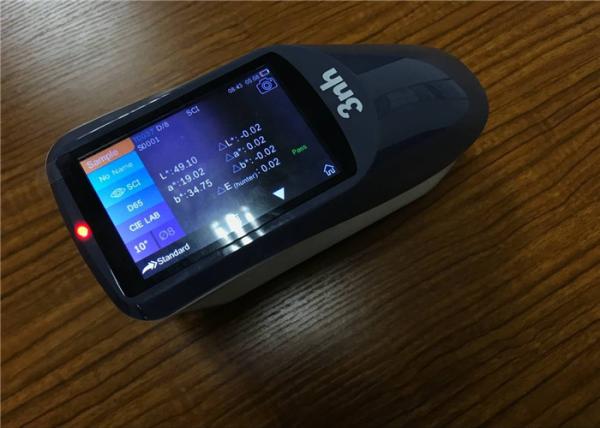

Product Images
Product Advantages
A.Perfect combination of beautiful appearance and the human body
mechanics structural design;
B.D/8 geometrical optics, conforms with CIE No.15,GB/T 3978,GB2893,
GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil
C.Use long life and low power consumption combined LED light
source, including UV/excluding UV;
D.Optional 8mm/4mm/1×3mm aperture, adapt to more samples; support
both SCI and SCE at the same time;
E.Measure sample spectra, accurate Lab data , can be used in color
matching and accurate color transmission;
F.High electronic hardware configuration: 3.5-inch TFT color
LCD,Capacitive Touch Screen, concave grating, 256 Iimage Element
Double Arrays CMOS Image Sensor;
G.USB/Bluetooth 2.1, dual mode, widely useful;
H.Super stain-resistant and stable standard white calibration
plate;
I.Large capacity storage space, over 20,000 measurement data;
J.Two standard observer angles, a variety of illuminant, a variety
of color indexes, conforms with a variety of standard colorimetric
data, meet a variety of customers' demand for color measurement;
K.Camera Locating Function, better position;
l.PC software has a powerful function extension.
Application
3nh handheld Color Matching Spectrophotometer can easily achieve color transferring , and be used as a precision
instrument for color matching system. It's widely used in plastics,
electronics, painting, ink, textile and garment, printing and
dyeing, printing paper, automotive, medical, cosmetics and food
industries, scientific research institutes, schools and
laboratories.
