Plant Fruit Vegetable Color Matching Spectrophotometer YS3010
with0-200% Reflectance Range
With vivid colors, intricate shapes, diverse and appealing flavors,
Fruits Vegetables are nature's sweets. Is it any wonder that humans
have been eating fruit vegetable in some form since the beginning
of time? The world's leading producers of fruit, vegetable and
fruit vegetable products understand the importance of color in a
consumer's perception of ripeness and flavor. That's why many
famous companies have relied on the experience and knowledge of 3nh
in providing color measurement solutions for their products.
Brief Introduction

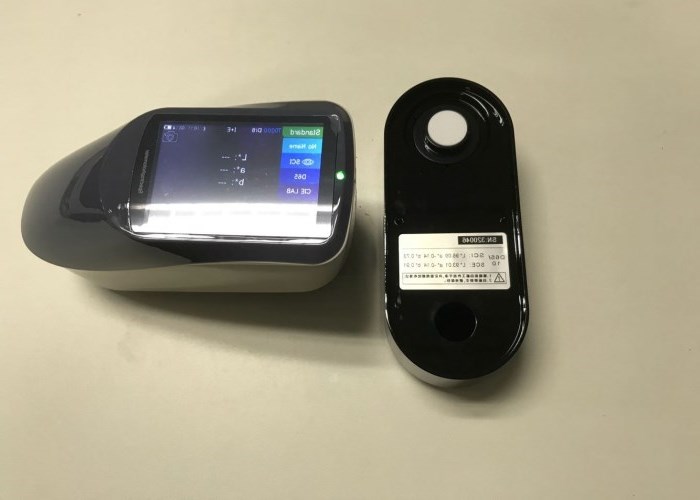

YS3010, YS3020, YS3060 Color Matching Spectrophotometer are domestically produced grating spectrophotometers independently
developed by 3nh.The instruments are stable, accurate in color
measurement and powerful in function. They led the way in the field
of portable grating spectrophotometers. Grating spectrophotometers
are widely used in scientific research institutions and
laboratories in the fields of plastic electronics, paint inks,
textile and garment printing,printing paper products, automobiles,
medical, cosmetics and food.
Main Features
A.Perfect combination of beautiful appearance and the human body
mechanics structural design;
B.D/8 geometrical optics, conforms with CIE No.15,GB/T 3978,GB2893,
GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil 7;
C.Use long life and low power consumption combined LED light
source;
D.Single 8mm aperture, support both SCI and SCE at the same time;
E.Measure sample spectra, accurate Lab data , can be used in color
matching and accurate color transmission;
F.High electronic hardware configuration: 3.5-inch TFT color
LCD,Capacitive Touch Screen, concave grating, 256 Iimage Element
Double Arrays CMOS Image Sensor;
G.USB port, widely useful;
H.Super stain-resistant and stable standard white calibration
plate;
I.Large capacity storage space, over 20,000 measurement data;
J.Two standard observer angles, a variety of illuminant, a variety
of color indexes, conforms with a variety of standard colorimetric
data, meet a variety of customers' demand for color measurement;
K.Camera Locating Function, better position;
l.PC software has a powerful function extension.
Specifications
| Model Items | YS3060 | YS3020 | YS3010 |
| Optical Geometry | Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing
angle) |
| Integrating Sphere Size | 48mm |
| Light Source | Combined LED Light, UV Light | Combined LED Light |
| Spectrophotometric Mode | Concave Grating |
| Sensor | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 400-700nm |
| Wavelength Interval | 10nm |
| Semiband Width | 10nm |
| Measured Reflectance Range | 0-200% |
| Measuring Aperture | Dual Aperture: 10mm/8mm & 5mm/4mm | Customized Aperture: 8mm/4mm/1×3mm | Single Aperture: 8mm/10mm |
| Specular Component | SCI&SCE |
| Color Space | CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB |
| Color Difference Formula | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter) |
| Other Colorimetric Index | WI(ASTM E313, CIE/ISO, AATCC, Hunter), |
| YI(ASTM D1925, ASTM 313),TI(ASTM E313, CIE/ISO), |
| Metamerism Index MI, Staining Fastness, Color Fastness, Color
Strength, Opacity, 8° Glossiness |
| Observer Angle | 2°/10° |
| Illuminant | D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10,
F11, F12 | D65, A, C, D50, D55, D75, F2, F7, F11 | D65, A, C, D50 |
| Displayed Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference
Values/Graph, PASS/FAIL Result, Color Offset |
| Measuring Time | 2.6s |
| Repeatability | MAV/SCI: ΔE*≤0.03 | MAV/SCI: ΔE*≤0.05 | MAV/SCI: ΔE*≤0.06 |
| Inter-instrument Error | MAV/SCI: ΔE*≤0.15 | MAV/SCI: ΔE*≤0.2 | MAV/SCI: ΔE*≤0.4 |
| Measurement Mode | Single Measurement, Average Measurement |
| Locating Method | Camera View Finder Locating |
| Battery | Li-ion battery. 5000 measurements within 8 hours |
| Dimension | L*W*H=184*77*105mm |
| Weight | 600g |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display | 3.5-inch TFT color LCD, Capacitive Touch Screen |
| Data Port | USB, Bluetooth 4.0 | USB |
| Data Storage | Standard 2000 Pcs, Sample 20000 Pcs |
| Language | English, Chinese |
| Operating Environment | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m |
| Storage Environment | -20~50℃, 0~85%RH (no condensing) |
| Standard Accessory | Power Adapter, Built-In Li-ion Battery, User Guide, PC Software,
White and Black Calibration Cavity, Dust Cover |
| Optional Accessory | Micro Printer, Powder Test Box |
| Notes: The specifications are subject to change without notice. |
Applications
Package Images
Warranty
All our spectrophotometer gloss meter products have one year
warranty except consumables from the purchase date. If it has
something wrong during warranty, you can send it back to us. The
buyer pays for the returning shipping cost and we will pay for the
sending shipping cost.
