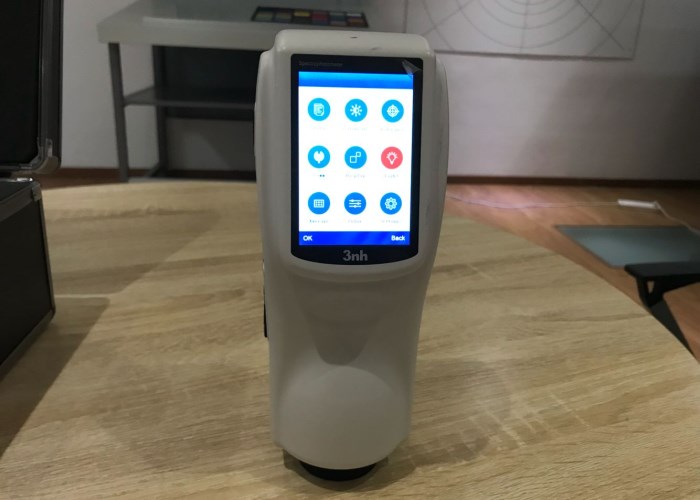

    3nh 45/0 Color Matching Spectrophotometer NS800 color pictures pictorials poster notes Color Tester

    Ask Lasest Price
    Brand Name : 3nh
    Model Number : NS800
    Certification : CE / ROHS / TUV / FCC / ISO9001:2015
    Price : Negotiable
    Payment Terms : T/T, Paypal, Western Union
    Supply Ability : 5000pcs per month
    Delivery Time : 1 working day
    • Product Details
    • Company Profile

    3nh 45/0 Color Matching Spectrophotometer NS800 color pictures pictorials poster notes Color Tester

    3nh 45/0 Color Matching Spectrophotometer NS800 color pictures pictorials poster notes Color Tester

    3nh's instruments are designed for the paper industry's unique challenges. They deliver consistent quality and appearance from sheet to sheet, ensuring perfect repeatability across your samples and facilities. We offer instruments with a larger viewing area to deliver unsurpassed quality and confidence in your results.


    3nh's innovative products are used by major food processors and packagers,also used by research facilities in universities worldwide.

    Product Description


    NS800 spectrophotometer uses the principle of combination LED precision spectroscopy, separates the light according to a certain wavelength interval, and adopts groups of sensor array to perform sensitive analysis.


    NS800 spectrophotometer with higher accuracy is very sensitive to any colors. It not only can measure L*ab value and delta E value accurately, but also can display spectral reflectance curve which can realize color matching function and calculate the real parameters of various color formulas.


    In the R&D process, 3nh scientists and engineers measured various color samples from dark to light, white to black, and other standard color boards provided by ISO (International Standardization Organization). The parameters of test results are integrating with international standards.


    3nh also analyzed the parameters from Japan, American and Germany spectrophotometers. The differences of L*ab absolute value between them are within ±1.5. Compared the L*ab value between NS800 and Japan spectrophotometer, when measuring any color objects, the biggest L*ab difference is within ±1.0. This is a breakthrough of 3nh high technology which realizes to be fully compatible with international market.


    Product Application



    Nowadays, color management instruments, like spectrophotometers, colorimeters, have been widely applied to industries like painting, lacquer, ink, coating, leather, paper, printing, plastics, electronics, furnitures, wood, decorating, ceramics, tiles, metals, hardware, marble, electroplating, package, food, cosmetics, pharmacy, cloth, garments, textiles and traffic signage, etc. And also, schools and laboratories need the color measuring instruments to teach and study.

    3nh 45/0 Color Matching Spectrophotometer NS800 color pictures pictorials poster notes Color Tester
    Technical Details
    NS800 Precise Spectrophotometer
    Model Number
    NS800
    Illuminating/Viewing Geometry
    45°/0 (45° ring-shaped illumination, vertical viewing angle),
    Conform to the Standard CIE No.15, GB/T 3978.
    Measuring Aperture
    Φ8mm
    Integrating Sphere Diameter
    Φ58mm
    Repetitive Error
    Spectral Reflectance: Standard deviation within 0.1%(400~700nm: within 0.2%)
    Colorimetric Value: Standard deviation ΔE*ab≤0.04 (Measurement Conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration performed.)
    Inter-Instruments Error
    ΔE*ab≤0.2 (Average value of the measurement results of the 12 tint plates of BCRA series Ⅱ)
    Wavelength Range
    400~700nm
    Wavelength Pitch
    10nm
    Reflectance Range
    0~200%
    Color Space
    CIE LAB, XYZ, Yxy, LCh, CIE LUV
    Color Difference Formula
    ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v
    Display Data
    Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation
    Other Chromaticity Data
    WI(ASTM E313, CIE/ISO, AATCC, Hunter),
    YI(ASTM D1925, ASTM 313),
    TI(ASTM E313, CIE/ISO),
    Metamerism Index (Mt),
    Color Strength, Color Stain, Color Fastness
    Observer Angle
    2°/10°
    Light Sources Type
    D65, D50, A, C, D55, D75, F2, F6, F7, F8, F10, F11, F12
    Light Source Device
    Combined LED Light
    Light Source Life
    5 years, More than 1.6 million measurements
    Sensor
    Silicon Photoelectric Diode Array
    Measuring Time
    1.5s
    Data Storage
    1000 Standards, 15000 Samples
    Data Port
    USB&RS232
    Display Size
    TFT 3.5"
    Touch-Screen
    Yes
    Operating Temperature
    0~40℃(32~104℉)
    Storage Temperature
    -20~50℃(-4~122℉)
    PC Software
    SQC8
    Weight
    600g
    Dimension
    90*77*230mm
    Battery
    Large Capacity Li-ion Battery
    Standard Accessory
    Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM(containing color management software), Data Cable, White and Black Calibration Cavity, Protective Cover and Wrist Strap.
    Optional Accessory
    Universal Test Components, Micro Printer, Powder Test Box
    Certificates
    CE & RoHS & TUV & FCC & ISO9001
    Product Details


    3nh 45/0 Color Matching Spectrophotometer NS800 color pictures pictorials poster notes Color Tester

    With the configuration of universal test component and powder test box, measurements of liquid, paste, powder and particle can be implemented without hesitation.

    3nh 45/0 Color Matching Spectrophotometer NS800 color pictures pictorials poster notes Color Tester

    Main Features



    1) Simple structure in linear type ,easy in installation and maintation.

    2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

    3) High pressure double crank to control the die opening and closing.

    4) Running in a high automatization and intellectualization,no pollution

    5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

    Machine Parts

    Name: Calibration Board

    Brand: 3nh

    Original: China

    used for spectrophotometer calibration

    Machine Parts

    Name: SQC8 Color Quality Control System
    Brand: 3nh
    Original: China
    CQC8 can make color difference analysis, color difference cumulative analysis, color sample database management, chromaticity index analysis, simulated object color and print, etc. It is the right-hand man of color quality management.

    Machine Parts(choosing parts)

    Name: Powder Test Box
    Brand:3nh
    Original: China
    Features: Easy to use; Focus on measuring powder.

    Machine Parts(choosing parts)

    Name: Universal Test Components
    Brand: 3nh

    Original: China
    Features: Powerful accessory with high sensitivity which is used to measure liquid, paste and powder.

    Packing & Delivery
    Packaging
    Size
    40.5(L)*20.9(W)*31.9(D)
    Weight
    9 KG
    Packaging Details

    The normal package is box packing.
