Ink Plastic Digital Gloss Measurement Instruments NHG60 60° Sheen Surface Gloss Reader

Product Description

1. Brief Introduction of Digital Gloss Measurement Instruments NHG60

1) NHG60 portable 60 degree gloss meter with touch screen 1000gu, whose complete proprietary intellectual property rights are fully owned by 3nh, was researched and developped complying with the international standard ISO2813 and China national standard GB/T9754, also the standard ASTM D 523 and ASTM D 2457.

As the whole world's first model of glossmeter which is fully screen-touch operational and with a ultra-large display, NHG60 features the accurate measurement, simple operation and stable performance. 5 groups of data can be displayed on screen simultaneously, easy to compare. The standard data value can also be manually input.

NHG60 has three measuring modes: Basic Mode, the simplest sample measurement mode; Statistical Mode, the measuring mode with statistical function, display the measurement value, average value, max value, min value, standard deviation value, differential value and the PASS/FAIL result; Continous Mode, the times of measurement and time interval can be set before measuring, when press the measuring key, the instrument will operate according to the settings.

Now NHG60 has been widely used by our customers all over the world in many industries, like painting, lacquer, ink, coating, leather, paper, printing, plastics, electronics, furnitures, wood, decorating, ceramics, tiles, metals, hardware, marble, electroplating, package, food, cosmetics, pharmacy, cloth, garment, textiles, traffic signage, etc.

2) Features

1. 60° angle for semi gloss

2. Display 5 sets of measurement data, good for comparison

3. Measuring mode: basic measurement, statistical measurement, continuous measurement, QC measurement (only for GQC6 software).

4. Continuous mode to check uniformity over large areas

5. Connect to PC, more extend functions

6. Input gloss value manually

7. Large touch screen operation, easy to use

8. Beauty appearance, good man-machine communication interface

9. Powerful functions to meet many different requirements

10. Large storage to save over 5000 data

11. Built-in lithium ion rechargeable battery.

3)Specifications

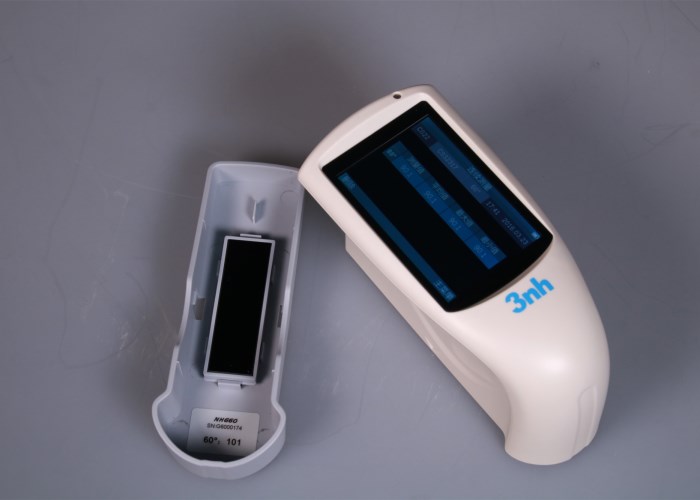

4)More pictures for Digital Gloss Measurement Instruments NHG60

5) Application for Digital Gloss meter NHG60

Paint,Paper,ink,Plastic,film,Bamboo,flooring,Stainless steel,Aluminum oxidation,Stone,Ceramic tile,Leatherwear...

Packaging & Shipping
Packing Material : Nylon box with carton box
Packing Size 29*19*10CM
Packing Weight:1KG
Delivery time: Within 1 working day after payment received.

How to choose gloss meter angle ?

How to choose gloss meter angle ? For early contact with the gloss meter reader is a more confused proposition, it comes out a lot when searching on the Internet. There is single-angle gloss meter, three-angle gloss meter, a 45-degree gloss meter, a 60-degree gloss meter, so which gloss meter is suitable for us to use it?

In general, gloss meter has 20 °, 45 °, 60 °, 75 °and 85 °specifications. Then how to choose gloss meter angles ? If our customers required us what angle gloss meter to measure the gloss data then we need choose according to the customer's request.

If the customer didn’t specify what angle, it can choose 60 °general version gloss meter, 20 °angle meter is generally used in the gloss products higher than 70Gu, 85 °angle is generally used in gloss products less than 10 °, 45 °And 75 °angles used less, 45 °gloss meter is mainly used for the surface gloss measurement of plastic film, 75 °gloss meter is mainly used for enamel surface gloss measurement.

Warranty

All color spectrophotometer and colorimeters have one year warranty from the purchase date. If it has something wrong during warranty, you can send it back to us. The buyer pays for the returning shipping cost and we will pay for the sending shipping cost.
