    NH310 CIE LAB Portable Spectrophotometer Colorimeter 8mm 4mm Aperture Color Analysis Chroma meter

    Ask Lasest Price
    Brand Name : 3nh
    Model Number : NH310
    Certification : CE / ROHS / TUV / ISO9001:2015
    Price : Negotiable
    Payment Terms : T/T, Paypal, Western Union
    Supply Ability : 5000pcs per month
    Delivery Time : 1 working day
    • Product Details
    • Company Profile

    NH310 CIE LAB Portable Spectrophotometer Colorimeter 8mm 4mm Aperture Color Analysis Chroma meter

    NH310 CIE LAB Portable Spectrophotometer Colorimeter 8mm 4mm Aperture Color Analysis Chroma meter


    Brief Introduction



    NH310 is a mainstream brand Portable Spectrophotometer Colorimeter introduced by 3nh which has synthesized the advantages of ten more traditional imported colorimetersand has experienced ten thousands tests and applied many innovative technologies. Accurate, Stable, Exquisite and Affordable!



    Applications



    Nowadays, color management instruments, like Portable Spectrophotometer Colorimeter have been widely applied to industries like painting, lacquer, ink, coating, leather, paper, printing, plastics, electronics, furnitures, wood, decorating, ceramics, tiles, metals, hardware, marble, electroplating, package, food, cosmetics, pharmacy, cloth, garments, textiles and traffic signage, etc. And also, schools and laboratories need the color measuring instruments to teach and study.



    Parameters



    NH310 Precise Colorimeter

    Model Number

    NH310

    Illuminating/Viewing Geometry

    8°/D (8° illumination, diffused viewing angle)

    Measuring Aperture

    Φ8mm&4mm

    Integrating Sphere

    Non

    Locating Method

    Camera Viewfinder Locating & Illumination Locating

    Repetitive Error

    Standard deviation ΔE*ab≤0.06 (Measurement Conditions: White calibration plate measured 30 times at 5 seconds intervals after white calibration performed.)

    Inter-Instruments Error

    ΔE*ab≤0.4

    Wavelength Range

    Non

    Wavelength Pitch

    Non

    Reflectance Range

    Non

    Color Space

    CIE L*a*b, CIE XYZ, CIE RGB, CIEL*u*v, CIE*C*H,
    Whiteness&Yellowness, Color Fastness

    Color Difference Formula

    ΔE*ab, ΔL*ab, ΔE*C*H, ΔECIE94, ΔEHunter

    Display Data

    Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation

    Other Chromaticity Data

    Non

    Observer Angle

    10°

    Light Sources Type

    D65, A, D50

    Light Source Device

    LED Blue Light Excitation

    Light Source Life

    5 years, More than 1.6 million measurements

    Sensor

    Silicon Photoelectric Diode Array

    Measuring Time

    1.5s

    Data Storage

    100 Standards, 20000 Samples

    Data Port

    USB

    Display Size

    TFT 2.8"

    Touch-Screen

    Non

    Operating Temperature

    0~40℃ (32℉~104℉)

    Storage Temperature

    -20℃~50℃ (-4℉~122℉)

    Humidity

    0~85%, No condensation

    PC Software

    CQCS3

    Weight

    500g

    Dimension

    205*70*100mm

    Battery

    Large Capacity Li-ion Battery

    Standard Accessory

    Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM(containing color management software), USB Cable, White Calibration Plate, Φ8mm and Φ4mm Measuring Aperture

    Optional Accessory

    Extended Aperture(Φ8mm), Universal Test Components, Micro-Printer, Powder Test Box

    Certificates

    CE & RoHS & TUV & FCC & ISO9001

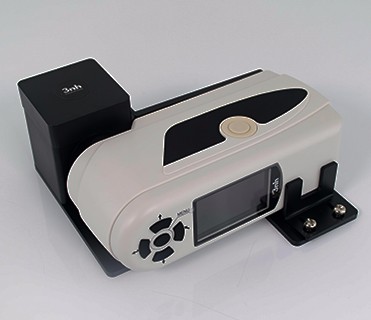

    Photos





    NH310 CIE LAB Portable Spectrophotometer Colorimeter 8mm 4mm Aperture Color Analysis Chroma meter


    NH310 CIE LAB Portable Spectrophotometer Colorimeter 8mm 4mm Aperture Color Analysis Chroma meter

    NH310 CIE LAB Portable Spectrophotometer Colorimeter 8mm 4mm Aperture Color Analysis Chroma meter

    Main Features



    The repeatable accuracy of NH310 is: DE<0.08.
    NH310 adopts a wide range of innovative technologies:
    1. Both camera locating and illumination locating
    2. Built-in standard white calibration plate; Automatic calibration at startup
    3. Optional 8mm extended aperture, available for measuring concave surface
    4. Configuring 8mm & 4mm apertures which can measure colors of any item


    Calibration Board

    Name: Calibration Board

    Brand: 3nh

    NH310 CIE LAB Portable Spectrophotometer Colorimeter 8mm 4mm Aperture Color Analysis Chroma meter

    Original: China

    used for colorimeter calibration


    CQCS3 Color Quality Control System

    Name: CQCS3 Color Quality Control SystemBrand: 3nhOriginal: China


    CQCS3 can make color difference analysis, color difference cumulative analysis, color sample database management, chromaticity index analysis, simulated object color and print, etc. It is the right-hand man of color quality management.


    NH310 CIE LAB Portable Spectrophotometer Colorimeter 8mm 4mm Aperture Color Analysis Chroma meter


    Measuring aperture



    Name: measuring aperture
    Brand:

    3nh
    Original: Chinafix it on the instrument and used to measure the surface.


    Measuring aperture protective lid

    Used to protect measuring aperture from dirt, water etc.

    NH310 CIE LAB Portable Spectrophotometer Colorimeter 8mm 4mm Aperture Color Analysis Chroma meter

    NH310 CIE LAB Portable Spectrophotometer Colorimeter 8mm 4mm Aperture Color Analysis Chroma meter


    Mini printer(choosing parts)

    This mini printer can connect to any model colorimeter and spectrophotometer of 3nh brand and it can print test results without the computer.

    Size: 180*110*90mm

    Paper size: 57mm
    Accessory: power adaptor, usb cable


    Universal Test Components(choosing parts)

    Name: Universal Test Components
    Brand: 3nh

    Original: China
    Features: Powerful accessory with high sensitivity which is used to measure liquid, paste and powder.


    NH310 CIE LAB Portable Spectrophotometer Colorimeter 8mm 4mm Aperture Color Analysis Chroma meter


    FAQ



    1: Q: Is your company accept customization?
    A: We accept OEM/ ODM. Any color and any logo is welcome if placed at least 10pcs.

    2: Q:Does your products have warranty?
    A: YES, We offer 1 year warranty. Our policy: Is there any quality problem, First, send the defective machine to us and you bear the freight. Second, we send back to you free after fixed.

    3: Q: After an order placed, when to deliver?
    A: It depends on whether we are in stock or not. If we are, generally we can arrange shipment in 1 days after payment. If not, it will be decided by factory production.

    4: Q: How to place an order?
    A: a: send us an inquiry.
    b: confirm your wanted products
    c: confirm the price and freight and other details
    d: finish the payment
    e: we arrange the shipment
    f: you got your products
