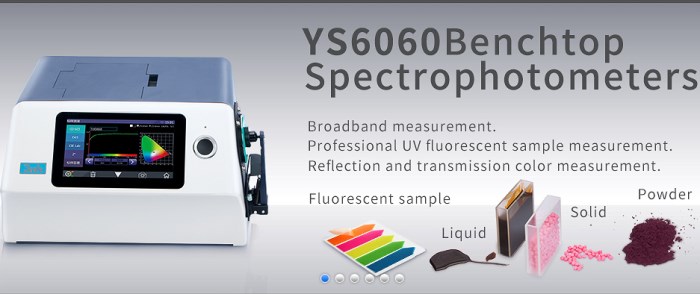

Laboratory Benchtop Paint Matching Spectrophotometer YS6060 360-780nm Colour difference Meter

Brief Introduction

YS6060 is a benchtop grating spectrophotometer which is developed by 3nh independently with independent intellectual property, both Reflection&Transmission Can Be Detected. YS6060 has many features, like 7 inches TFT capacitive touch screen display, full illuminants, reflective d/8 and transmissive d/0 geometry(including or excluding UV). With very stable and precise color measurement, large storage and powerful PC software all makes YS6060 ideal for color analysis within R&D and laboratory environments.

Product Highlights

Never Settle--Choose The Professional Spectrophotometer

Plastic Sample

Reflection Measurement: d/8°, De:8° Structure (Diffuse Backlight, 8°Direction) Conforms To 1s07724/1 CIE, ASTM, DIN AND JIS Standards

Transmission Sample

Transmission Measurement Using d/0°(Diffuse Illumination 0°Direction Reception) In Accordance With ISO, CIE, ASTM AND DIN Standards

Liquid, Powder, Solid Sample Measurement

360~780nm Band Test, Professional Uv Sample Measurement, Consistently And Accurately Display Sample Chromaticity Value, Spectral Curve/Data, Color Bias.

Measuring Aperture

Automatic Identification Of Aperture, 25.4/15/8/4mm Four Apertures Can Be Switched At The Same Time, Taking Into Account The Special Needs Of Customers.

Specification

More Pictures

Applications

YS6060 benchtop spectrophotometer is used to do precise color analysis and transmission in laboratories. It can be widely applied in different industries, such as plastics, electronics, paint and ink, printing, garments, leather, paper, auto, medical, cosmetics, food, science institutes, laboratories.

Why use a colorimeter

When people observe the color of a product with the naked eye, the color information of the product can only be described in an abstract language. This is a certain inconvenience for industrial color communication. Therefore, in order to better detect the color and improve the color quality of industrial products, industrial production now uses precision colorimeter to measure the color information of the product. The purpose is to quantify the abstract color into specific color data, so whether it is detection or analysis or communication has become easier.

Advantages of precision colorimeter measurements

People's perception of monochrome changes with the background, the illumination source, and the emotion of the color measurer itself. These factors completely affect the accuracy of the results of color measurement, and people began to use precision colorimeter in order to improve the correctness and stability of product measurement. Precision colorimeter has the same sensitivity as the human eye box, but as the precision colorimeter uses the same standard light source and lighting environment to measure, the color information measured by both the indoor and outdoor, day and night, and the operator is the same. This makes the measurement simple and accurate and free from subjective factors and external environment.
In addition, the precision color difference meter can completely reveal the subtle chromatic aberration problem that is difficult to be discovered by the human eye. The actual difference between the two colors is almost the same as that of the human eye. However, this color difference still exists. In the industry where color accuracy is not high, these subtle chromatic aberrations may not have much impact, but in the industry where color quality is strictly required, such subtle chromatic aberration can be said to be fatal. The precision colorimeter can perfectly reveal the sharp color difference. Since the precision colorimeter is used to measure the result to the operator in digital form, so comparing the color digital information between the two products makes it easy to find subtle color changes. Controlling the color details in production is inseparable from precision colorimeter.
