Reflect: di:8°,de:8°(diffused illumination,8-degree viewing angle)

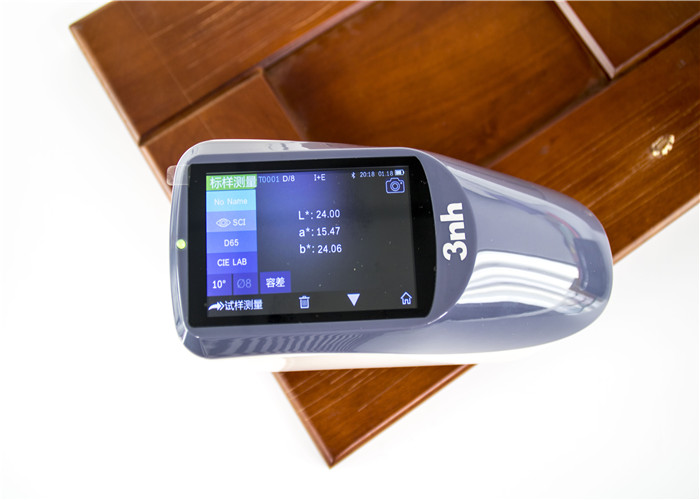

CIE Lab Plastic Injection industry Spectrophotometer YS3010
YS3010, YS3020, YS3060 are domestically produced grating
spectrophotometers independently developed by 3nh.The instruments
are stable, accurate in color measurement and powerful in function.
They led the way in the field of portable grating
spectrophotometers. Grating spectrophotometers are widely used in
scientific research institutions and laboratories in the fields of
plastic electronics, paint inks, textile and garment
printing,printing paper products, automobiles, medical, cosmetics
and food.
Under the D8 geometric optical illumination recommended by CIE, the
grating spectrophotometer can accurately measure the SCI and SCE
reflectance data of the sample/fluorescent sample, and can
accurately measure various color difference formulas and color
indices in multiple color spaces. And expression. With the
instrument, it is easy to transfer the color accurately, and it can
also be used as a detection device for a precise color matching
system. The instrument is also widely used in the control of color
quality in various products. The instrument is equipped with
high-end color management software, connected to the computer for
more expansion.
Advantages:
A. Perfect combination of beautiful appearance and the human body
mechanics structural design;
B. D/8 geometrical optics, conforms with CIE No.15,GB/T
3978,GB2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil
C. Use long life and low power consumption combined LED light
source
D. Single 8mm aperture, support both SCI and SCE at the same time;
E. Measure sample spectra, accurate Lab data , can be used in color
matching and accurate color transmission;
F. High electronic hardware configuration: 3.5-inch TFT color
LCD,Capacitive Touch Screen, concave grating, 256 Iimage Element
Double Arrays CMOS Image Sensor;
G. USB port, widely useful;
H. Super stain-resistant and stable standard white calibration
plate;
I. Large capacity storage space, over 20,000 measurement data;
J. Two standard observer angles, a variety of illuminant, a variety
of color indexes, conforms with a variety of standard colorimetric
data, meet a variety of customers' demand for color measurement;
K. Camera Locating Function, better position;
l. PC software has a powerful function extension.
Parameter
| Model Items | YS3060 | YS3020 | YS3010 |
| Optical Geometry | Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing
angle) |
| Integrating Sphere Size | 48mm |
| Light Source | Combined LED Light, UV Light | Combined LED Light |
| Spectrophotometric Mode | Concave Grating |
| Sensor | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 400-700nm |
| Wavelength Interval | 10nm |
| Semiband Width | 10nm |
| Measured Reflectance Range | 0-200% |
| Measuring Aperture | Dual Aperture: 10mm/8mm & 5mm/4mm | Customized Aperture: 8mm/4mm/1×3mm | Single Aperture: 8mm/10mm |
| Specular Component | SCI&SCE |
| Color Space | CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB |
| Color Difference Formula | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter) |
| Other Colorimetric Index | WI(ASTM E313, CIE/ISO, AATCC, Hunter), |
| YI(ASTM D1925, ASTM 313),TI(ASTM E313, CIE/ISO), |
| Metamerism Index MI, Staining Fastness, Color Fastness, Color
Strength, Opacity, 8° Glossiness |
| Observer Angle | 2°/10° |
| Illuminant | D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10,
F11, F12 | D65, A, C, D50, D55, D75, F2, F7, F11 | D65, A, C, D50 |
| Displayed Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference
Values/Graph, PASS/FAIL Result, Color Offset |
| Measuring Time | 2.6s |
| Repeatability | MAV/SCI: ΔE*≤0.03 | MAV/SCI: ΔE*≤0.05 | MAV/SCI: ΔE*≤0.06 |
| Inter-instrument Error | MAV/SCI: ΔE*≤0.15 | MAV/SCI: ΔE*≤0.2 | MAV/SCI: ΔE*≤0.4 |
| Measurement Mode | Single Measurement, Average Measurement |
| Locating Method | Camera View Finder Locating |
| Battery | Li-ion battery. 5000 measurements within 8 hours |
| Dimension | L*W*H=184*77*105mm |
| Weight | 600g |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display | 3.5-inch TFT color LCD, Capacitive Touch Screen |
| Data Port | USB, Bluetooth 4.0 | USB |
| Data Storage | Standard 2000 Pcs, Sample 20000 Pcs |
| Language | English, Chinese |
| Operating Environment | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m |
| Storage Environment | -20~50℃, 0~85%RH (no condensing) |
| Standard Accessory | Power Adapter, Built-In Li-ion Battery, User Guide, PC Software,
White and Black Calibration Cavity, Dust Cover |
| Optional Accessory | Micro Printer, Powder Test Box |
| Notes: The specifications are subject to change without notice. |
Spectrophotometer can be used in:
plastics, electronics, painting, ink, textile and garment, printing
and dyeing, printing paper, automotive, medical, cosmetics and food
industries, scientific research institutes, schools and
laboratories.
