    Singapore TFT 3.5 Inch single Angle Portable Paint Gloss Meter HG60 Ink Car Film Furniture Measurement

    Ask Lasest Price
    Brand Name : 3nh
    Model Number : HG60
    Certification : CE / ROHS / FCC / ISO9001:2015,TUV
    Price : Negotiable
    Payment Terms : T/T, Paypal,, Western Union
    Supply Ability : 5000pcs per month
    Delivery Time : 1 working day
    • Product Details
    • Company Profile

    Singapore TFT 3.5 Inch single Angle Portable Paint Gloss Meter HG60 Ink Car Film Furniture Measurement

    Singapore TFT 3.5 Inch single Angle Portable Paint Gloss Meter Ink Car Film Furniture Gloss Measurement



    Product Introduction

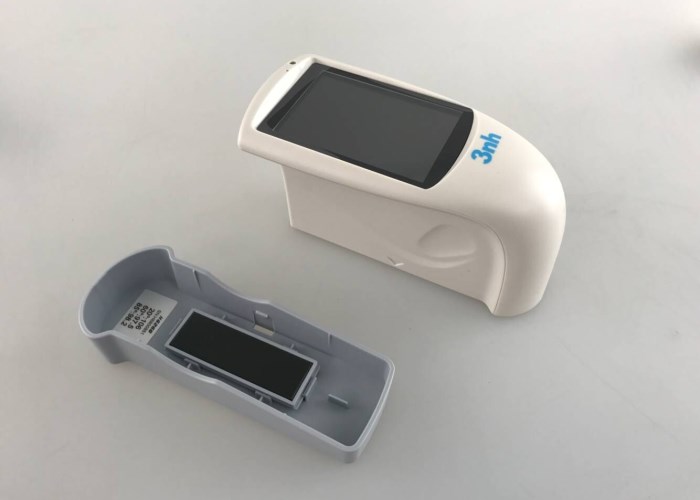

    HG60 portable gloss meter features with 60° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with international standards of ASTM D523, ASTM D2457. HG268 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source. The measuring aperture of portable gloss meter HG60 is 9x15mm.

    HG60 gloss meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc.



    Advantages



    1. 60° angle for semi gloss
    2. Concise appearance, feel good
    3. Display 5 sets of measurement data, good for comparison
    4. Built-in lithium ion rechargeable battery
    5. Basic model measurement can meet basic glossiness testing requirements
    6. Connect to PC, more extend functions
    7. One button for all angles measurement at the same location
    8. Comply with international standards
    9. Stable performance, easy to read data.




    GQC6 Software Introduction



    GQC6 software is used with 3nh gloss meter for PC connection, measurement, data management, data export, print reports, etc.



    Parameters



    ModelHG60
    Measuring Angle60°, Comply with Standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
    Measuring Area9x15mm
    Measuring Range0~1000GU
    Division Value0.1GU
    Measurement Range Repeatability Reproducibility0-10GU 10-100GU 100-2000GU
    ± 0.1GU ± 0.2GU ± 0.2%GU
    ± 0.2GU ± 0.5GU ± 0.5%GU
    Measurement StandardConform to the Working Requirements for JJG696 First Class Glossmeter
    Chromaticity ResponseCorresponding with CIE 1931(2°) under CIE C Light Source
    Tolerance±1.5, ± 1.5%
    Measuring Time0.1s
    Display SizeTFT 3.5"
    Touch-ScreenNo
    Data PortUSB & RS232
    LanguageChinese/English
    Battery3200mAh Li-ion Battery , >10000 times(within 8 hours)
    Dimension160*75*90mm
    Weight350g
    StorageBasic Mode: 1000
    SoftwareGQC6 Quality Control Software with QC Report Printing Functions and More Extended Functions.
    Operation Temperature0~40℃(32~104℉)
    Storage Temperature-20~50℃(-4~122℉)
    Humidity<85% Relative Humidity, No Condensation
    Standard AccessoriesPower Adapter, USB Cable, User Manual, CD (Including QC Software), Calibration Plate
    Optional AccessoriesMiniature Printer






    Details






    Application
