Digital Small Aperture Professional Precision Mini Gloss Meters NHG60M 60° Surface Gloss Checker

What is a small aperture gloss meter

Small Aperture gloss meter is relative to conventional gloss meters. Small aperture -- means that such gloss meters have a measurement aperture that is smaller than Conventional 85° gloss meter measurement aperture is 5*36mm, while the small aperture gloss meter NHG60M measurement aperture only 1.5*2mm. So named small aperture gloss meter.

Use of a small aperture gloss meter

From the gloss meter detection principle, we can know that the detection of gloss is launching a steady light through the light source, then through the lens to the measured object and reflects the light through the measured object, the reflected light is reflected back to the sensor through the lens and filter,to measure the degree of gloss via the amount of reflected light received. This objectively requires that the path of light can not be interfered by the external light. The small aperture gloss meter is unique in that the measurement aperture at the bottom is smaller than the conventional one, and it can fit more closely when measuring the surface gloss of an irregular (curved) workpiece.

Small aperture gloss meter is now widely used in industrial production. Some special hardware and plastic workpieces, with curved surfaces, or smaller in size, can not be detected by a conventional gloss meter such as a car bridge deck, a car steering wheel surface, a curved operation console panel, and the anode strip of a relatively small phone .

Applications

Professional Gloss Meters NHG60M micro aperture gloss meter adopts small aperture 1.5*2mm, with 60° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with the standards of ASTM D523, ASTM D2457. NHG60 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.
NHG60M gloss meter can test material with gloss (0-1000Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.

Features

1. Small aperture: 1.5*2mm
2. 60° angle for semi gloss
3. Display 5 sets of measurement data, good for comparison
4. Measuring mode: basic measurement, statistical measurement, continuous measurement, QC measurement (only for GQC6 software).
5. Continuous mode to check uniformity over large areas
6. Connect to PC, more extend functions
7. Input gloss value manually
8. Large touch screen operation, easy to use
9. Beauty appearance, good man-machine communication interface
10. Powerful functions to meet many different requirements
11. Large storage to save over 5000 data
12. Built-in lithium ion rechargeable battery.

Specifications

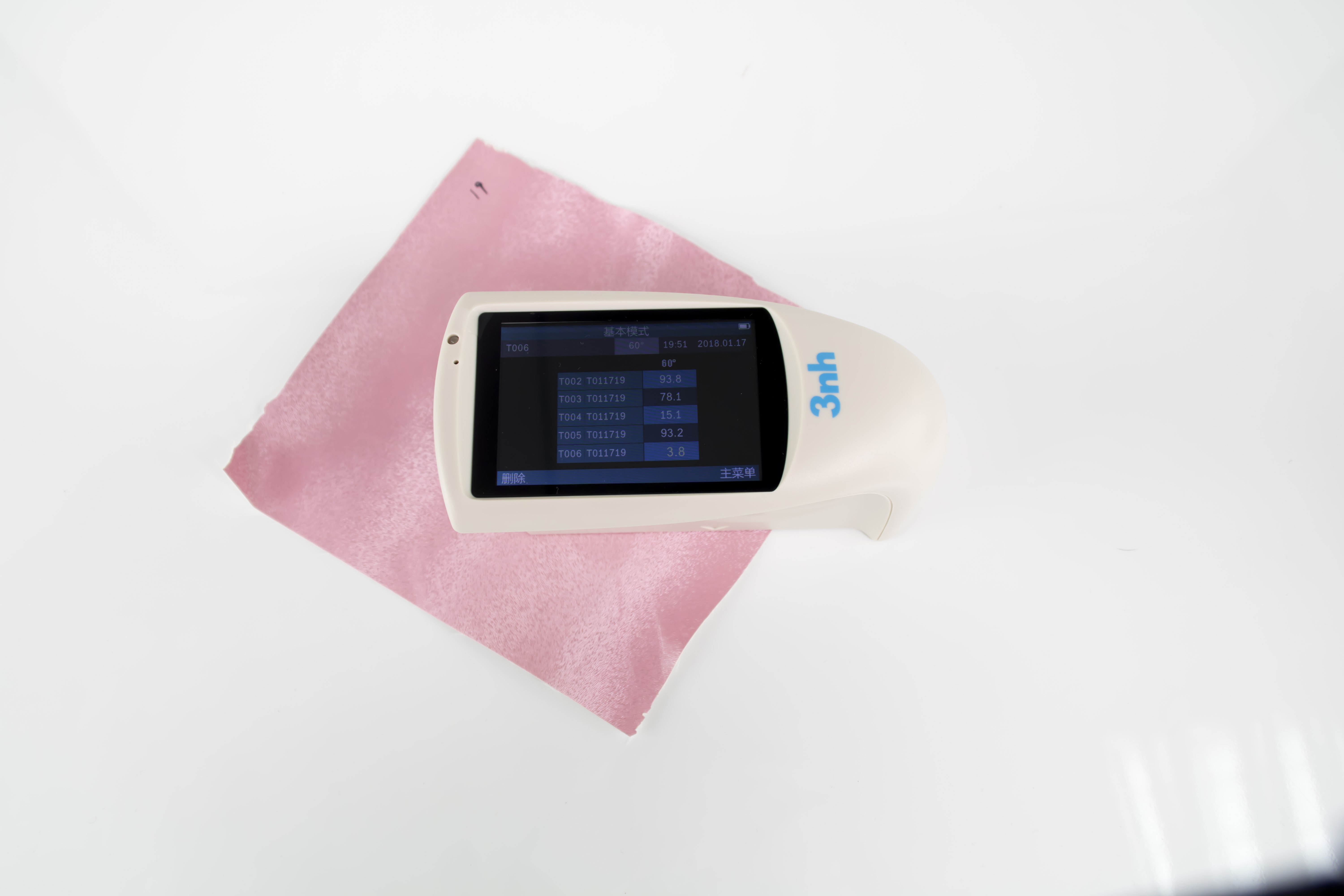

Product detail shows

Our Certificate

FAQ

1: Q: Is your company accept customization?
A: We accept OEM/ ODM. Any color and any logo is welcome if placed at least 10pcs.

2: Q:Does your products have warranty?
A: YES, We offer 1 year warranty. Our policy: Is there any quality problem, First, send the defective machine to us and you bear the freight. Second, we send back to you free after fixed.

3: Q: After an order placed, when to deliver?
A: It depends on whether we are in stock or not. If we are, generally we can arrange shipment in 1 days after payment. If not, it will be decided by factory production.

4: Q: How to place an order?
A: a: send us an inquiry.
b: confirm your wanted products
c: confirm the price and freight and other details
d: finish the payment
e: we arrange the shipment
f: you got your products
