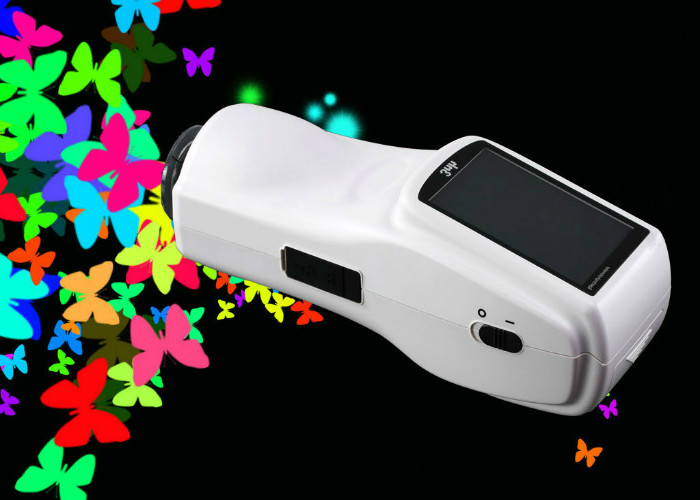

    Cosmetics Paint Matching Spectrophotometer NS810 Color Comparasion Meter With D/8 Accessory

    Ask Lasest Price
    Brand Name : 3nh
    Model Number : NS810
    Certification : CE / ROHS / TUV / ISO9001:2015 / FCC
    Price : Negotiable
    Payment Terms : T/T,Paypal,, Western Union
    Supply Ability : 5000pcs per month
    Delivery Time : 1 working day
    • Product Details
    • Company Profile

    Cosmetics Paint Matching Spectrophotometer NS810 Color Comparasion Meter With D/8 Accessory

    Cosmetics Paint Matching Spectrophotometer NS810 Color Comparasion Meter With D/8 Accessory


    Brief Introduction



    NS810 spectrophotometer is developed by 3nh with independent intellectual property rights. It features with stable performance, precise measurement and powerful functions in the leading position of the same industry.

    In the R&D process, 3nh scientists and engineers measured various color samples from dark to light, white to black, and other standard color boards provided by ISO (International Standardization Organization). The parameters of test results are integrating with international standards.

    3nh also analyzed the parameters from Japan, American and Germany spectrophotometers. The differences of L*ab absolute value between them are within ±1.5. Compared the L*ab value between NS810 and Japan spectrophotometer, when measuring any color objects, the biggest L*ab difference is within ±1.0. This is a breakthrough of 3nh high technology which realizes to be fully compatible with international market.

    Applications



    NS810 spectrophotometer is widely used in plastic, electronic, painting, coating, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories. It can measure reflectance spectrum and other color index precisely. NS810 spectrophotometer not only can help to perform color matching and color management studies, but also can control product quality management accurately. The instrument is equipped with high-end color management software which can connect PC to achieve more extension functions.


    Specifications


    NS810 Precise Spectrophotometer
    Model NumberNS810
    Illuminating/Viewing GeometryD/8° (Diffused illumination, 8 degree viewing angle),
    Conform to the Standard CIE No.15, GB/T 3978.
    Measuring ApertureΦ8mm
    Integrating Sphere DiameterΦ58mm
    Repetitive ErrorSpectral Reflectance: Standard deviation within 0.1%(400~700nm: within 0.2%)
    Colorimetric Value: Standard deviation ΔE*ab≤0.04 (Measurement Conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration performed.)
    Inter-Instruments ErrorΔE*ab≤0.2 (Average value of the measurement results of the 12 tint plates of BCRA series Ⅱ)
    Wavelength Range400~700nm
    Wavelength Pitch10nm
    Reflectance Range0~200%
    Color SpaceCIE LAB, XYZ, Yxy, LCh, CIE LUV, LAB & WI & YI
    Color Difference FormulaΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*cmc(l:c), CIE2000ΔE*00, ΔE(h)
    Display DataSpectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation, Color Index Setting(ΔE*94, ΔE*cmc, ΔE2000), Tolerance Prompt, Reverse Prompt
    Other Chromaticity DataWI(ASTM E313, CIE/ISO, AATCC, Hunter),
    YI(ASTM D1925, ASTM 313),
    TI(ASTM E313, CIE/ISO),
    Metamerism Index (Mt),
    Color Strength, Color Stain, Color Fastness
    Observer Angle2°/10°
    Light Sources TypeD65, D50, A, C, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12
    Light Source DeviceCombined LED Light
    Light Source Life5 years, More than 1.6 million measurements
    SensorSilicon Photoelectric Diode Array
    Measuring Time1.5s
    Data Storage1000 Standards, 15000 Samples
    Data PortUSB&RS232
    Display SizeTFT 3.5"
    Touch-ScreenYes
    Operating Temperature0~40℃(32~104℉)
    Storage Temperature-20~50℃(-4~122℉)
    PC SoftwareSQC8
    Weight600g
    Dimension90*77*230mm
    BatteryLarge Capacity Li-ion Battery
    Standard AccessoryPower Adapter, Li-ion Battery, Operating Instruction, CD-ROM(containing management software), Data Cable, White and Black Calibration Cavity, Protective Cover and Wrist Strap.
    Optional AccessoryUniversal Test Components, Micro Printer, Powder Test Box
    CertificatesCE & RoHS & TUV & FCC & ISO9001
