    High Precision Paint Matching Laboratory Colorimeter NS800 Pain Ink Textile Color difference meter

    Ask Lasest Price
    Brand Name : 3nh
    Model Number : NS800
    Certification : CE / ROHS / TUV / ISO9001:2015
    Price : Negotiable
    Payment Terms : T/T,Paypal,, Western Union
    Supply Ability : 5000pcs per month
    Delivery Time : 1 working day
    • Product Details
    • Company Profile

    High Precision Paint Matching Laboratory Colorimeter NS800 Pain Ink Textile Color difference meter

    High Precision Paint Matching Laboratory Colorimeter NS800 Pain Ink Textile Color difference meter


    Product Features



    1. Aesthetic design perfectly combined with ergonomics structure.
    2. 45/0 geometrical optics structure, comply with CIE, ISO, ASTM, DIN standard.
    3. 3.5 inch large capacitive touch screen.
    4. Two standard observer perspectives, multiple light sources modes, a variety of color systems.
    5. The repeatability ΔE*ab is within 0.04, the errors between each instrument ΔE* ab is less than 0.2.
    6. Large capacity storage, can save more than 10000 data.
    7. PC software with powerful extension functions.
    8. High hardware configuration with a number of innovative technologies.
    9. Oversized integrating sphere, more effective homogenization ray of lights and precise measurement.
    10. 15° oblique angle screen, more in line with the human eye observation.


    Application Industry



    NS800 spectrophotometer is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories. It can measure reflectance spectrum and other color index precisely. NS800 spectrophotometer not only can help to perform color matching and color management studies, but also can control product quality management accurately. The instrument is equipped with high-end color management software which can connect PC to achieve more extension functions.


    Specifications


    ModelNS800
    Illumination/observation system45/0 method (45 ring-shaped illumination, vertical viewing), Comply with CIE No.15,GB/T 3978
    Integrating sphere SizeΦ58mm
    Light Sourcecombined LED sources
    SensorSilicon photodiode array
    Wavelength range400~700nm
    Wavelength interval10nm
    Reflectance range0~200%
    Measuring ApertureΦ8mm
    Color SpaceCIE LAB,XYZ,Yxy,LCh,CIE LUV
    Color difference FormulaΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00
    Other Chromaticity DataWI(ASTM E313,CIE/ISO, AATCC, Hunter), YI(ASTM D1925,ASTM 313), TI(ASTM E313,CIE/ISO), Metamerism Index (Mt), Color Stain, Color Fastness
    Observer2°/10°
    IlluminantD65,A,C,D50,D55,D75,F2,F6,F7,F8,F10,F11,F12
    Display DataSpectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation
    Measurement Time1.5s

    RepeatabilitySpectral Reflectance: standard deviation within 0.1%(400~700nm: within 0.2%)
    Colorimetric ValueStandard deviation within Delta E*ab 0.04 (Measurement conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.)
    Inter Instrument AgreementWithin Delta E*ab 0.2 (Average for 12 BCRA Series II color tiles)
    DimensionL*W*H=90*77*230mm
    Weight600g
    BatteryLi-ion battery. 5000 times within 8 hours
    Lamp Life5 years, more than 1.6 million measurements
    Display ScreenTFT 3.5inch, Capacitive Touch Screen
    InterfaceUSB/RS-232
    Data Memory1000 Standards, 15000 Samples
    Operating Temperature0~40℃(32~104°F)
    Storage temperature-20~50℃(-4~122°F)
    Standard AccessoryPower Adapter, Li-ion Battery, Operating Instruction, CD-ROM (containing management software), Data Line, White and Black Calibration Cavity, Protective Cover and Wrist Strap
    Optional AccessoryMicro Printer, Universal Test Components
    OthersProvide complete spectrum reflectance curve, Input L, a, b value manually
    NotesThe specifications are subject to change without notice

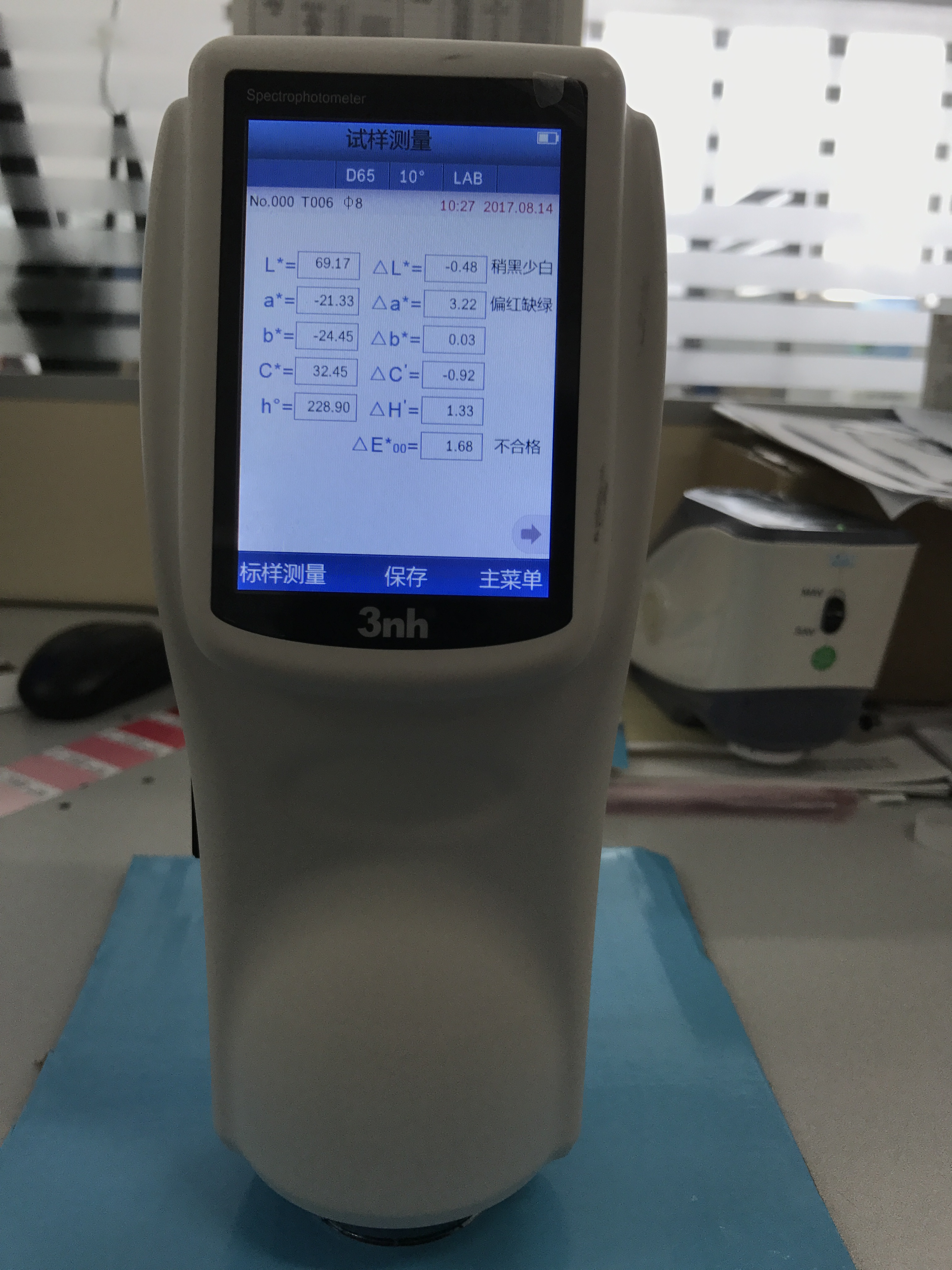

    Product detail shows





    FAQ



    1: Q: Is your company accept customization?
    A: We accept OEM/ ODM. Any color and any logo is welcome if placed at least 10pcs.

    2: Q:Does your products have warranty?
    A: YES, We offer 1 year warranty. Our policy: Is there any quality problem, First, send the defective machine to us and you bear the freight. Second, we send back to you free after fixed.

    3: Q: After an order placed, when to deliver?
    A: It depends on whether we are in stock or not. If we are, generally we can arrange shipment in 1 days after payment. If not, it will be decided by factory production.

    4: Q: How to place an order?
    A: a: send us an inquiry.
    b: confirm your wanted products
    c: confirm the price and freight and other details
    d: finish the payment
    e: we arrange the shipment
    f: you got your products
