Finland Laboratory Portable Spectrophotometer Colorimeter YS3010
for fireproof paint matching
When artists are seeking out a new color to put on a canvas, they
tend to gravitate towards machine mixed paint from manufacturers
they trust. While in many cases, handmade items are in high demand,
in artist-grade oil paint the opposite is true. Machine-mixed
paint, as opposed to hand mixed, offers a far superior result
because the product is thoroughly crushed and combined, and the
color is consistent across the manufacturer’s line of products.
Expert use of technology creates the difference in quality in every
step of the creation process; machine rollers provide an even
texture from the pigment, chromatographers ensure color purity and
emulsifiers thoroughly combine the necessary ingredients, and
spectrophotometers can be used to manage quality control.
Application Industry
3nh Portable Spectrophotometer Colorimeter can easily achieve color transferring , and be used as a precision
instrument for color matching system. It's widely used in plastics,
electronics, painting, ink, textile and garment, printing and
dyeing, printing paper, automotive, medical, cosmetics and food
industries, scientific research institutes, schools and
laboratories.
Specifications
| Model Items | YS3060 | YS3020 | YS3010 |
| Optical Geometry | Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing
angle) |
| Integrating Sphere Size | 48mm |
| Light Source | Combined LED Light, UV Light | Combined LED Light |
| Spectrophotometric Mode | Concave Grating |
| Sensor | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 400-700nm |
| Wavelength Interval | 10nm |
| Semiband Width | 10nm |
| Measured Reflectance Range | 0-200% |
| Measuring Aperture | Dual Aperture: 10mm/8mm & 5mm/4mm | Customized Aperture: 8mm/4mm/1×3mm | Single Aperture: 8mm/10mm |
| Specular Component | SCI&SCE |
| Color Space | CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB |
| Color Difference Formula | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter) |
| Other Colorimetric Index | WI(ASTM E313, CIE/ISO, AATCC, Hunter), |
| YI(ASTM D1925, ASTM 313),TI(ASTM E313, CIE/ISO), |
| Metamerism Index MI, Staining Fastness, Color Fastness, Color
Strength, Opacity, 8° Glossiness |
| Observer Angle | 2°/10° |
| Illuminant | D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10,
F11, F12 | D65, A, C, D50, D55, D75, F2, F7, F11 | D65, A, C, D50 |
| Displayed Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference
Values/Graph, PASS/FAIL Result, Color Offset |
| Measuring Time | 2.6s |
| Repeatability | MAV/SCI: ΔE*≤0.03 | MAV/SCI: ΔE*≤0.05 | MAV/SCI: ΔE*≤0.06 |
| Inter-instrument Error | MAV/SCI: ΔE*≤0.15 | MAV/SCI: ΔE*≤0.2 | MAV/SCI: ΔE*≤0.4 |
| Measurement Mode | Single Measurement, Average Measurement |
| Locating Method | Camera View Finder Locating |
| Battery | Li-ion battery. 5000 measurements within 8 hours |
| Dimension | L*W*H=184*77*105mm |
| Weight | 600g |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display | 3.5-inch TFT color LCD, Capacitive Touch Screen |
| Data Port | USB, Bluetooth 4.0 | USB |
| Data Storage | Standard 2000 Pcs, Sample 20000 Pcs |
| Language | English, Chinese |
| Operating Environment | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m |
| Storage Environment | -20~50℃, 0~85%RH (no condensing) |
| Standard Accessory | Power Adapter, Built-In Li-ion Battery, User Guide, PC Software,
White and Black Calibration Cavity, Dust Cover |

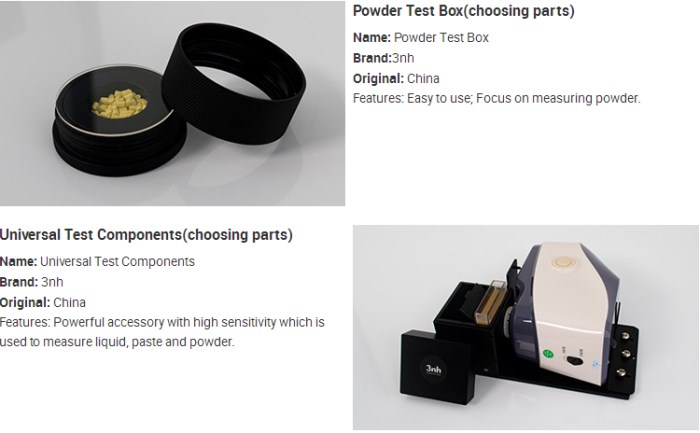

| Optional Accessory | Micro Printer, Powder Test Box |
| Notes: The specifications are subject to change without notice. |
Advantages
A.Perfect combination of beautiful appearance and the human body
mechanics structural design;
B.D/8 geometrical optics, conforms with CIE No.15,GB/T 3978,GB2893,
GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil
C.Use long life and low power consumption combined LED light source
D.Single 8mm aperture, support both SCI and SCE at the same time;
E.Measure sample spectra, accurate Lab data , can be used in color
matching and accurate color transmission;
F.High electronic hardware configuration: 3.5-inch TFT color
LCD,Capacitive Touch Screen, concave grating, 256 Iimage Element
Double Arrays CMOS Image Sensor;
G.USB port, widely useful;
H.Super stain-resistant and stable standard white calibration
plate;
I.Large capacity storage space, over 20,000 measurement data;
J.Two standard observer angles, a variety of illuminant, a variety
of color indexes, conforms with a variety of standard colorimetric
data, meet a variety of customers' demand for color measurement;
K.Camera Locating Function, better position;
L.PC software has a powerful function extension.
Product detail shows
FAQ
1: Q: Is your company accept customization?
A: We accept OEM/ ODM. Any color and any logo is welcome if placed
at least 10pcs.
2: Q:Does your products have warranty?
A: YES, We offer 1 year warranty. Our policy: Is there any quality
problem, First, send the defective machine to us and you bear the
freight. Second, we send back to you free after fixed.
3: Q: After an order placed, when to deliver?
A: It depends on whether we are in stock or not. If we are,
generally we can arrange shipment in 1 days after payment. If not,
it will be decided by factory production.
4: Q: How to place an order?
A: a: send us an inquiry.
b: confirm your wanted products
c: confirm the price and freight and other details
d: finish the payment
e: we arrange the shipment
f: you got your products
